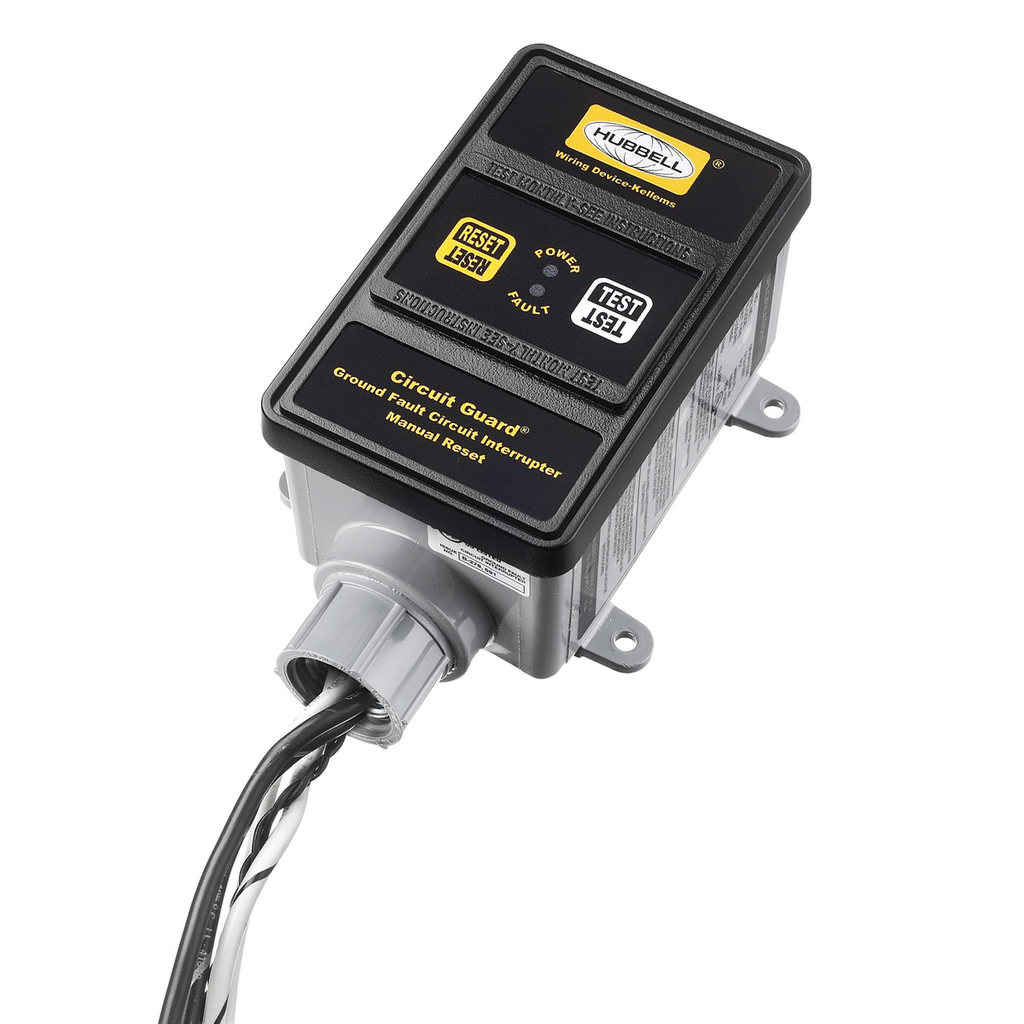

HWDK GFHW23015 HW GFCI, 30A 240V, M
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$514.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFHW23015
North Coast Part # 63871

Features

  • Electromagnetic Latching Mechanism
  • Trips if ground and neutral touch at load side
  • Red blinking light plus optional audible alarm
  • Open neutral protection Trips upon loss of neutral
  • Manual Set- Audible Alarm

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Each - Height: 6.800 in
  • Each - Length: 3.300 in
  • Each - Width: 5.800 in
  • Industry Standard(s): UL Listed
  • Performance: Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC & 120/240V, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Class A GFCI
  • Show Add To ProjectList: Yes
  • Amperage Rating: 30 A
  • Application: Wire Into Circuit
  • Color: Black
  • Conductor Size: #10 AWG
  • Number of Conductors: 3
  • Special Features: Manual Set- Audible Alarm
  • Standard: UL Listed
  • Strands: Multi
  • Temperature Rating: -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
  • Type: Hard Wired, Alarm
  • Voltage Rating: 240 VAC
  • Weight: 1.65 lb
  • Voltage Rating Description: 240 VAC

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358500527
Item Long Description Power Protection Products, Hard Wired GFCI, Industrial/Commercial, Audible Alarm, 30A 240V AC, 4-6 mA Trip Level, Black
GTiN 00783585005270
Length 24 Leads IN
Width 5.800 in
Color Black
Voltage 240 Volt
Type Fabricated, Manual Set, Industrial Grade
Number of Conductors 3
Conductor Size (3) 10 AWG Copper
Product Series Extra Heavy Duty
Applications Wire Into Circuit
Height 6.800 in
Weight 1.65 lb
Temperature Rating -35 to 66 C
Family Brand Name Hubbell Wiring Device Kellems
Insulation Material Thermoplastic
Conductor Material Copper
Construction Fabricated
Housing Material Thermoplastic
Cord Length 24 in
Current 30 A
Blade Dimensions 67.1 mm D
Sub Brand Hard Wired 30A GFCI
Standard UL
