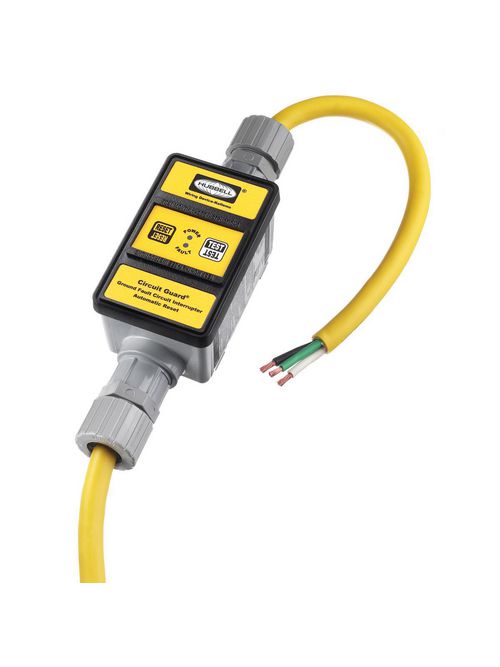

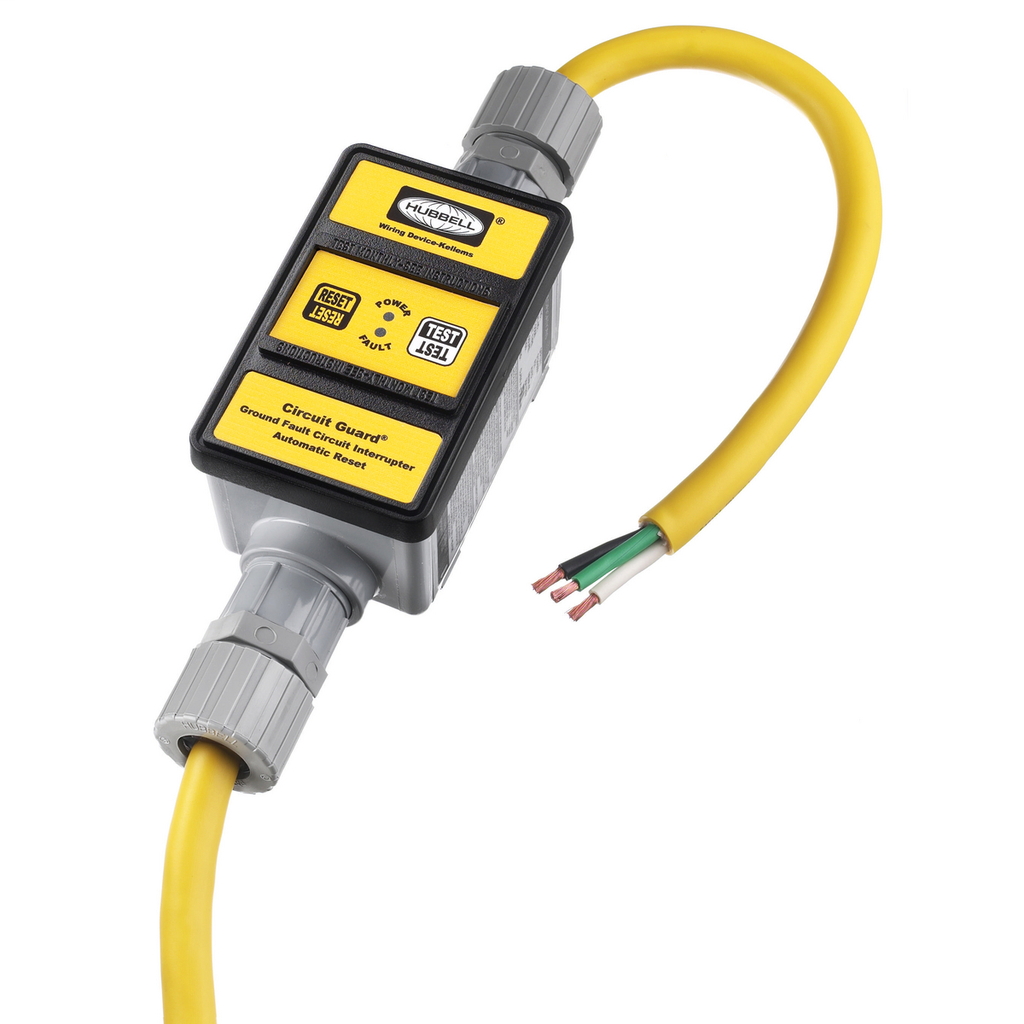

HWDK GFP3315 PORT GFCI, 30A 120/240
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$677.76/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFP3315
North Coast Part # 763348

Features

  • Electromagnetic Latching Mechanism
  • Trips if ground and neutral touch at load side
  • Red blinking light plus optional audible alarm
  • Open neutral protection Trips upon loss of neutral
  • Auto Set

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 30 A
  • Each - Height: 4.800 in
  • Each - Length: 11.500 in
  • Each - Width: 9.100 in
  • Industry Standard(s): UL Listed
  • Performance: Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure;Electrical - Operating Voltage Range - 85% to 110%;Electrical - Rated Voltage - 120V AC, 240V AC, 120/240V AC, 3Ø 250V AC, 3Ø 120/208V AC;Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency;Environmental - Construction - Industrial grade design;Environmental - Housing Rating - UL Type 4X;Environmental - Leakage Current - At 93% Humidity leakage current is zero;Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F.;Environmental - Type - Meets UL943 Class A GFCI
  • Amperage Rating: 30 A
  • Application: Line Cord Only No Devices
  • Color: Yellow
  • Conductor Size: #10 AWG
  • Number of Conductors: 4
  • Outside Diameter: 0.335
  • Special Features: Auto Set
  • Standard: UL Listed
  • Strands: Multi
  • Temperature Rating: -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
  • Type: Portable, Straight Blade
  • Voltage Rating: 120/240 VAC
  • Weight: 4.5 lb
  • Voltage Rating Description: 120/240 VAC

Certifications

  • EU RoHS Indicator: No

Overview

GTiN 00783585521213
Length 11-1/2 Inch
Width 9.100 in
Color Yellow
Voltage 120/240 Volt
Type Portable, Straight Blade
Number of Conductors 4
Conductor Size #10 AWG
Product Series Extra Heavy Duty
Applications Line Cord Only No Devices
Height 4.8 Inch
Weight 4.5 lb
Temperature Rating -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Family Brand Name Hubbell Wiring Device Kellems
Insulation Material Elastomer
Conductor Material Copper
Construction Fabricated
Outside Diameter 0.335
Current 30 A
Jacket Material PVC
Sub Brand Portable 30A GFCI Line Cords
Product UPC 78358552121
Standard UL
Country of Origin USA
