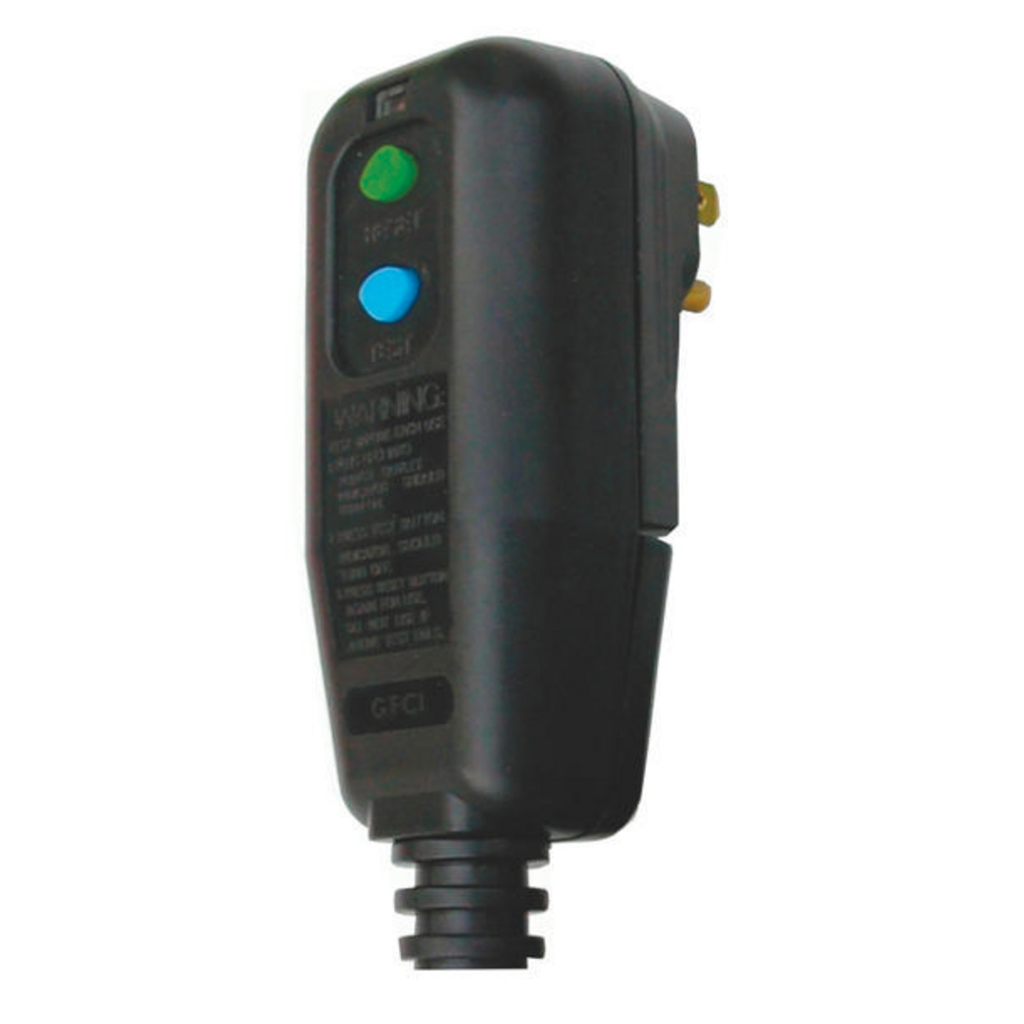

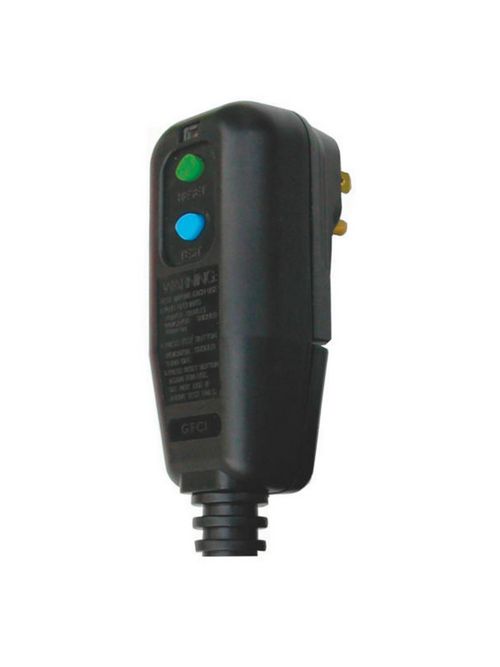

HCI GFP515A GFCI PLUG, COMM, 15A 12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$69.43/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFP515A
North Coast Part # 157052

Features

  • Auto Set

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Each - Height: 2.300 in
  • Each - Length: 4.500 in
  • Each - Width: 4.200 in
  • Industry Standard(s): NEC® And CEC Requirements;UL Listed
  • Show Add To ProjectList: Yes
  • Amperage Rating: 15 A
  • Application: Commercial Grade
  • Color: Black
  • Cord Type: All Portable
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Number of Poles: 2-Pole
  • Number of Wires: 3-Wire Grounding
  • Phase: Single Phase
  • Special Features: Auto Set
  • Standard: NEC® And CEC Requirements; UL Listed
  • Type: Plugs
  • Voltage Rating: 125 V
  • Wattage: 1875
  • Wire Size: #14 AWG to #12 AWG
  • Voltage Rating Description: 125 V

Certifications

  • EU RoHS Indicator: Yes

Categories

Overview

UPC 78358569077
Item Long Description Power Protection Products, GFCI Plugs, Commercial, Auto Set, 15A 120V AC, 5-15R, Plug Only, 4-6 mA Trip Level, Black.
GTiN 00783585690773
Length 4.500 in
Width 4.200 in
Size Standard Sized
Color Yellow
Voltage 125 Volt
Type Automatic, Commercial, Standard Sized
Material Composite
Product Series Heavy Duty
Cord Type Portable
Applications Commercial Grade
Height 2.300 in
Wire Size 14-12 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Conductor Size 14-12 AWG
Mounting Type Cord
Standard CEC,NEC,UL
Environmental Conditions Indoor Dry Unless Protected by Additional Means
