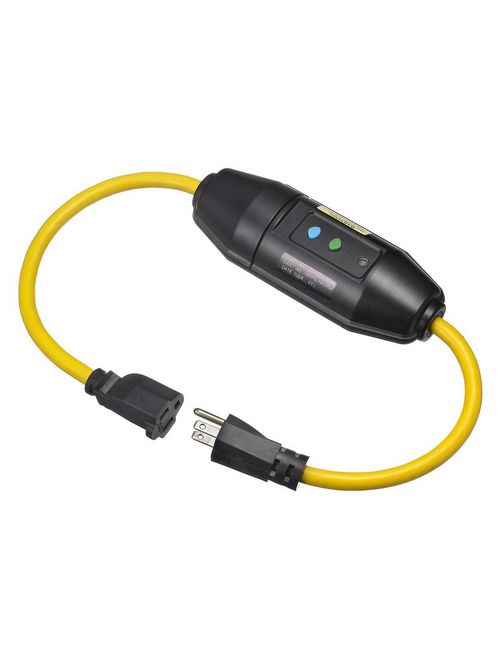

HCI GFPIL15125A 15A/125V INLINE SIN
$88.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFPIL15125A
North Coast Part # 665124

Features

  • High impact UV stabilized housing for long life
  • All-glass circuit board provides moisture immunity
  • Watertight GFCI housing for use in harsh environments

Specifications

General

  • Application: Line Cord with Male/Female Ends
  • Color: Yellow
  • Construction: Fabricated
  • EU RoHS Indicator: Yes
  • Item Type: Straight Blade
  • Material - Insulation: Elastomer
  • Material - Jacket: PVC
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Series: Heavy Duty
  • Style: Automatic Set
  • Temperature Rating: -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
  • Type: Line Cord
  • UPC: 783585692067

Dimensions

  • Outside Diameter: 0.245
  • Weight: 1.15 lb

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Plug-In
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Voltage Rating: 120 VAC
  • Voltage Rating Description: 120 VAC

Conductor Related

  • Conductor Size: #14 AWG
  • Conductor Type: Copper
  • Number Of Conductors: 3
  • Strands: Multi

Certifications and Compliance

  • Industry Standard(s): UL Listed

Categories

Overview

UPC 78358569206
GTiN 00783585692067
Length 2 ft
Color Black/Yellow
Voltage 120 Volt
Type Straight Blade, Automatic, Single Tap
Number of Conductors 3
Conductor Size #14AWG
Product Series Heavy Duty
Applications Line Cord with Male/Female Ends
Height 1.600 in
Weight 1.15 lb
Temperature Rating -34 to 65 C
Family Brand Name Hubbell Wiring Device Kellems
Insulation Material Elastomer
Conductor Material Copper
Construction Fabricated
Outside Diameter 0.245 in
Current 15 A
Jacket Material PVC
Sub Brand GFCI Portable Cordsets
Standard UL
