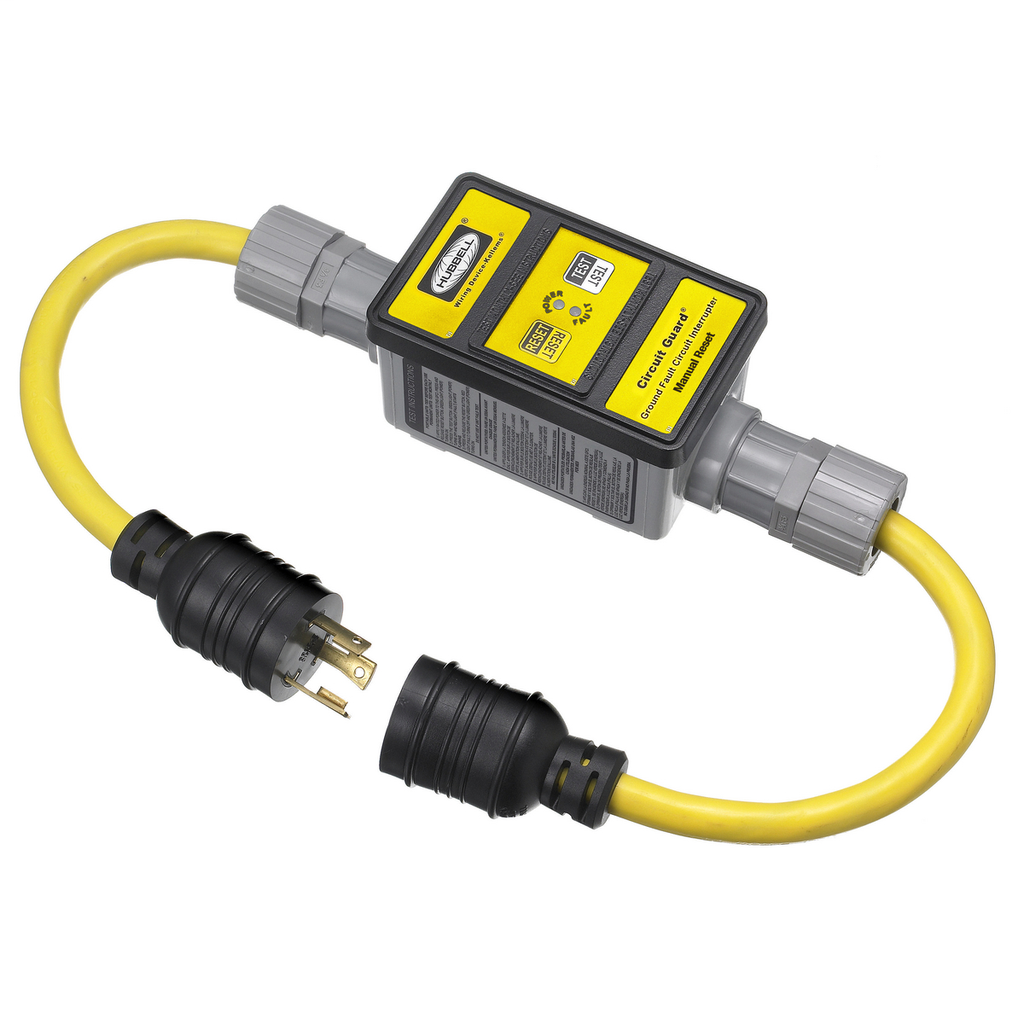

HCI GFPIL30125LKA 30A/125V INLINE L

$317.93/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Application: Line Cord with Devices
Color: Yellow
Construction: Fabricated
EU RoHS Indicator: No
Item Type: Industrial Grade
Material - Insulation: Elastomer
Material - Jacket: PVC
OEM Brand Name: Hubbell Wiring Device-Kellems
Performance: Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure | Electrical - Operating Voltage Range - 85% to 110% | Electrical - Rated Voltage - 120V AC, 240V AC, 120/240V AC, 3Ø 250V AC, 3Ø 120/208V AC | Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency | Environmental - Construction - Industrial grade design | Environmental - Housing Rating - UL Type 4X | Environmental - Leakage Current - At 93% Humidity leakage current is zero | Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F. | Environmental - Type - Meets UL943 Class A GFCI
Series: Extra Heavy Duty
Style: Automatic Set
Temperature Rating: -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Type: Portable, Locking
UPC: 783585692142

UPC	78358569214
GTiN	00783585692142
Length	2 ft
Color	Yellow
Voltage	120 Volt
Type	Portable, Locking
Number of Conductors	3
Conductor Size	#10 AWG
Product Series	Extra Heavy Duty
Applications	Line Cord with Devices
Height	2.700 in
Weight	2.25 lb
Temperature Rating	-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Family Brand Name	Hubbell Wiring Device Kellems
Insulation Material	Elastomer
Conductor Material	Copper
Construction	Fabricated
Outside Diameter	0.335
Current	30 A
Jacket Material	PVC
Sub Brand	Portable 30A GFCI Line Cords
Standard	UL
