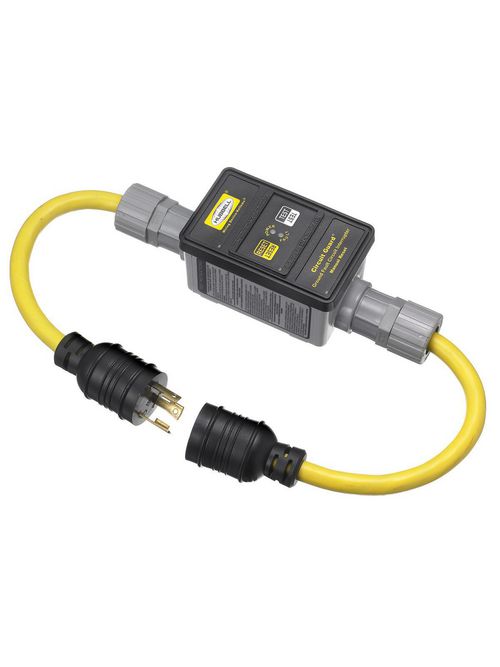

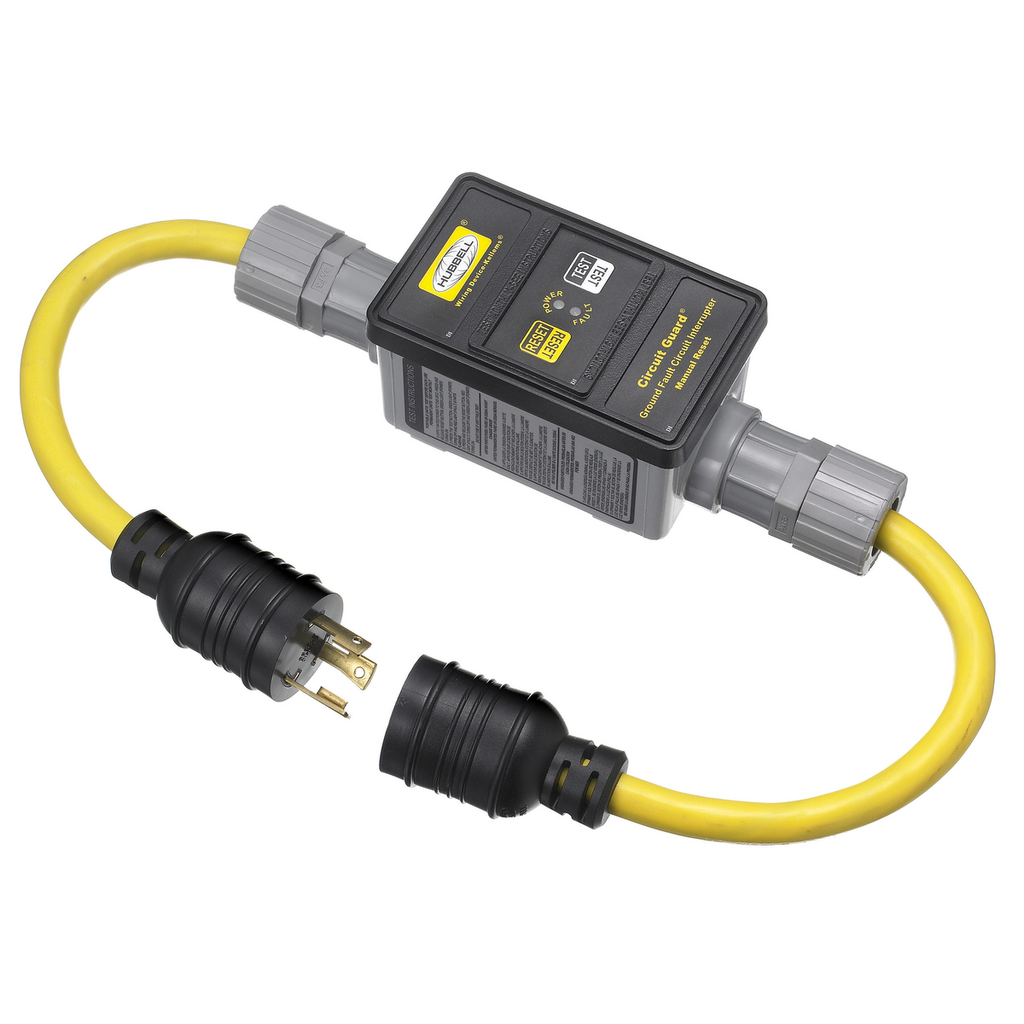

HWDK GFPIL30125LKM 30A/125V INLINE
$317.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFPIL30125LKM
North Coast Part # 1498718

Features

  • Electromagnetic Latching Mechanism
  • Trips if ground and neutral touch at load side
  • Red blinking light plus optional audible alarm
  • Open neutral protection Trips upon loss of neutral

Specifications

General

  • Application: Line Cord with Devices
  • Color: Yellow
  • Construction: Fabricated
  • EU RoHS Indicator: No
  • Item Type: Industrial Grade
  • Material - Insulation: Elastomer
  • Material - Jacket: PVC
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Dielectric Withstand - 1500 VRMS across contact, 4000 VRMS between conductors & enclosure | Electrical - Operating Voltage Range - 85% to 110% | Electrical - Rated Voltage - 120V AC, 240V AC, 120/240V AC, 3Ø 250V AC, 3Ø 120/208V AC | Electrical - Surge Withstand - 6000V impulse, 0.5 ms rise time 100kHz ringing frequency | Environmental - Construction - Industrial grade design | Environmental - Housing Rating - UL Type 4X | Environmental - Leakage Current - At 93% Humidity leakage current is zero | Environmental - Operating Temperature - -35°C to 66°C, -30°F to 150°F. | Environmental - Type - Meets UL943 Class A GFCI
  • Series: Extra Heavy Duty
  • Style: Manual Set
  • Temperature Rating: -35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
  • Type: Portable, Locking
  • UPC: 783585692159

Dimensions

  • Outside Diameter: 0.335
  • Weight: 2.25 lb

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Plug-In
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Voltage Rating: 120 VAC
  • Voltage Rating Description: 120 VAC

Conductor Related

  • Conductor Size: #10 AWG
  • Conductor Type: Copper
  • Number Of Conductors: 3
  • Strands: Multi

Certifications and Compliance

  • Industry Standard(s): UL Listed
  • Nema Rating: L5-30

Overview

UPC 78358569215
GTiN 00783585692159
Length 2 ft
Color Yellow and Black
Voltage 120 Volt
Type Locking, Manual, Industrial Grade
Number of Conductors 3
Conductor Size #10AWG
Product Series Extra Heavy Duty
Applications Line Cord with Devices
Height 2.700 in
Weight 2.25 lb
Temperature Rating -35 to 66 C
Family Brand Name Hubbell Wiring Device Kellems
Insulation Material Elastomer
Conductor Material Copper
Construction Fabricated
Outside Diameter 0.335 in
Current 30 A
Jacket Material PVC
Sub Brand Portable 30A GFCI Line Cords
Standard UL
