HUBW GFR8300HOWLA 20A 125V COM HOSPLED GFCI, OW
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$67.47/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFR8300HOWLA
North Coast Part # 494542

Specifications

  • Receptacle Grade: Hospital Grade
  • Terminal Accommodations: #14 -10 AWG stranded or solid copper conductors only.
  • Amperage: 20A
  • Color: officewhite
  • Amperage Range: 15A/20A, 20 Amps Feed Thru
  • Voltage: 125V AC
  • Weight in LBs: 0.35
  • Max Interrupting Capacity: AUTOGUARD- 10,000 Amps
  • Operating Temp: Deg F -30 to 150 (Deg C -30 to 66)
  • Max Humidity: 0.95
  • GFCI Product Type: receptacles
  • Packaging: Single
  • Codes and Standards: Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886
  • Receptacle Version: LED Indicator Series Receptacle
  • Trip Time: 0.025 seconds
  • Trip Level: 4-6 mA
  • Frequency: 60Hz
  • Voltage Range: 120V AC +10% -15%
  • Note:: GFCI Receptacles should not be used in critical care patient areas or for electrical life support equipment.

NEMA Configuration

Color

GFCI Product Type

Product Drawings / Installation Instructions

Drawings

Product

Overview

UPC 78358511471

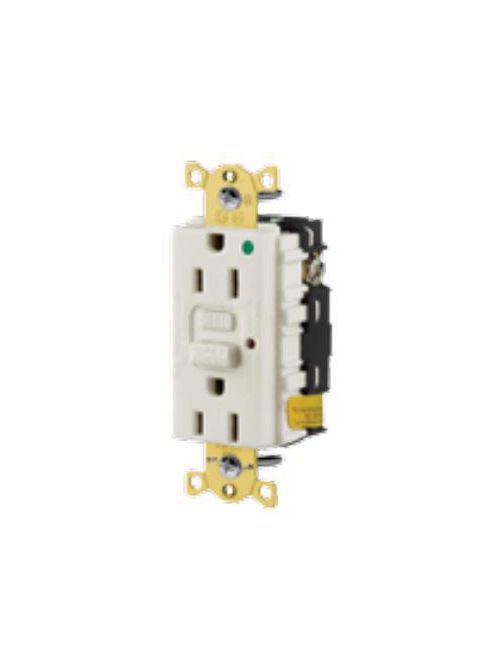

Item Long Description Circuit Guard Commercial hospital grade GFCI duplex receptacle with LED indicator. Flush thermoplastic face, 2P 3W, back and side wired. Matching wall plate included.
Color Office White
Operating Temperature -30 To 150 F
Voltage 125 Volt
Grade Hospital Grade
Weight 0.35 lb
Frequency 60 Hz
Family Brand Name Hubbell
Amperage 20 Amp
