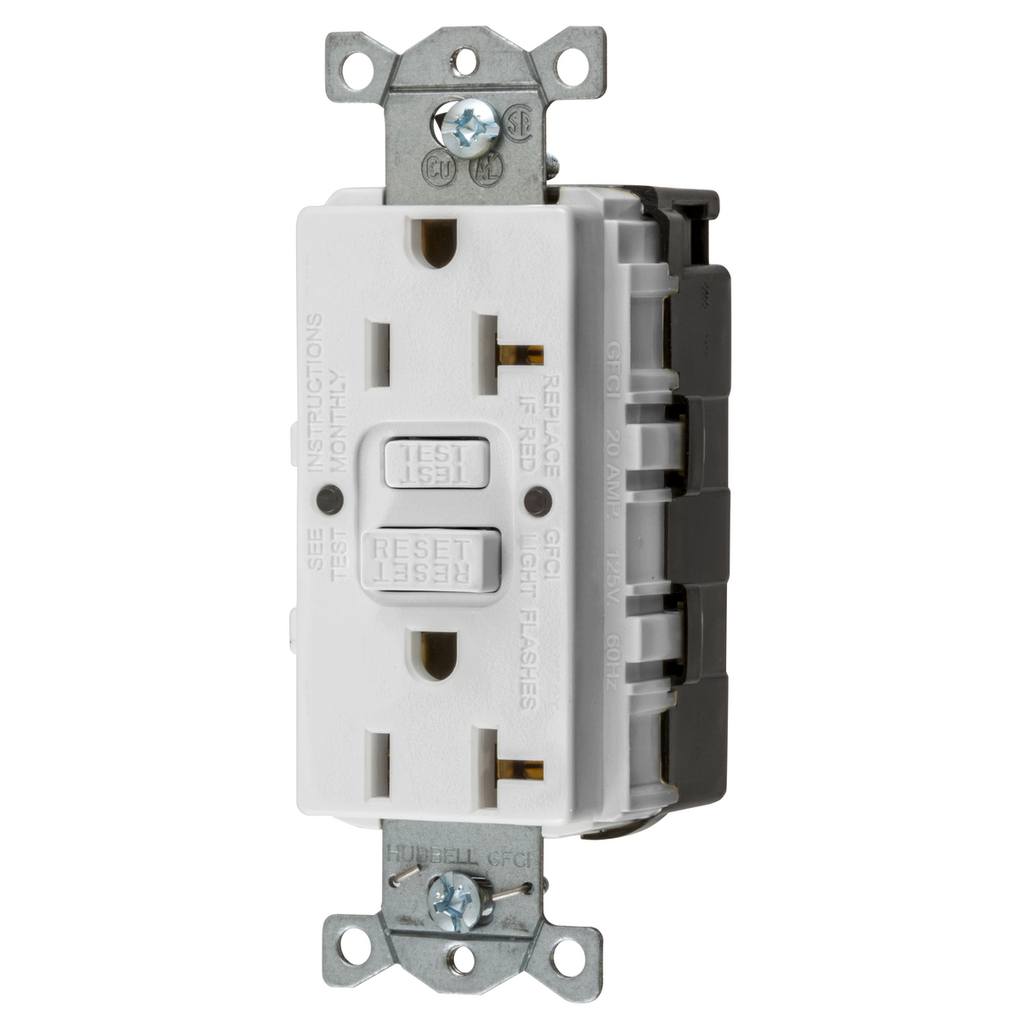

Hubbell Wiring Devices GFRST20SNAPW 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R White GFCI Receptacle
$28.07/ea
In Stock | 81 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFRST20SNAPW
North Coast Part # 1162074

Features

  • Audible SNAP, indicates solid connection
  • Patented shutter design for tamper-resistant
  • Compliant with NEC® 406.12 and NEC® 517-18(c)
  • Patented AUTOGUARD® self test technology
  • Triple wipe construction

Specifications

General

  • Application: Commercial Grade
  • Color: White
  • EU RoHS Indicator: Contact Manufacturer
  • Horsepower - Maximum: 1
  • Item Type: Style Line GFCI Receptacle
  • Material: Nylon
  • Series: Heavy Duty
  • Style: Standard
  • Type: Standard
  • UPC: 883778124570

Dimensions

  • Dimensions: 3.28 in x 1.77 in x 1.47 in
  • Height: 1.47 in
  • Length: 3.28 in
  • Width: 1.77 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Meets All NEC® Requirements
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377812457
GTiN 00883778124570
Length 3.28 in
Width 1.77 in
Size 3.28 in x 1.77 in x 1.47 in
Color White
Voltage 125 Volt
Type Self-Test
Material Thermoplastic
Conductor Size 12 AWG
Product Series Heavy Duty
Applications GFCI Protection
Mounting Type Screw
Height 1.47 in
Grade Commercial
Wire Size 12 AWG
Connection Type Pre-Wired
Wattage 2500 Watt
Temperature Rating -40 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pre-Wired Connector
Dielectric Strength 1500 V
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand SnapConnect
Standard NEC
Environmental Conditions Dry Indoors unless Protected by Additional Means
