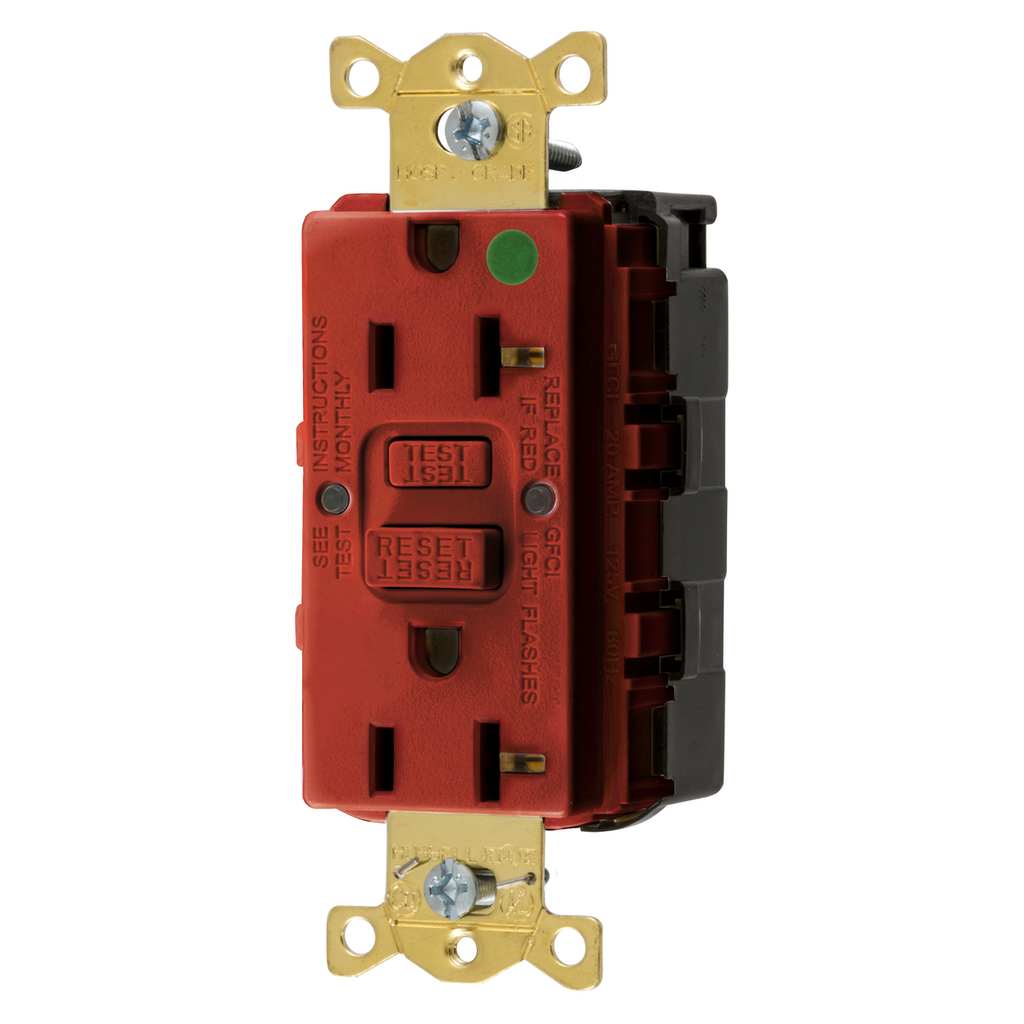

HWDK GFRST83SNAPR 20A COMM HG SELF
$82.40/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFRST83SNAPR
North Coast Part # 1166413

Features

  • Audible SNAP, indicates solid connection
  • Patented shutter design for tamper-resistant
  • Compliant with NEC® 406.12 and NEC® 517-18(c)
  • Patented AUTOGUARD® self test technology
  • Triple wipe construction

Specifications

General

  • Application: Commercial Hospital Grade
  • Color: Red
  • EU RoHS Indicator: Contact Manufacturer
  • Horsepower - Maximum: 1
  • Item Type: Self test GFCI receptacle
  • Material: Nylon
  • Series: Hospital Grade
  • Style: Standard
  • Type: Standard
  • UPC: 783585486369

Dimensions

  • Dimensions: 3.28 in x 1.77 in x 1.47 in
  • Height: 1.47 in
  • Length: 3.28 in
  • Width: 1.77 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Meets All NEC® Requirements
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358548636
GTiN 00783585486369
Length 3.28 in
Width 1.77 in
Size Standard
Color Red
Voltage 125 Volt
Type Decorator, Tamper and Weather Resistant
Material Nylon
Product Series Hospital Grade
Applications For Commercial Use
Height 1.47 in
Wire Size 12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Connectorized
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand SnapConnect
Conductor Size 14-12 AWG
Mounting Type Screw
Grade Hospital
Standard NEC
Connection Type Connectorized
Grounding Self
Environmental Conditions Indoor Dry unless protected by additional means
