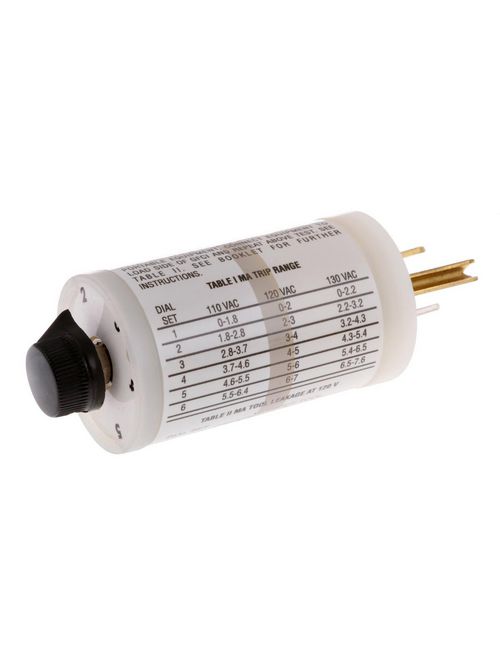

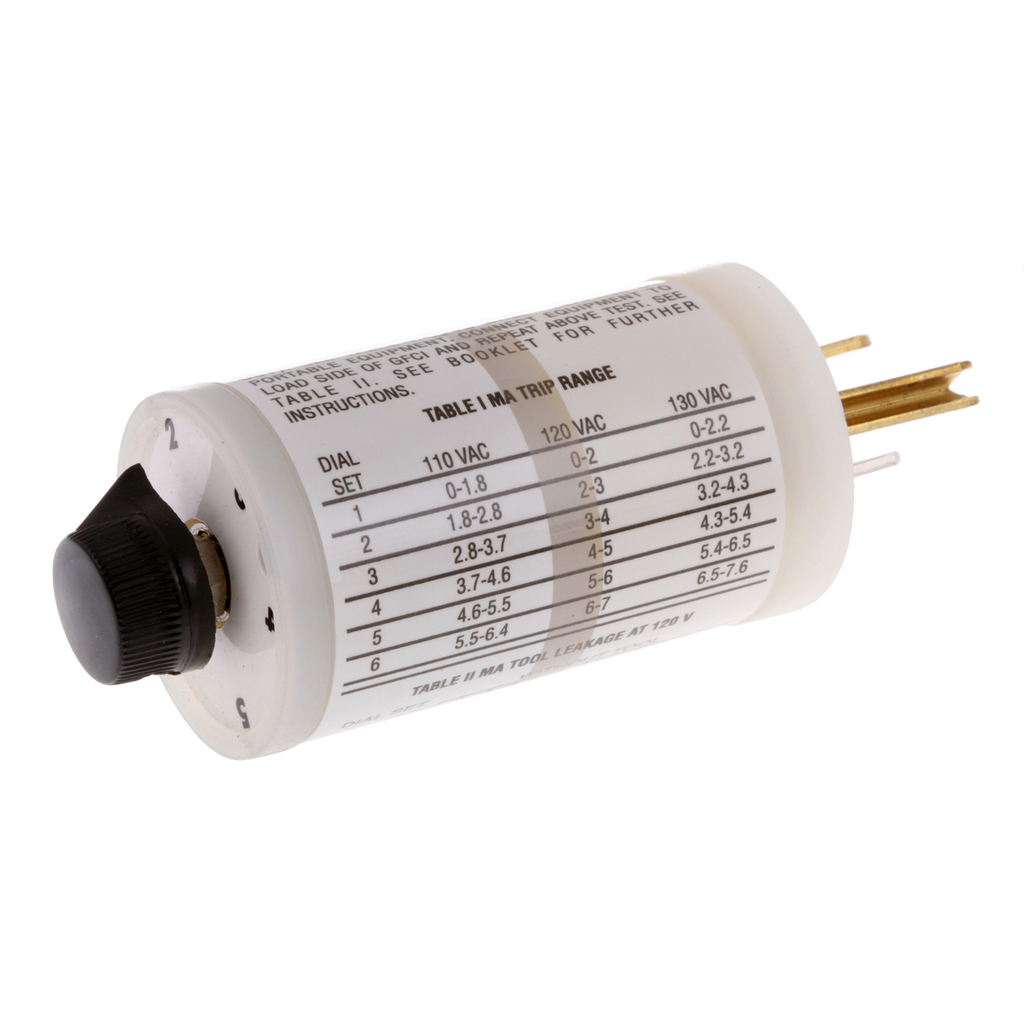

Hubbell Wiring Devices GFT2G 120 VAC GFI Tester
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$216.97/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFT2G
North Coast Part # 10222

Features

  • Designed to measure the trip level of portable or “wired-in” GFCI’s in a range of 2-7mA. Leakage level can be adjusted from 2-7mA
  • Ideal for measuring leakage level of GFCI breakers, GFCI portables and GFCI receptacles

Specifications

General

  • Application: Commercial Grade
  • Color: White
  • EU RoHS Indicator: No
  • Enclosure Type: Plug Body
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Item Type: Decorator Duplex
  • Material: Thermoplastic
  • Material - Mounting Hardware: Plug-In
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Series: Heavy Duty
  • Type: GFCI Tester
  • UPC: 783585690421

Dimensions

  • Dimensions: 1.97" x 1.53" (50.0 x 38.9)
  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Plug-In
  • Current / Amperage Rating: 20 A
  • Current Rating: 15 A
  • Load Current: 5-15P Interface
  • Phase: Single Phase
  • Voltage Rating: 120 VAC
  • Voltage Rating Description: 120 VAC

Conductor Related

  • Number Of Wires: 3-Wire Grounding

Certifications and Compliance

  • Industry Standard(s): NEC® And CEC Requirements | UL Listed

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 78358569042
GTiN 00783585690421
Length 3.978 in
Width 2.418 in
Size Standard Sized Product
Color White
Voltage 120 Volt
Type Plug-In, Commercial Grade, 2-Pole, Heavy Duty, 3-Wire
Material Thermoplastic
Product Series Heavy Duty
Applications Ideal for Measuring Leakage Level of GFCI Breakers, GFCI Portables and GFCI Receptacles
Height 2.418 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Plug-In
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Circuit Guard
Standard NEC,CEC,UL
Blade Dimensions 1.97 x 1.53 in
