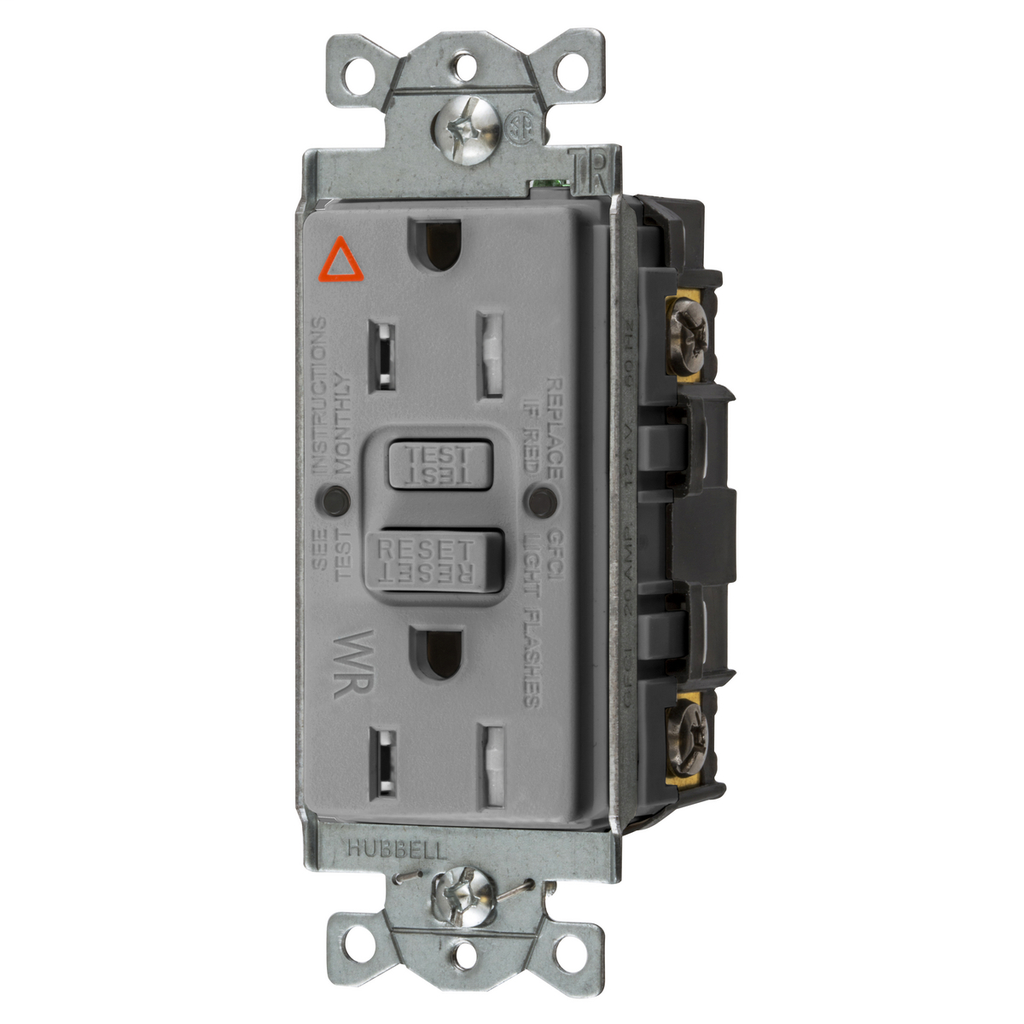

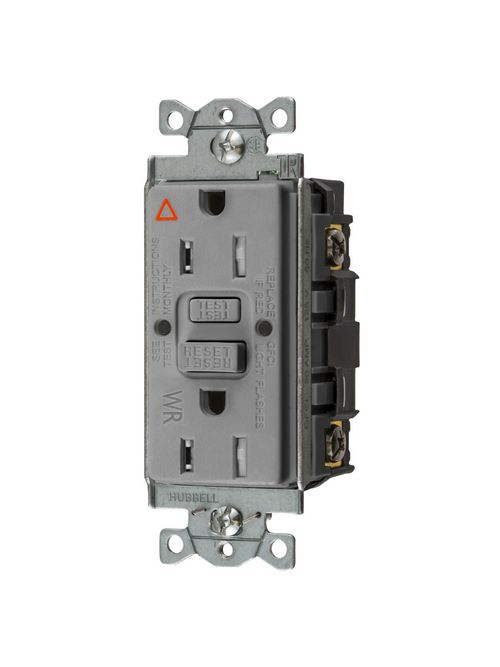

HCI GFTWRST15GYIG 15A COM SELF TEST
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$43.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFTWRST15GYIG
North Coast Part # 1888959

Features

  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARDĀ® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired

Specifications

General

  • Color: Gray
  • EU RoHS Indicator: Contact Manufacturer
  • Series: Heavy Duty
  • Style: Isolated Ground
  • Type: Tamper-Resistant, Weather Resistant
  • UPC: 883778122743

Electrical Ratings

  • Amperage Rating: 15 A
  • Current / Amperage Rating: 15 A
  • Voltage Rating Description: 125 V

Certifications and Compliance

  • Industry Standard(s): Meets All NECĀ® Requirements
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 88377812274
GTiN 00883778122743
Length 5.048 in
Width 2.048 in
Size Standard
Color Gray
Type Decorator, Tamper and Weather Resistant
Material Thermoplastic
Product Series Heavy Duty
Applications Commercial Grade
Height 7.044 in
Wire Size 14-12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade GFCI Receptacles
Conductor Size 14-12 AWG
Mounting Type Screw
Standard NEC
Grounding Isolated Ground
Voltage null
Environmental Conditions Indoor Dry unless protected by additional means
