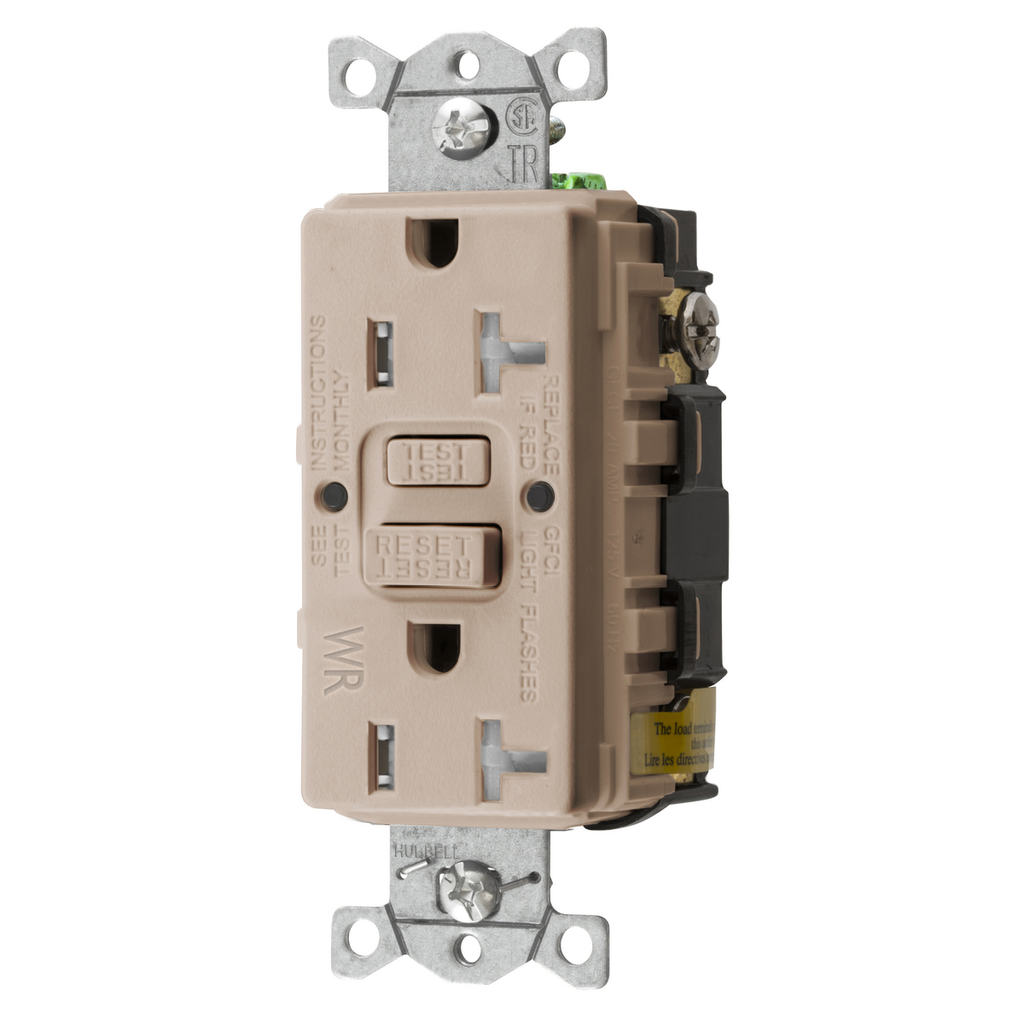

HCI GFTWRST20AL 20A COM SELF TEST T
$24.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFTWRST20AL
North Coast Part # 1759897

Features

  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired

Specifications

General

  • Color: Almond
  • EU RoHS Indicator: Contact Manufacturer
  • Series: Heavy Duty
  • Style: Standard
  • Type: Tamper-Resistant, Weather Resistant
  • UPC: 883778122644

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Voltage Rating Description: 125 V

Certifications and Compliance

  • Industry Standard(s): Meets All NEC® Requirements
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 88377812264
GTiN 00883778122644
Length 5.048 in
Width 2.048 in
Size Standard
Color Almond
Type Decorator, Tamper and Weather Resistant
Product Series Heavy Duty
Applications Commercial Grade
Height 7.044 in
Wire Size 14-12 AWG
Wattage 2500 Watt
Temperature Rating -40 to 70 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Conductor Size 14-12 AWG
Mounting Type Screw
Standard NEC
Voltage null
