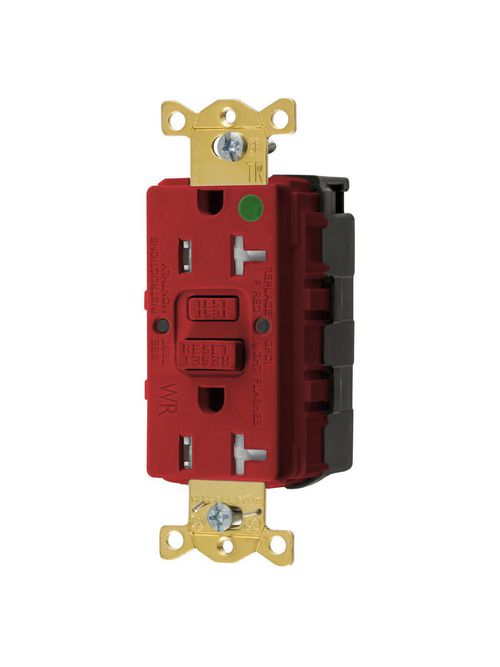

HCI GFTWRST83SNAPR 20A COM HG SELF
Product image thumbnail 0
Product image thumbnail 1
$88.43/ea
In Stock | 23 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFTWRST83SNAPR
North Coast Part # 1166657

Features

  • Audible SNAP, indicates solid connection
  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired

Specifications

General

  • Application: Commercial Hospital Grade
  • Color: Red
  • Environmental Conditions: Weather Resistant
  • Horsepower - Maximum: 1
  • Item Type: Self test GFCI receptacle
  • Material: Nylon
  • Series: Hospital Grade
  • Style: Standard
  • Type: Tamper-Resistant, Weather Resistant
  • UPC: 783585486529

Dimensions

  • Dimensions: 3.28 in x 1.77 in x 1.47 in
  • Height: 1.47 in
  • Length: 3.28 in
  • Width: 1.77 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Phase: Single Phase
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related

  • Wire Size: #12 AWG

Certifications and Compliance

  • Industry Standard(s): Meets All NEC® Requirements
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358548652
GTiN 00783585486529
Length 3.28 in
Width 1.77 in
Size Standard
Color Red
Voltage 125 Volt
Type Decorator, Tamper and Weather Resistant
Material Nylon
Product Series Hospital Grade
Applications For Commercial Use
Height 1.47 in
Wire Size 12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Connectorized
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand SnapConnect
Conductor Size 14-12 AWG
Mounting Type Screw
Grade Hospital
Standard NEC
Connection Type Connectorized
Grounding Self
Environmental Conditions Weather Resistant
