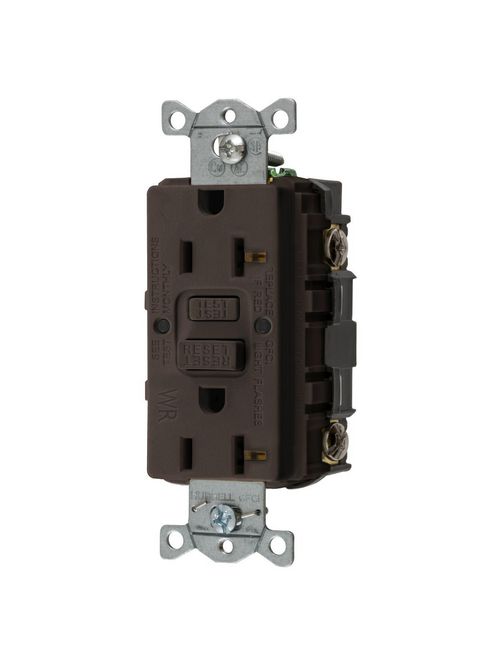

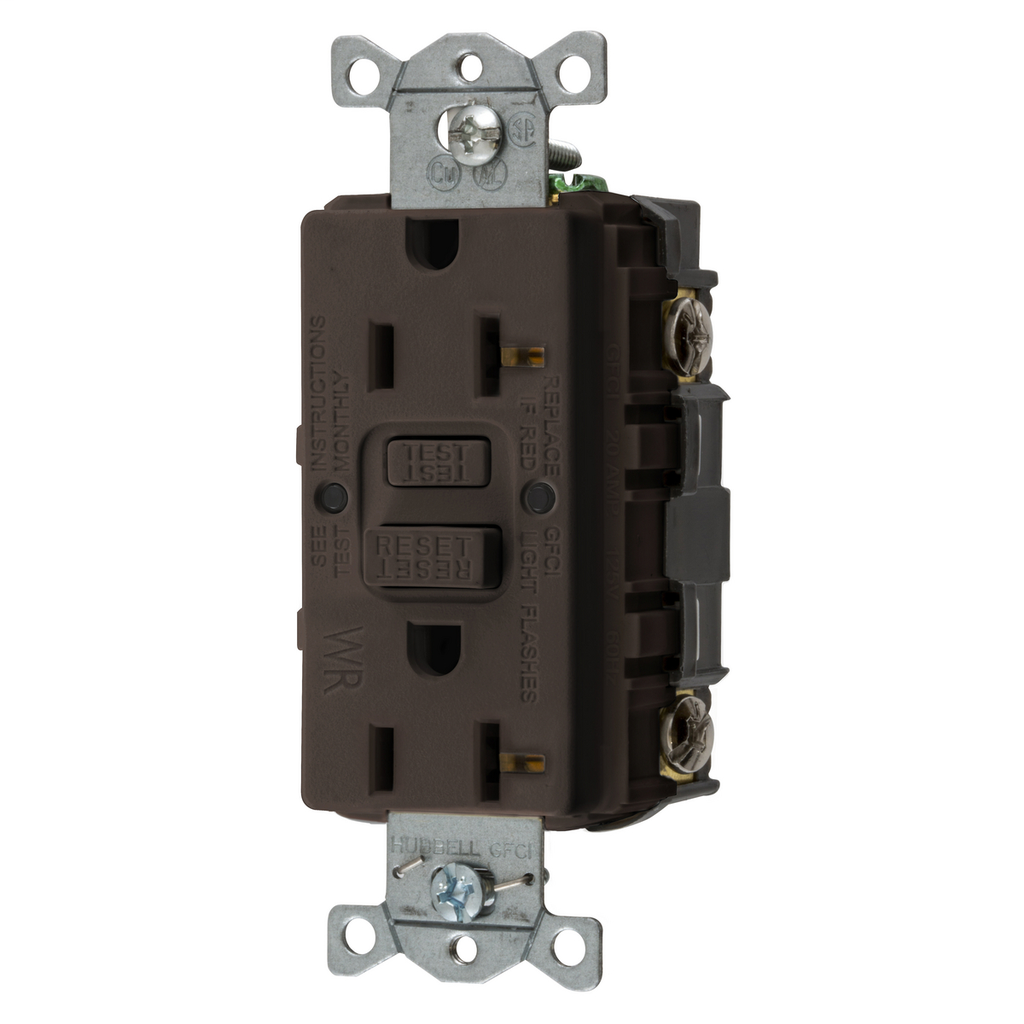

HWDK GFWRST20 20A COMM SELF TEST WR
$26.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # GFWRST20
North Coast Part # 1159117

Features

  • Patented AUTOGUARD® self test technology
  • Meets NEC requirements for weather resistance (406.9), UV and corrosion resistance for harsh and damp applications
  • Protects against line and load reversal, no power to the face or downstream if device is miswired

Specifications

General

  • Color: Brown
  • EU RoHS Indicator: Contact Manufacturer
  • Series: Heavy Duty
  • Style: Standard
  • Type: Weather Resistant
  • UPC: 883778122521

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Voltage Rating Description: 125 V

Certifications and Compliance

  • Industry Standard(s): Meets All NEC® Requirements
  • Nema Rating: 5-20R

Logistics

  • Carton Quantity: 10

Categories

Overview

UPC 88377812252
GTiN 00883778122521
Length 5.048 in
Width 2.048 in
Size Standard
Color Brown
Type Decorator, Weather Resistant
Material Thermoplastic
Product Series Heavy Duty
Applications Commercial Grade
Height 7.044 in
Wire Size 14-12 AWG
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade GFCI Receptacles
Conductor Size 14-12 AWG
Mounting Type Screw
Standard NEC
Dielectric Strength 1500 V
Voltage null
