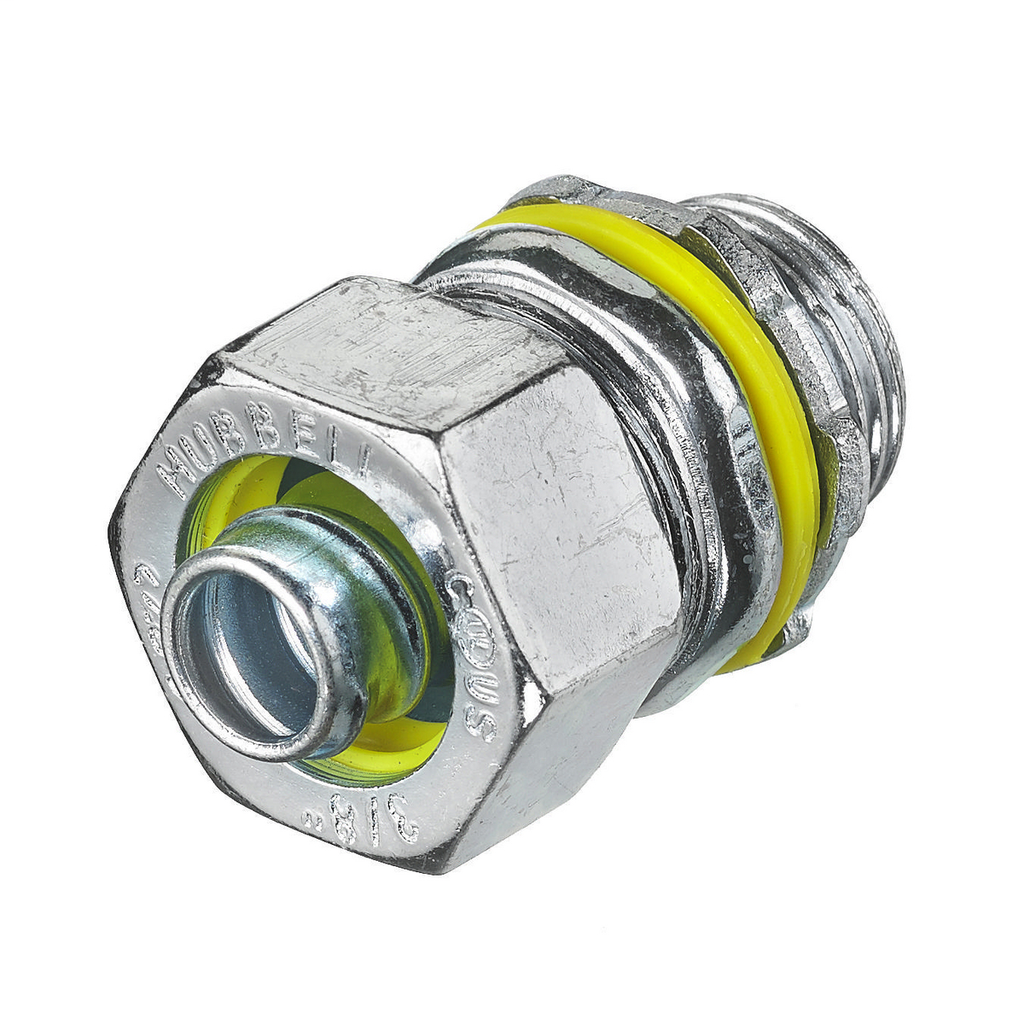

HCI H038 STR MALE L/T CONN, 3/8", S
$4.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # H038
North Coast Part # 602703

Features

  • Hexagonal nut compresses gland-ring onto conduit
  • Nylon gasket provides liquidtight seal at hub
  • Non-integral steel ferrule seals conduit

Specifications

General

  • Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
  • Material: Steel, Zinc Plated
  • Performance: Environmental - Operating Temperature - –60°F to +1000°F (–51°C to +538°C) | Environmental - Hazardous Locations - NEC Reference -Class I, Div. 2 - 501-10(A)(3)B, Class II, Div. 1 - 502-10(A)(2), Class II, Div. 2 - 502-10(A)(3), Class III, Div. 1 - 503-10(A)(2), Class III, Div. 2 - 503-10(B)
  • Style: Straight
  • Type: Metallic Liquidtight Fittings
  • UPC: 783585034010

Dimensions

  • Dimension - L Length Overall mm: 1.437 in
  • Dimension - Thread Size: 1/2"-14 NPT
  • Dimension - Width mm: 1.062 in
  • Trade Size: 3/8

Certifications and Compliance

  • Industry Standard(s): CSA Certified | UL 514B

Logistics

  • Carton Quantity: 25

Overview

UPC 78358503401
GTiN 00783585034010
Length 0.900 in
Finish Metallic
Width 0.900 in
Size 3/8 in
Type Metallic Liquidtight Fittings
Material Steel,Zinc Plated
Applications For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
Height 1.700 in
Temperature Rating -40 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Cap Nut
Sub Brand Kellems Wire Management
Standard CSA,UL 514B
Color Metallic
Environmental Conditions Suitable for use in wet locations when a listed sealing ring is used between box and fitting
