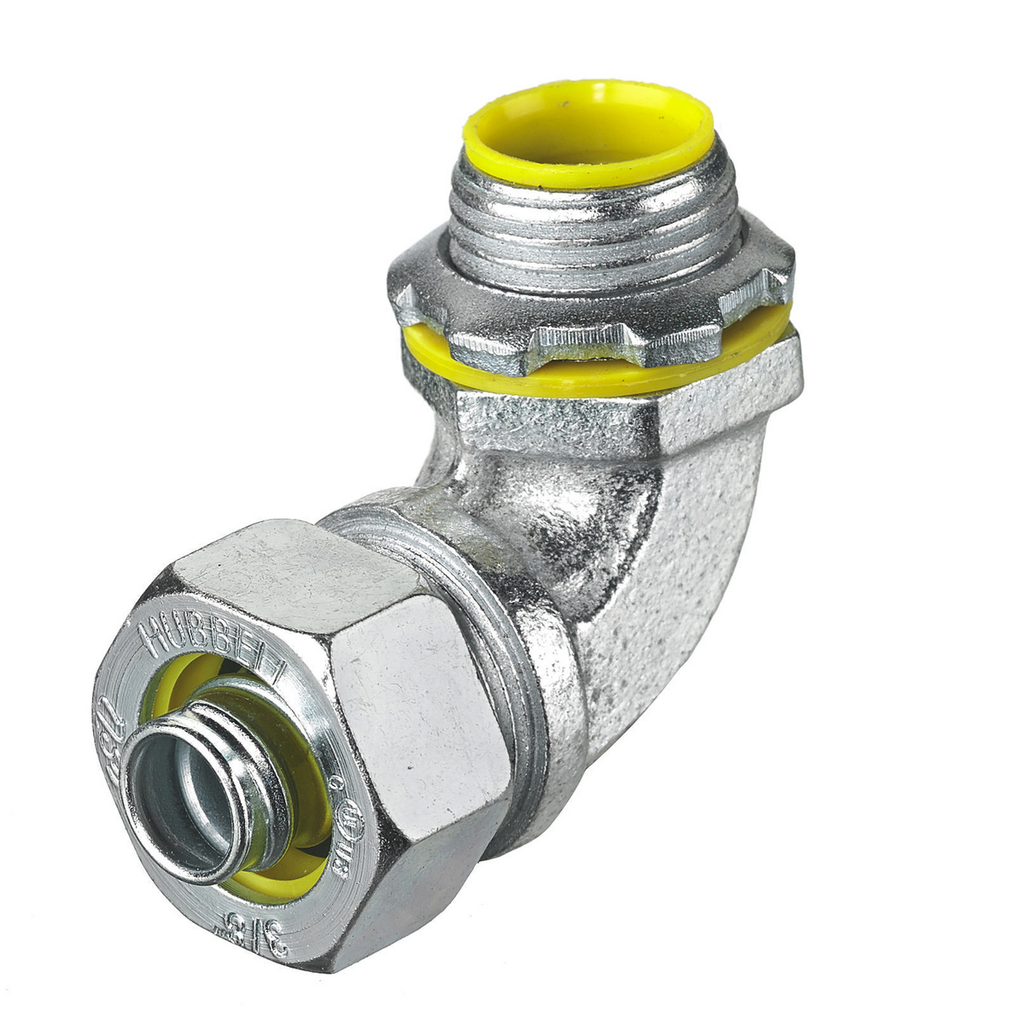

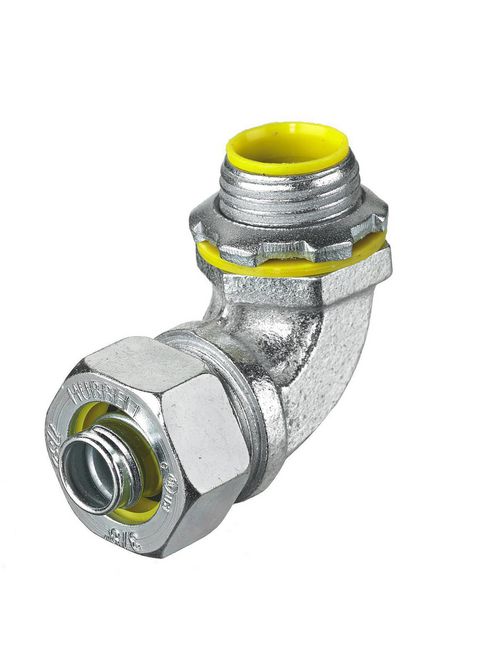

HWDK H03891 90 DEG MALE L/T CONN, 3
Product image thumbnail 0
Product image thumbnail 1
$8.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # H03891
North Coast Part # 602705

Features

  • Hexagonal nut compresses gland-ring onto conduit
  • Nylon gasket provides liquidtight seal at hub
  • Non-integral steel ferrule seals conduit

Specifications

General

  • Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
  • Material: Iron, Zinc Plated
  • Performance: Environmental - Operating Temperature - –60°F to +1000°F (–51°C to +538°C) | Environmental - Hazardous Locations - NEC Reference -Class I, Div. 2 - 501-10(A)(3)B, Class II, Div. 1 - 502-10(A)(2), Class II, Div. 2 - 502-10(A)(3), Class III, Div. 1 - 503-10(A)(2), Class III, Div. 2 - 503-10(B)
  • Style: 90°
  • Type: Metallic Liquidtight Fittings
  • UPC: 783585035413

Dimensions

  • Dimension - Thread Size: 1/2"-14 NPT
  • Dimension - Width mm: 1.062 in
  • Trade Size: 3/8

Certifications and Compliance

  • Industry Standard(s): CSA Certified | UL 514B

Logistics

  • Carton Quantity: 25

Overview

UPC 78358503541
GTiN 00783585035413
Length 2.000 in
Finish Metallic
Width 2.000 in
Size 3/8 in
Type 90, Male, Insulated
Material Steel
Applications For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
Height 6.800 in
Trade Size 3/8 Inch
Temperature Rating -40 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Cap Nut
Sub Brand Kellems Wire Management
Standard CSA,UL 514B
Color Metallic
Environmental Conditions Suitable for use in wet locations when a listed sealing ring is used between box and fitting
