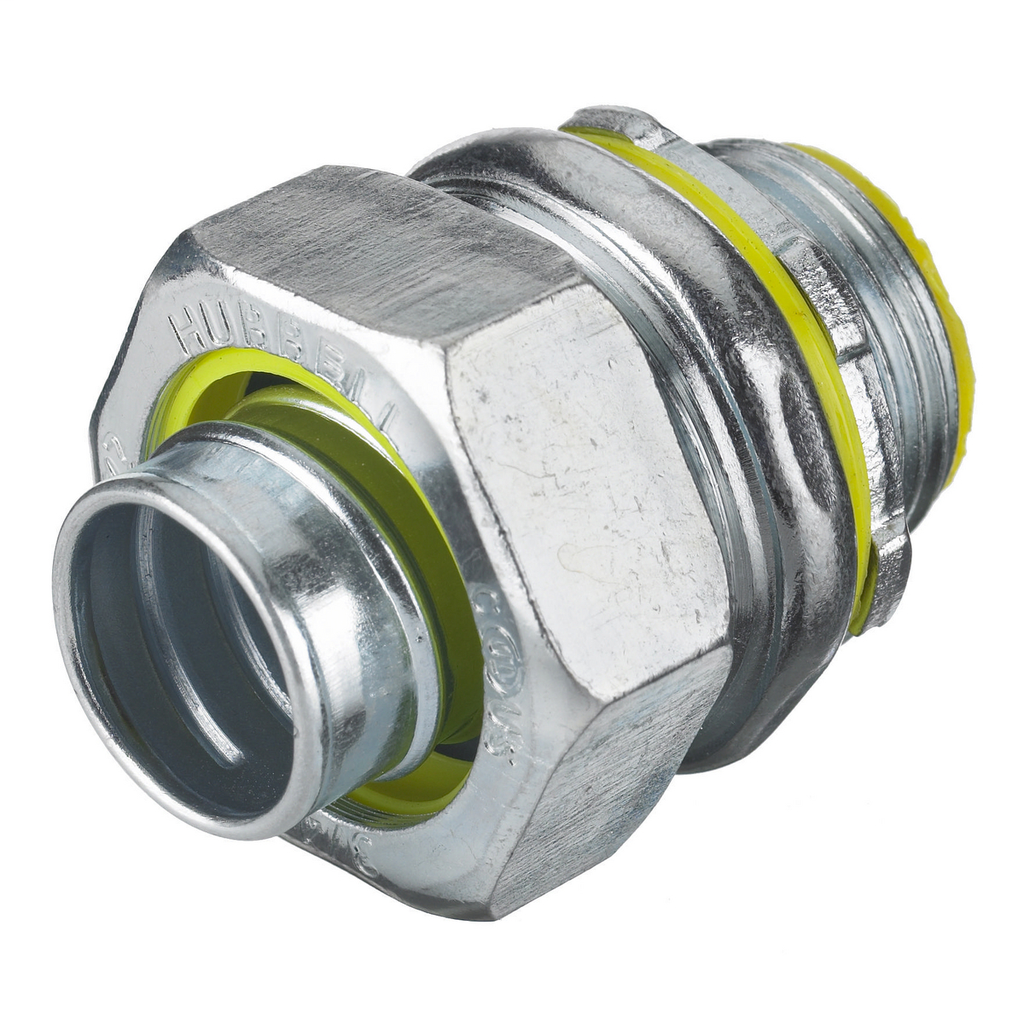

Hubbell Wiring Devices H0501 1/2 Inch Male Threaded Insulated Straight Metallic Liquidtight Conduit Connector
$5.27/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # H0501
North Coast Part # 1099344

Features

  • Hexagonal nut compresses gland-ring onto conduit
  • Nylon gasket provides liquidtight seal at hub
  • Non-integral steel ferrule seals conduit

Specifications

General

  • Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
  • Material: Steel, Zinc Plated
  • Performance: Environmental - Operating Temperature - –60°F to +1000°F (–51°C to +538°C) | Environmental - Hazardous Locations - NEC Reference -Class I, Div. 2 - 501-10(A)(3)B, Class II, Div. 1 - 502-10(A)(2), Class II, Div. 2 - 502-10(A)(3), Class III, Div. 1 - 503-10(A)(2), Class III, Div. 2 - 503-10(B)
  • Style: Straight
  • Type: Metallic Liquidtight Fittings
  • UPC: 783585035123

Dimensions

  • Dimension - L Length Overall mm: 1.437 in
  • Dimension - Thread Size: 1/2"-14 NPT
  • Dimension - Width mm: 1.188 in
  • Trade Size: 1/2

Certifications and Compliance

  • Industry Standard(s): CSA Certified | UL 514B

Logistics

  • Carton Quantity: 25

Overview

UPC 78358503512
GTiN 00783585035123
Length 1.000 in
Finish Metallic
Width 1.800 in
Size 1/2 in
Type Insulated, Straight, Male
Material Steel
Applications For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
Height 6.800 in
Temperature Rating -40 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Cap Nut
Sub Brand Kellems Wire Management
Trade Size 1/2 Inch
Standard CSA,UL 514B
Color Metallic
Environmental Conditions Suitable for use in wet locations when a listed sealing ring is used between box and fitting
