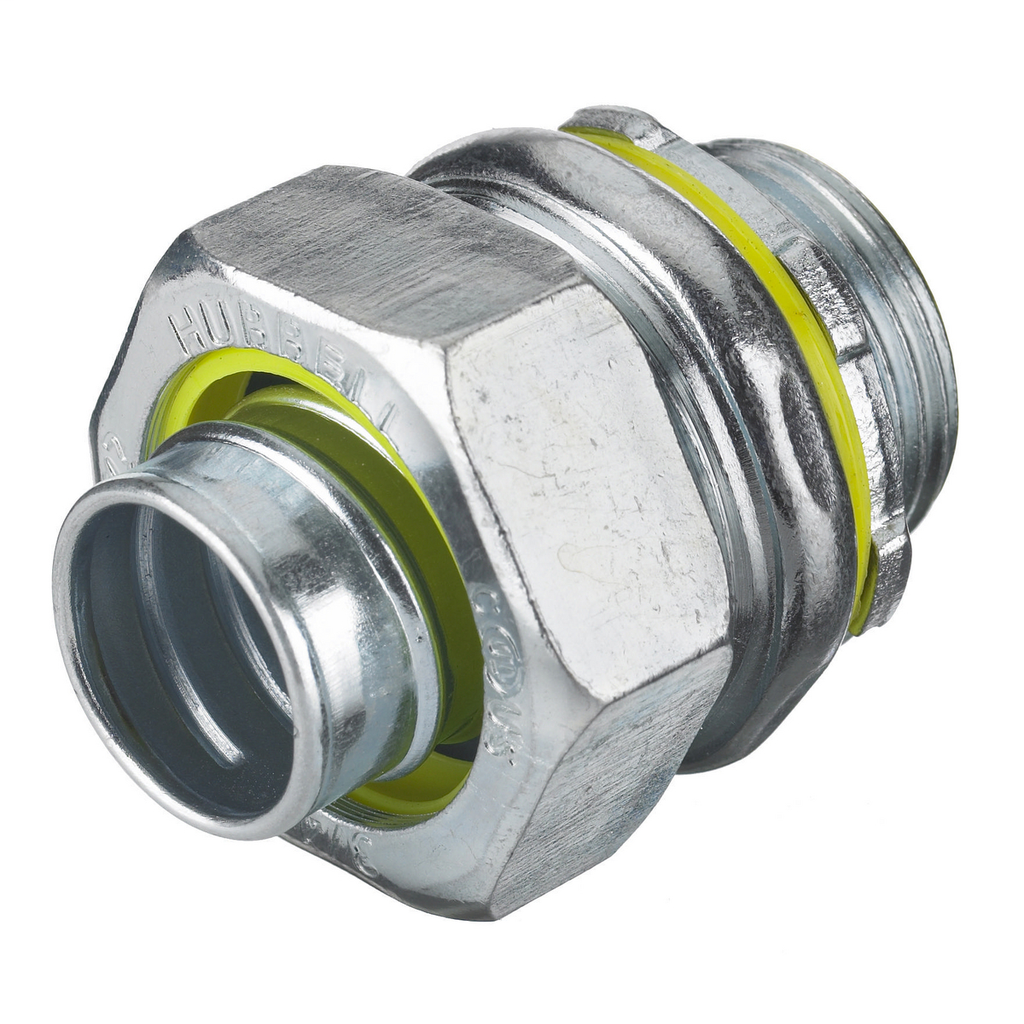

HWDK H200 STR MALE L/T CONN, 2", ST
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$48.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # H200
North Coast Part # 602708

Features

  • Hexagonal nut compresses gland-ring onto conduit
  • Nylon gasket provides liquidtight seal at hub
  • Non-integral steel ferrule seals conduit

Specifications

  • Country of Origin: CN
  • Dimension - L Length Overall mm: 2.281 in
  • Dimension - Thread Size: 2"-11-1/2 NPT
  • Dimension - Width mm: 3.000 in
  • Each - Height: 4.300 in
  • Each - Length: 6.400 in
  • Each - Width: 5.400 in
  • Industry Standard(s): CSA Certified;UL 514B
  • Performance: Environmental - Operating Temperature - –60°F to +1000°F (–51°C to +538°C);Environmental - Hazardous Locations - NEC Reference -Class I, Div. 2 - 501-10(A)(3)B, Class II, Div. 1 - 502-10(A)(2), Class II, Div. 2 - 502-10(A)(3), Class III, Div. 1 - 503-10(A)(2), Class III, Div. 2 - 503-10(B)
  • Product Type: Metallic Liquidtight Fittings
  • Show Add To ProjectList: Yes
  • Application: For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
  • Standard: CSA Certified; UL 514B
  • Type: Metallic Liquidtight Fittings

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358503408
Item Long Description Kellems Wire Management, Liquidtight System, Straight Male Liquid Tight Connector, 2", Steel, Non-Insulated
GTiN 00783585034089
Length 6.400 in
Finish Metallic
Width 5.400 in
Size 2 in
Type Straight, Male, Non-Insulated
Material Steel
Applications For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
Height 4.300 in
Trade Size 2 Inch
Temperature Rating -40 to 225 F
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Cap Nut
Sub Brand Kellems Wire Management
Standard CSA,UL 514B
Color Metallic
Environmental Conditions Suitable for use in wet locations when a listed sealing ring is used between box and fitting
