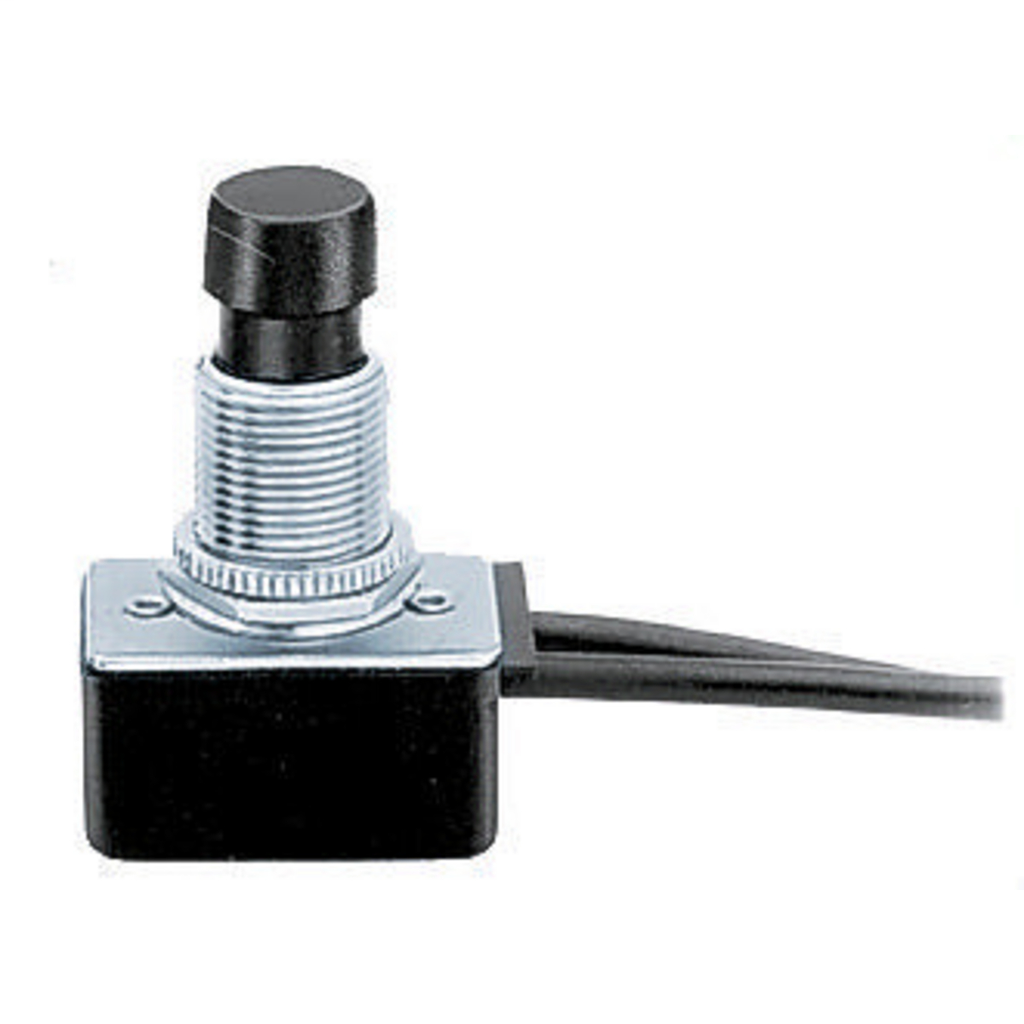

HWDK HBL11PBWL PANEL SW, SPST, PUSH
$11.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL11PBWL
North Coast Part # 421120

Features

  • Nickel Plated for Corrosion Resistance

Specifications

General

  • Action: SPST
  • Color: Metallic
  • Horsepower - Maximum: 0.33
  • Item Type: Panel Mount and Bat Handle Switch
  • Mounting Method: Panel Mount
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
  • Series: Single Pole/Single Throw
  • Style: Wire Leads #18 AWG
  • Type: General Purpose
  • UPC: 783585016696

Dimensions

  • Dimensions: 1.5 in x 0.98 in x 0.64 in
  • Height: 0.64 in
  • Length: 1.5 in
  • Weight: 0.05 lb
  • Width: 0.98 in

Electrical Ratings

  • Amperage Rating: 4/8/10 A
  • Current / Amperage Rating: 4/8/10 A
  • Voltage Rating: 250/125/120 VAC

Conductor Related

  • Wire Size: #18 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501669
GTiN 00783585016696
Length 1.5 in
Width 0.98 in
Size Standard Sized
Color Black
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 120 Volt
Type Standard, 2-Position
Material Non-Metallic
Product Series Single Pole/Single Throw
Applications On/Off
Height 0.64 in
Grade Commercial
Weight 0.05 lb
Wattage 1,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Wire Leads
Actuator Push Button
Contact Configuration Two Position
Current 4/8/10 A
Contact Rating As Indicated
Number of Poles 1 Pole
Interrupt Rating 4A 250V AC, 8A 125V, 10A 120V AC
Indicator None
Action On/Off
Sub Brand Panel Mount Switches
Standard UL
