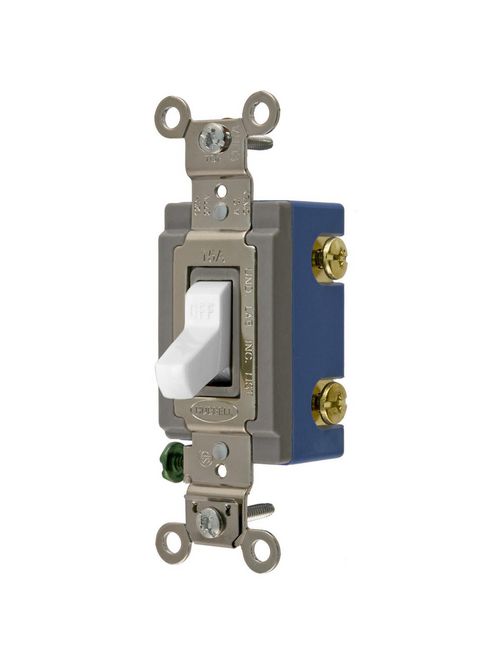

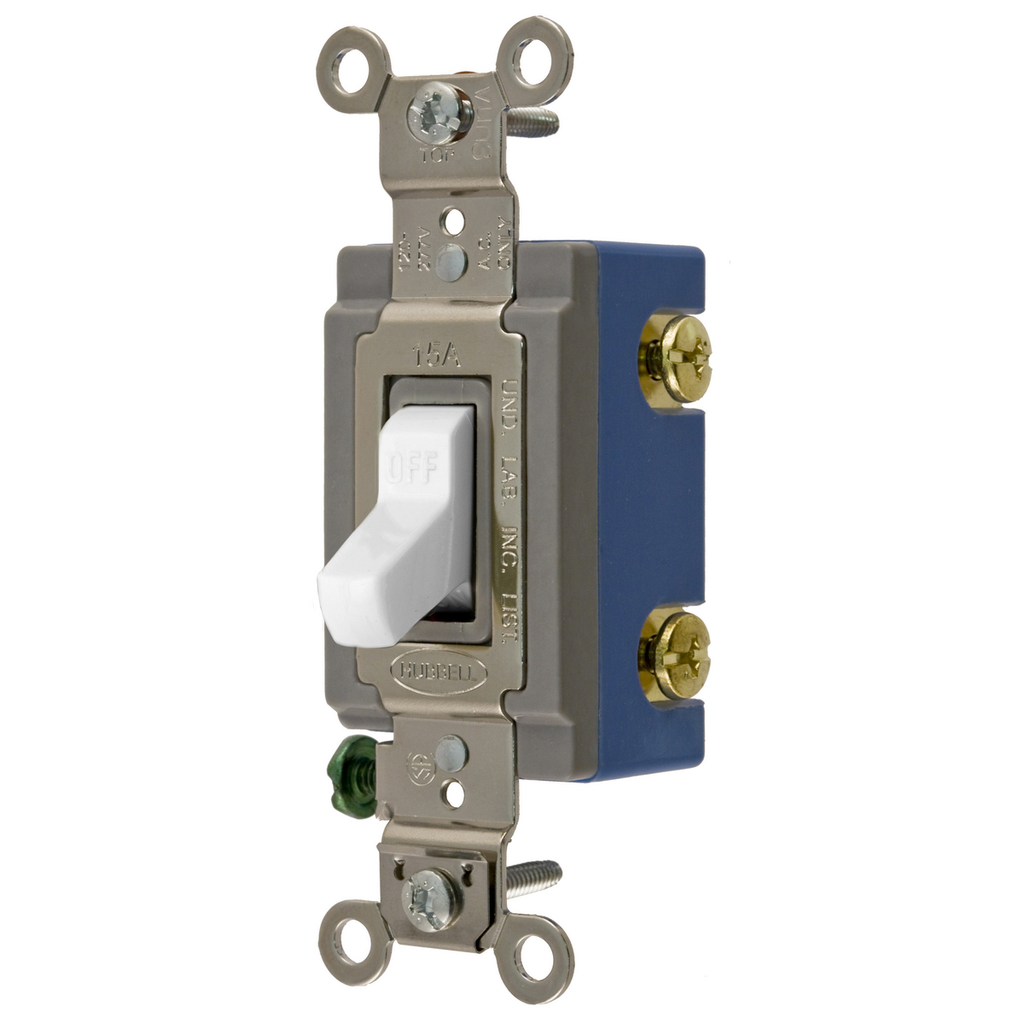

Hubbell Wiring Devices HBL1201W 120/277 Volt 15 Amp 1-Pole White Industrial Grade Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$22.84/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1201W
North Coast Part # 12375

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 15 A
  • Dimensions: 4.06 in x 1.31 in x 1.87 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.87 in
  • Industry Standard(s): UL Listed
  • Length: 4.06 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 15 A
  • Application: Back and Side Wired
  • Color: White
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.06 in x 1.31 in x 1.87 in
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.31 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358543014
Item Long Description Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, White Toggle
GTiN 00783585430140
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.87 in
Color White
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, 2 Position, Extra Heavy Duty
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.87 in
Grade Industrial
Weight 0.2 lb
Wattage 4155 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 15 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Action Positive Snap, Off
Operating Cycles 50000
Sub Brand AC Toggle Switches
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
