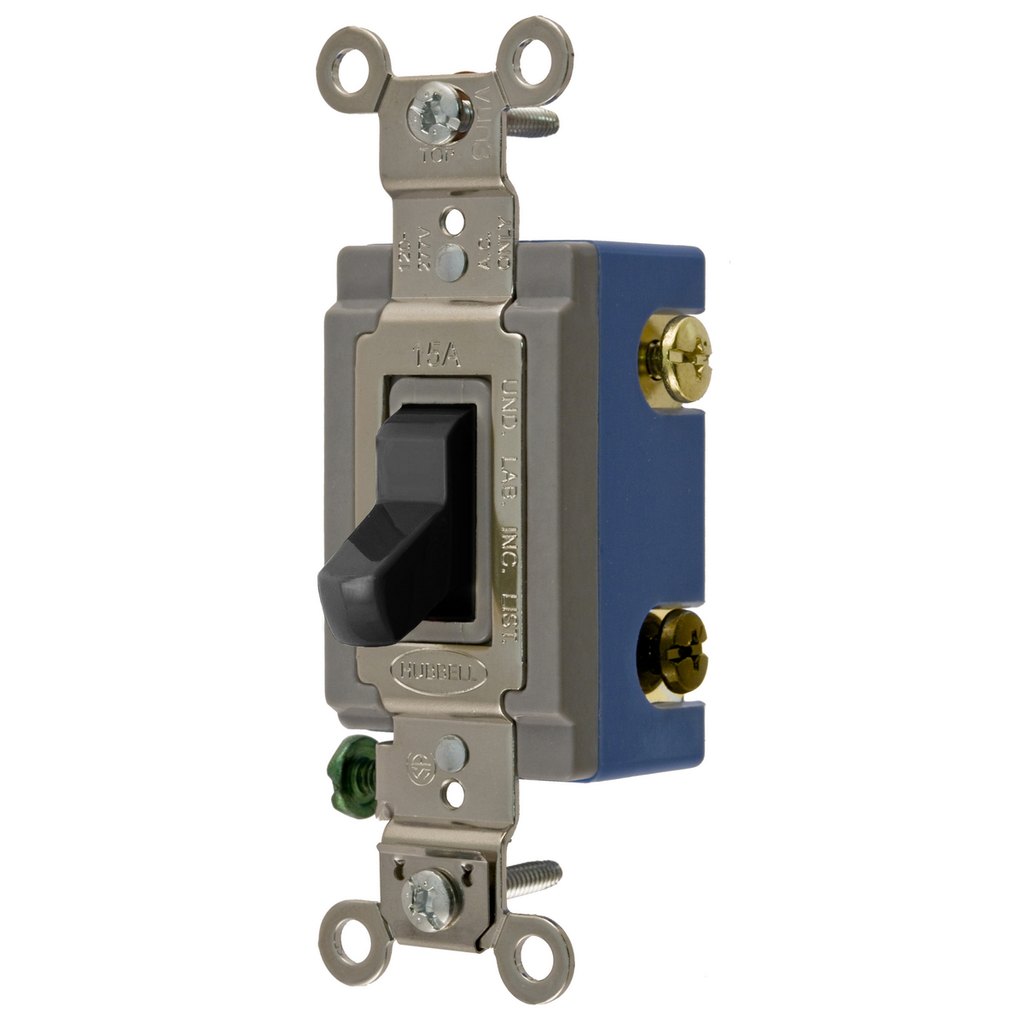

HWDK HBL1203BK 3 WAY TOG, IND GRD,

Features

• Large brass binding head screws with deep slots
• Abuse resistant nylon toggle
• Strip gauge for accurate wiring

Performance

• Electrical - Max. Working Voltage - 277V AC
• Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
• Electrical - Temperature Rise - 30°C maximum at rated current
• Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
• Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
• Environmental - Flammability - UL 94V-2
• Electrical - Max. Continuous Current - 15A
• Electrical - Overload - Minimum 4.8 times rated current for 100 cycles

Industry Standard(s)

• UL Listed

Specifications

• Action: SPDT
• Amperage Rating: 15 A
• Application: Back and Side Wired
• Carton Quantity: 10 EA
• Color: Black
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 1500V AC minimum for 1 minute
• Height: 1.87 in
• Length: 4.06 in
• Minimum Order Quantity: 1 EA
• Number Of Poles: Single Pole
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• SAP Material Group 5: A10
• Series: Extra Heavy Duty
• Style: Three Way
• Temperature Rise - Max.: 30°C maximum at rated current
• Type: Toggle
• Voltage Rating: 120-277 VAC
• Voltage Rating Description: 120-277 VAC
• Width: 1.31 in
• Wire Size: #14 AWG to #10 AWG
• EU RoHS Indicator: No
• Each - Length: 4.160 in
• Each - Height: 1.660 in
• Each - Width: 1.910 in
• Size: 4.06 in x 1.31 in x 1.87 in
• Standard: UL Listed
