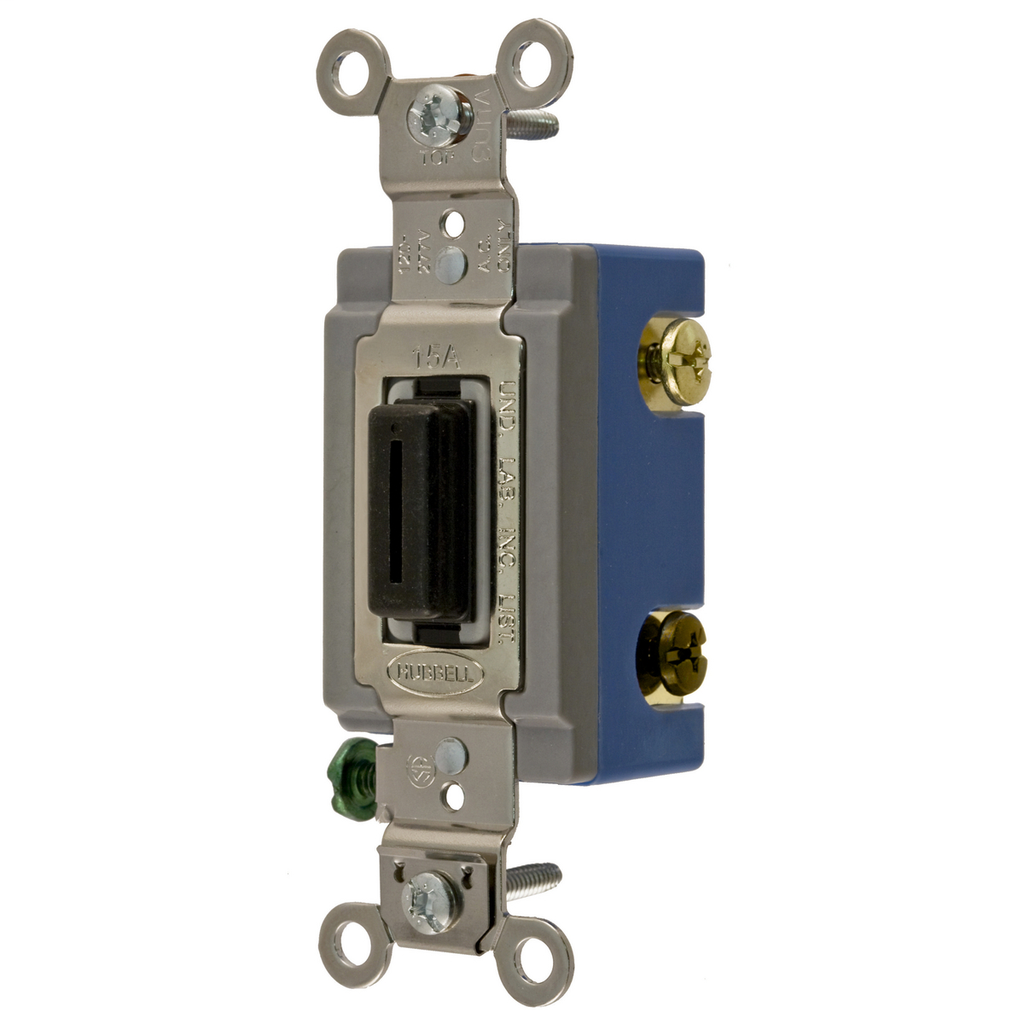

Hubbell Wiring Devices HBL1204L 15 Amp 120/277 VAC 4-Way Black Locking Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$91.80/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1204L
North Coast Part # 273262

Features

  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 4.06 in x 1.31 in x 1.13 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.13 in
  • Industry Standard(s): UL Listed
  • Length: 4.06 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Action: DPDT
  • Amperage Rating: 15 A
  • Application: Back and Side Wired
  • Color: Black
  • Size: 4.06 in x 1.31 in x 1.13 in
  • Standard: UL Listed
  • Type: Locking
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.31 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358543040
Item Long Description Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, Black Key Guide
GTiN 00783585430409
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.13 in
Color Black
Voltage 120-277 Volt
Type General Purpose, Standard, 4-Way, 2-Position
Material Thermoplastic
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.13 in
Grade Industrial
Weight 0.2 lb
Wattage 4155 Watt
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Family Brand Name Hubbell Wiring Device Kellems
Lock Type Non-Cylindrical
TC Connection Terminal Screws
Actuator Double Ended Key
Contact Configuration 2-Position
Current 15 A
Contact Rating Full Rated
Number of Poles 2 Pole
Enclosure None
Indicator Dot Indicates On
Sub Brand AC Toggle Switches
Standard UL
Action DPDT
