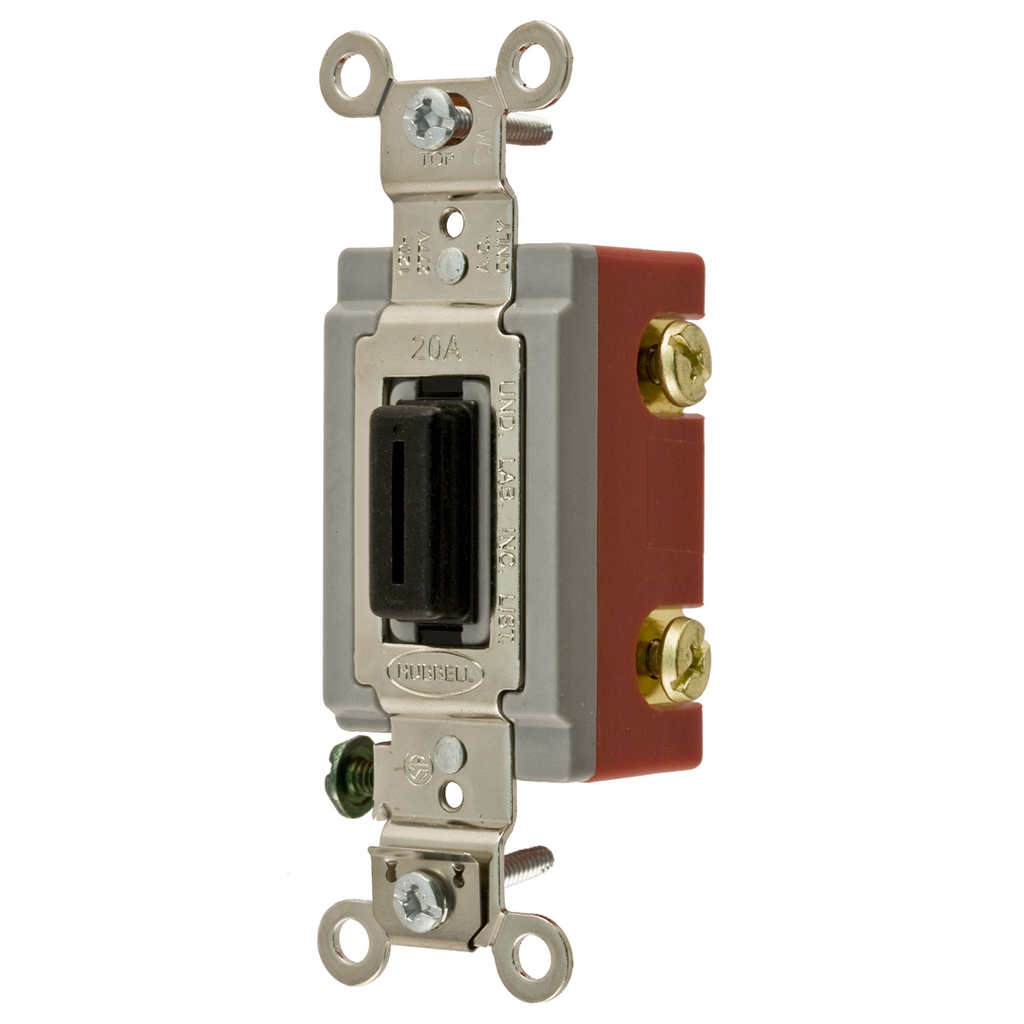

Hubbell Wiring Devices HBL1221L 20 Amp 120/277 VAC 1-Pole Black Locking Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$49.48/ea
In Stock | 28 available at 5 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1221L
North Coast Part # 13992

Features

  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring

Specifications

General

  • Application: Back and Side Wired
  • Color: Black
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: Extra Heavy Duty
  • Style: Single Pole
  • Type: Locking
  • UPC: 783585431444

Dimensions

  • Dimensions: 4.06 in x 1.31 in x 1.13 in
  • Height: 1.13 in
  • Length: 4.06 in
  • Weight: 0.2 lb
  • Width: 1.31 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358543144
GTiN 00783585431444
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.13 in
Color Black
Voltage 120-277 Volt
Type General Purpose, Standard, 2-Position
Material Thermoplastic
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.13 in
Grade Industrial
Weight 0.2 lb
Wattage 5540 Watt
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Lock Type Non-Cylindrical
TC Connection Terminal Screws
Actuator Double Ended Key
Contact Configuration 2-Position
Current 20 A
Contact Rating Full Rated
Number of Poles 1 Pole
Enclosure None
Indicator Dot Indicates On
Action Snap, Off
Sub Brand AC Toggle Switches
Standard UL
