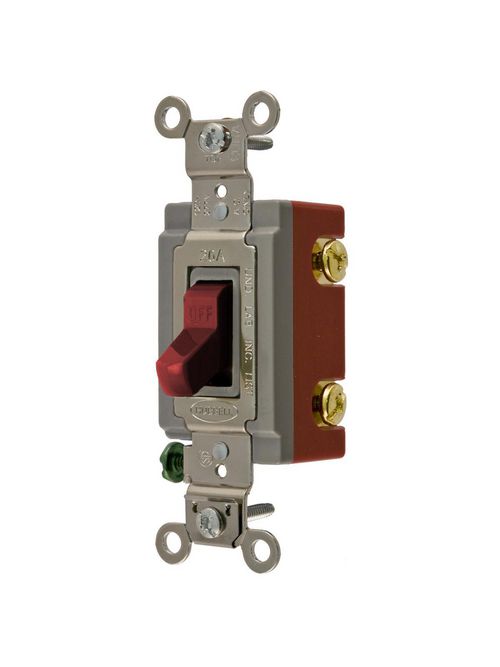

Hubbell Wiring Devices HBL1222R 20 Amp 120/277 VAC 2-Pole Red Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$40.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1222R
North Coast Part # 14144

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring

Specifications

General

  • Application: Back and Side Wired
  • Color: Red
  • Number Of Poles: Double Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute | Electrical - Max. Continuous Current - 20A | Electrical - Max. Working Voltage - 277V AC | Electrical - Overload - Minimum 4.8 times rated current for 100 cycles | Electrical - Temperature Rise - 30°C maximum at rated current | Environmental - Flammability - UL 94V-2 | Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact | Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Series: Extra Heavy Duty
  • Style: Double Pole
  • Type: Toggle
  • UPC: 783585431727

Dimensions

  • Dimensions: 4.06 in x 1.31 in x 1.87 in
  • Height: 1.87 in
  • Length: 4.06 in
  • Weight: 0.2 lb
  • Width: 1.31 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC

Conductor Related

  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358543172
GTiN 00783585431727
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.87 in
Color Red
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, Standard, 2-Position, Extra Heavy-Duty
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.87 in
Weight 0.2 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 2 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Material Thermoplastic
Grade Industrial
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action Positive Snap
