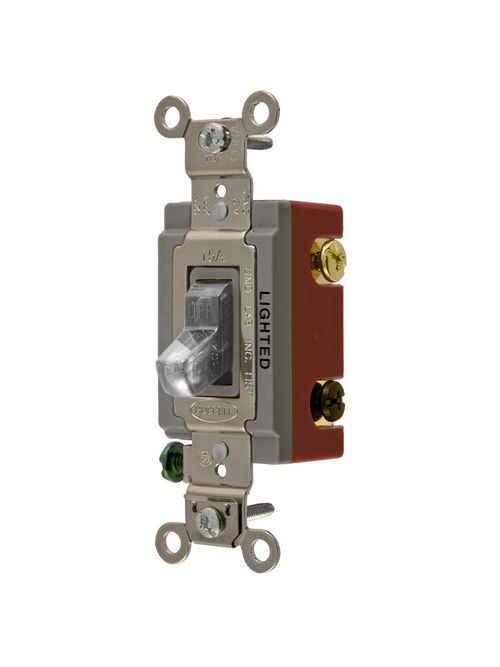

Hubbell Wiring Devices HBL1223ILC 20 Amp 120/277 VAC 3-Way Clear Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$71.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1223ILC
North Coast Part # 12691

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • Illuminated Toggle

Performance

  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Working Voltage - 277V AC

Industry Standard(s)

  • UL Listed

Specifications

  • Action: SPDT
  • Amperage Rating: 20 A
  • Application: Back and Side Wired
  • Carton Quantity: 10 EA
  • Color: Clear
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Height: 1.86 in
  • Indicator: Light On with Load Off
  • Length: 4.06 in
  • Minimum Order Quantity: 1 EA
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Three Way
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Weight: 0.2 lb
  • Width: 1.31 in
  • Wire Size: #14 AWG to #10 AWG
  • EU RoHS Indicator: No
  • Each - Length: 4.160 in
  • Each - Height: 1.660 in
  • Each - Width: 1.910 in
  • Size: 4.06 in x 1.31 in x 1.86 in
  • Special Features: Illuminated Toggle
  • Standard: UL Listed

Overview

UPC 78358543186
GTiN 00783585431864
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.86 in
Color Clear
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, 2-Position, Extra Heavy Duty
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.660 in
Grade Industrial
Weight 0.2 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Environmental Conditions Indoor Dry unless protected by additional means
Action SPDT
