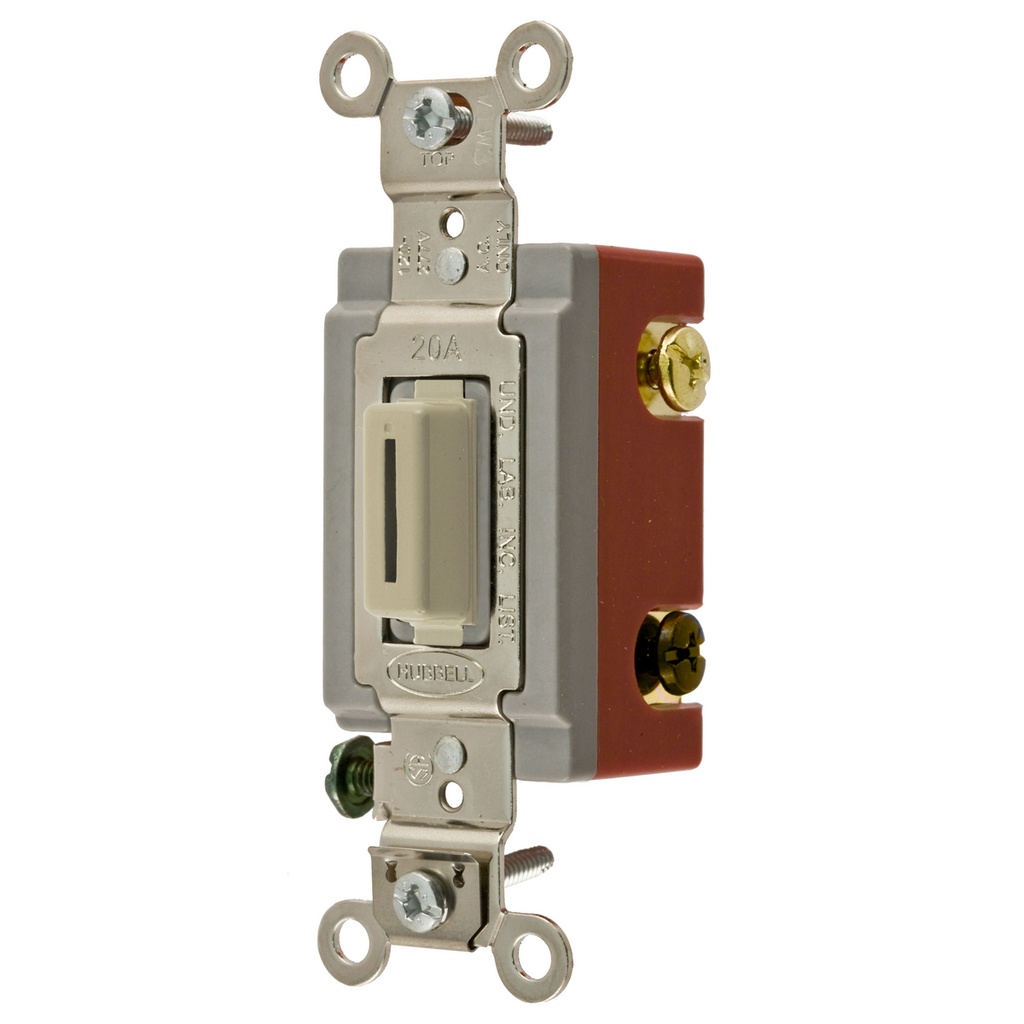

HWDK HBL1223LI 3W TOG, IND GRD, 20A
$53.16/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1223LI
North Coast Part # 818680

Features

  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring

Performance

  • Environmental - Flammability - UL 94V-2
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only

Industry Standard(s)

  • UL Listed

Specifications

  • Action: SPDT
  • Amperage Rating: 20 A
  • Application: Back and Side Wired
  • Carton Quantity: 10 EA
  • Color: Ivory
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Height: 1.13 in
  • Length: 4.06 in
  • Minimum Order Quantity: 1 EA
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Three Way
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Type: Locking
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.31 in
  • Wire Size: #14 AWG to #10 AWG
  • EU RoHS Indicator: No
  • Each - Length: 4.160 in
  • Each - Height: 1.660 in
  • Each - Width: 1.910 in
  • Size: 4.06 in x 1.31 in x 1.13 in
  • Standard: UL Listed

Overview

UPC 78358518862
GTiN 00783585188621
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.13 in
Color Ivory
Voltage 120-277 Volt
Type Locking
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.13 in
Wattage 5,540 Watt
Temperature Rating Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Lock Type Non-Cylindrical
TC Connection Terminal Screws
Actuator Double Ended Key
Contact Configuration 2-Position
Current 20 A
Contact Rating Full Rated
Number of Poles 1 Pole
Enclosure None
Indicator Dot Indicates On
Sub Brand AC Toggle Switches
Material Composite
Action SPDT
