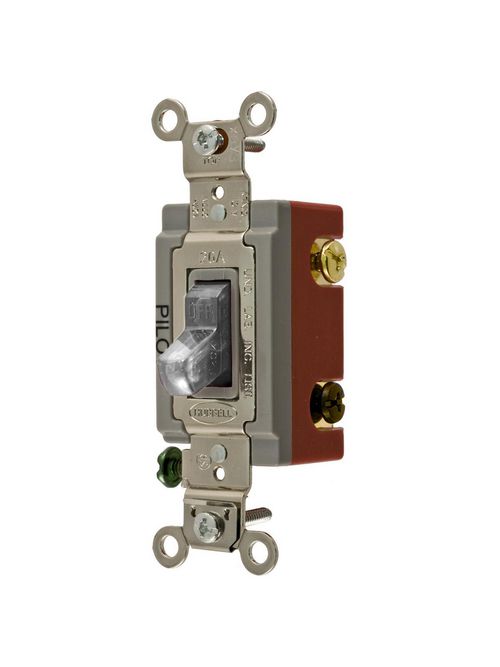

HWDK HBL1223PLC 3 WAY TOG, IND GRD,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$112.37/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1223PLC
North Coast Part # 18057

Features

  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
  • Pilot Light

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 20 A
  • Dimensions: 4.06 in x 1.31 in x 1.86 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.86 in
  • Indicator: Light On with Load On
  • Industry Standard(s): UL Listed
  • Length: 4.06 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Action: SPDT
  • Amperage Rating: 20 A
  • Application: Back and Side Wired
  • Color: Clear
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 4.06 in x 1.31 in x 1.86 in
  • Special Features: Pilot Light
  • Standard: UL Listed
  • Type: Toggle
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.31 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358543192
Item Long Description Switches and Lighting Controls, Industrial Grade, Pilot Light Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Clear Toggle
GTiN 00783585431925
Length 4.06 in
Width 1.31 in
Size 4.06 in x 1.31 in x 1.86 in
Color Clear
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, Standard, 3-Way, 2-Position, Extra Heavy-Duty
Product Series Extra Heavy Duty
Applications Back and Side Wired
Height 1.660 in
Weight 0.2 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1 Pole
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
Material Thermoplastic
Grade Industrial
Environmental Conditions Indoor Dry unless protected by additional means
Action SPDT
