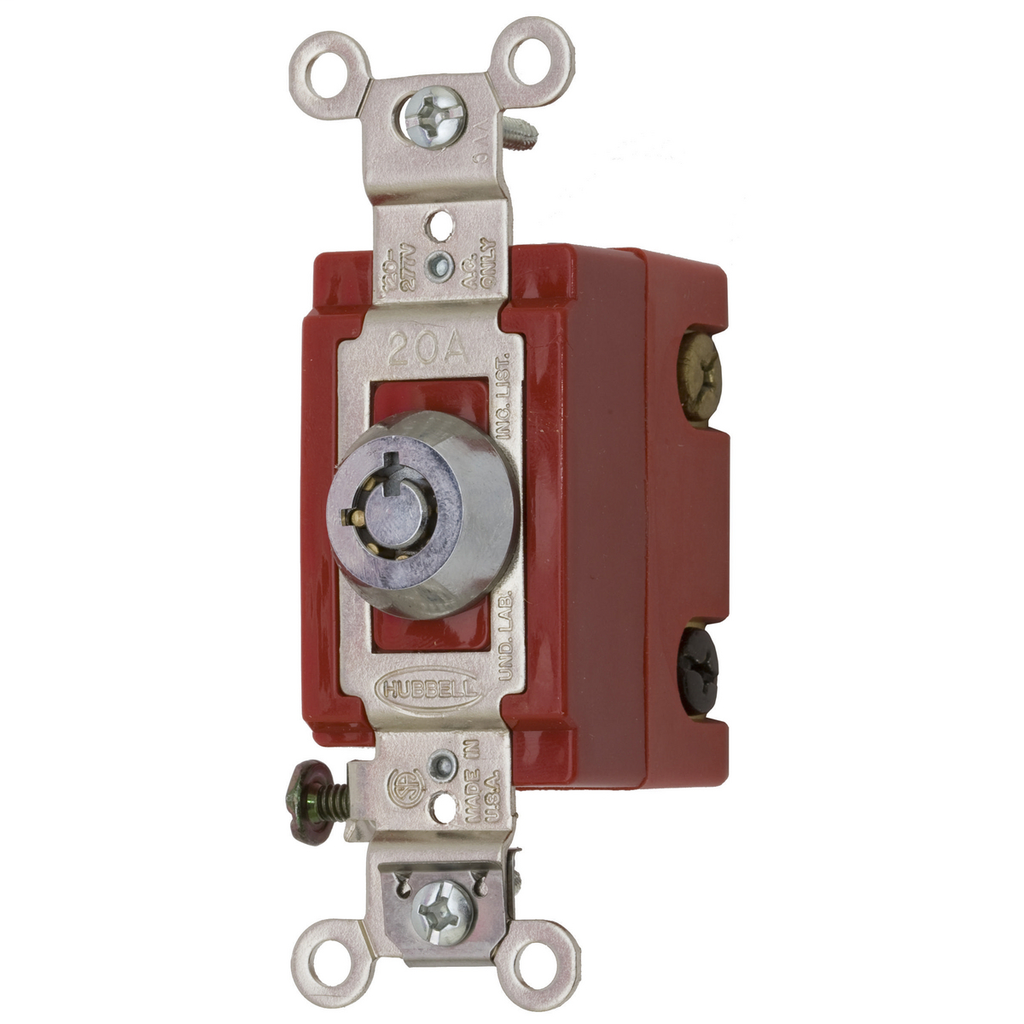

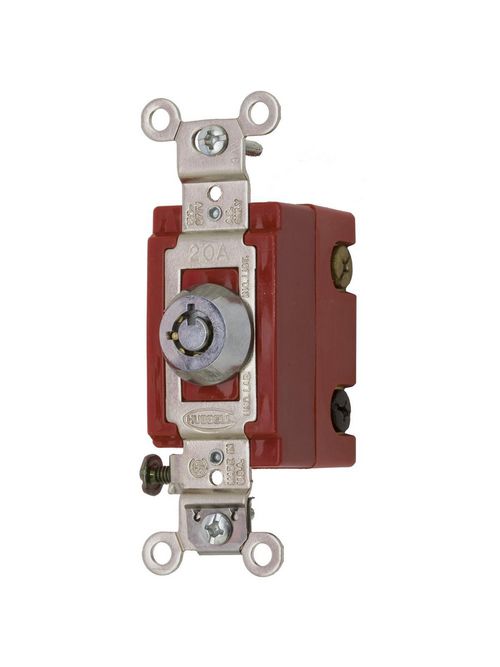

Hubbell Wiring Devices HBL1224RKL 20 Amp 120/277 VAC 4-Way Chrome Locking Toggle Switch
$148.43/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1224RKL
North Coast Part # 344140

Features

  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring

Performance

  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Environmental - Flammability - UL 94V-2
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Max. Continuous Current - 20A

Industry Standard(s)

  • UL Listed

Specifications

  • Action: DPDT
  • Amperage Rating: 20 A
  • Application: Back and Side Wired
  • Carton Quantity: 10 EA
  • Color: Chrome
  • Connectivity: Back and Side Wired
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 1500V AC minimum for 1 minute
  • Height: 2.02 in
  • Length: 4.06 in
  • Minimum Order Quantity: 1 EA
  • Number Of Poles: Double Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • SAP Material Group 5: A10
  • Series: Extra Heavy Duty
  • Style: Four Way
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Type: Locking
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Weight: 0.2 lb
  • Width: 1.25 in
  • Wire Size: #14 AWG to #10 AWG
  • EU RoHS Indicator: No
  • Each - Length: 3.850 in
  • Each - Height: 1.920 in
  • Each - Width: 2.170 in
  • Size: 4.06 in x 1.25 in x 2.02 in
  • Standard: UL Listed

Overview

UPC 78358543213
GTiN 00783585432137
Length 3.850 in
Width 1.25 in
Size Standard Product Size
Color Silver
Voltage 120-277 Volt
Type General Purpose, Standard, 4-Way, 2-Position, Extra Heavy-Duty
Product Series Extra Heavy Duty
Applications Four Way
Height 2.02 in
Weight 0.2 lb
Wattage 5,540 Watt
Temperature Rating -40 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Lock Type Cylindrical
TC Connection Terminal Screws
Actuator Cylindrical Key
Contact Configuration 2-Position
Current 20 A
Contact Rating Full Rated
Number of Poles 2 Pole
Enclosure None
Sub Brand AC Toggle Switches
Grade Industrial
