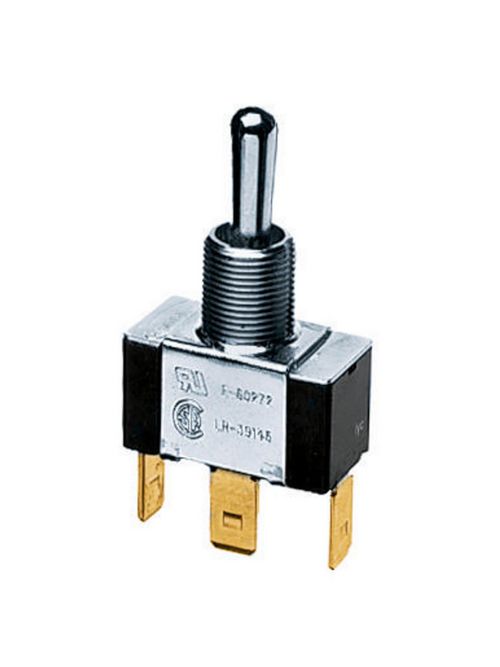

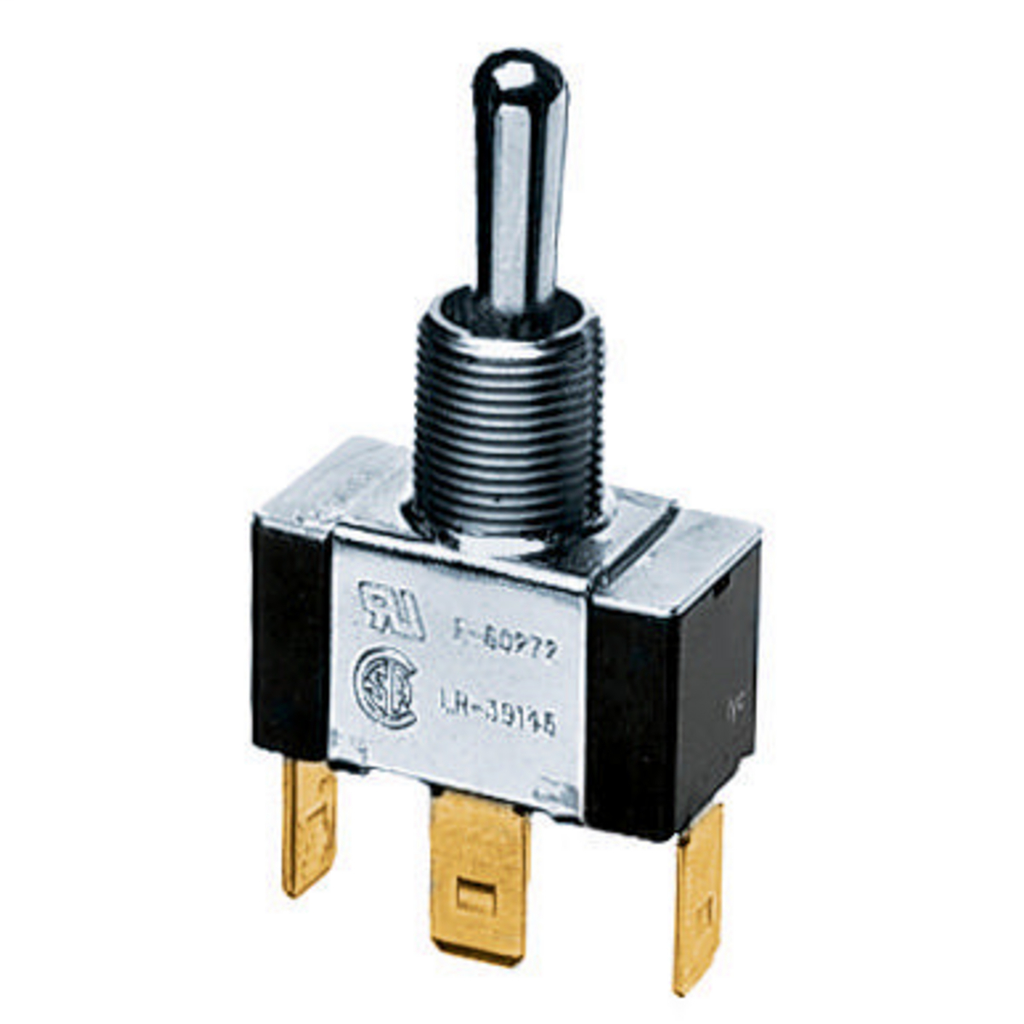

Hubbell Wiring Devices HBL123 3/4 Hp 10 Amp 250 VAC SPDT Panel Mount Screw Terminal Bat Handle Heavy Duty Switch
$9.43/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL123
North Coast Part # 160395

Features

  • Nickel Plated for Corrosion Resistance

Specifications

General

  • Action: SPDT
  • Horsepower - Maximum: 0.75
  • Item Type: Panel Mount and Bat Handle Switch
  • Mounting Method: Panel Mount
  • Number Of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
  • Series: Single Pole/Double Throw
  • Style: Screw Terminal
  • Type: General Purpose
  • UPC: 783585016764

Dimensions

  • Dimensions: 2.15 in x 0.56 in x 1.12 in
  • Height: 1.12 in
  • Length: 2.15 in
  • Weight: 0.05 lb
  • Width: 0.56 in

Electrical Ratings

  • Amperage Rating: 10/20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 10/20 A
  • Voltage Rating: 250/125 VAC

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501676
GTiN 00783585016764
Length 2.15 in
Width 0.56 in
Size Standard Sized
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 125 Volt
Type Bat Handle
Material Metal, Thermoplastic
Product Series Single Pole/Double Throw
Applications On/Off/On
Height 1.12 in
Weight 0.05 lb
Wattage 2,500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Actuator Toggle
Contact Configuration Two Position
Current 10/20 A
Contact Rating As Indicated
Number of Poles 1 Pole
Interrupt Rating 10A 250V AC, 20A 125V AC
Indicator Comes with Indicator Plate
Sub Brand Panel Mount Switches
Color Chrome
Grade Commercial
Standard UL
