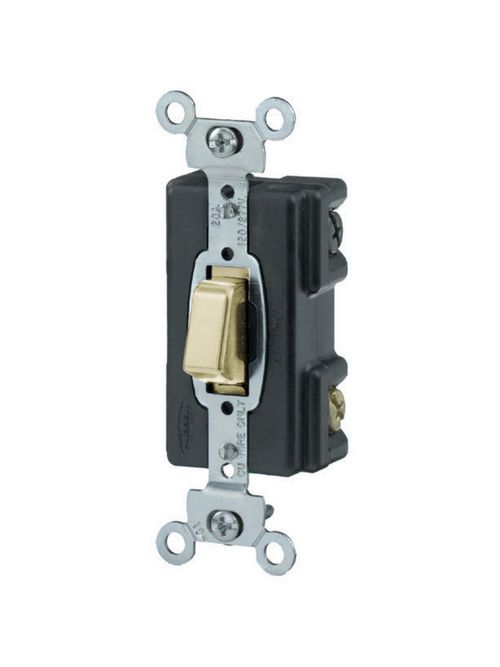

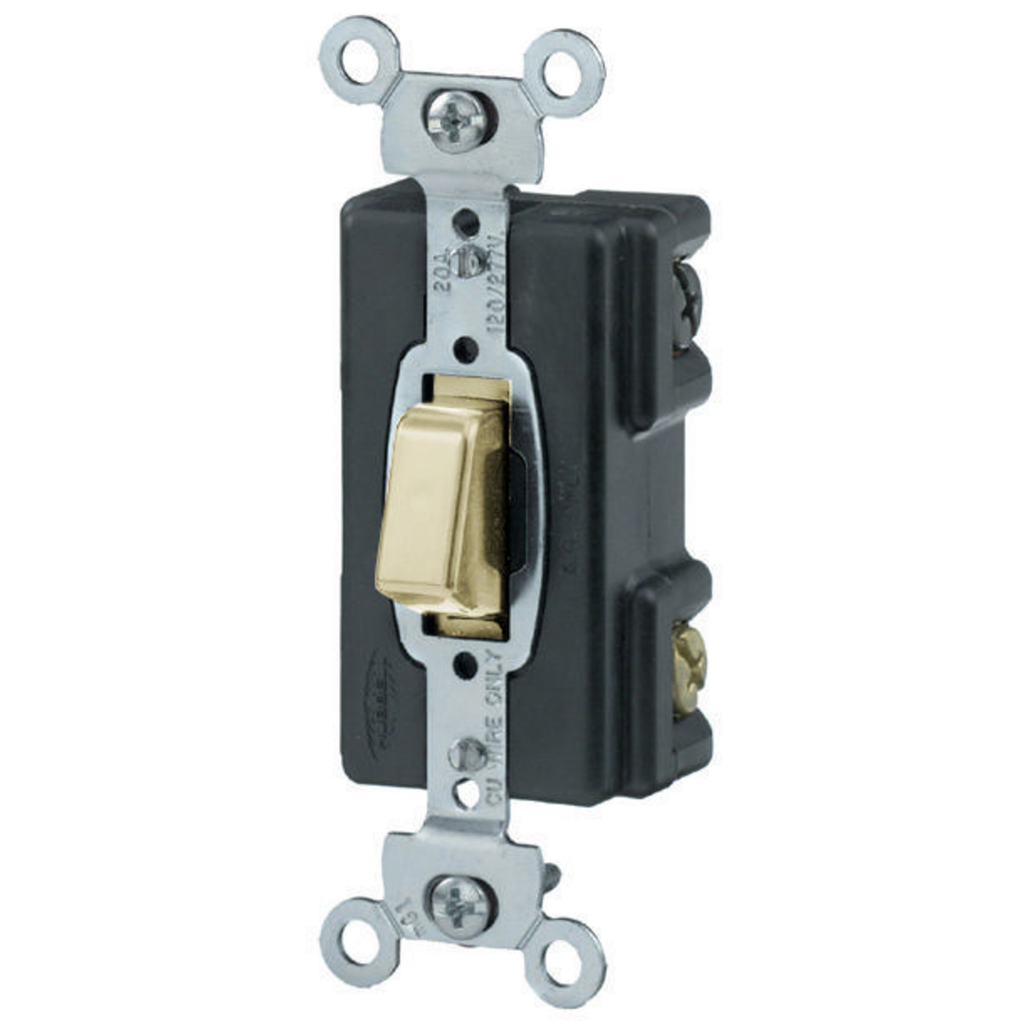

HWDK HBL1259I SP PRESSSWITCH, 15A,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$169.31/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1259I
North Coast Part # 17057

Features

  • Large brass binding head screws with deep slots
  • Thread cleaning captive mounting screw
  • Strip gauge for accurate wiring

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 3.28 in x 1.5 in x 1.45 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.45 in
  • Industry Standard(s): Fed. Spec. W-S-896
  • Length: 3.28 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Action: DPDT
  • Amperage Rating: 15 A
  • Color: Ivory
  • Indicator: Light On with Load Off
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 3.28 in x 1.5 in x 1.45 in
  • Standard: Fed. Spec. W-S-896
  • Voltage Rating: 120 VAC
  • Voltage Rating Description: 120 VAC
  • Width: 1.5 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358501680
Item Long Description Switches and Lighting Controls, Illuminated Industrial Grade, PresSwitch, General Purpose AC, Four Way, 15A 120/277V AC, Screw Terminals , Ivory
GTiN 00783585016801
Length 3.28 in
Width 1.5 in
Size 3.28 in x 1.5 in x 1.45 in
Color Ivory
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120 Volt
Type PresSwitches
Product Series Illuminated
Applications Heavy Duty Industrial
Height 1.45 in
Wattage 1800 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Actuator Push Button
Contact Configuration Two Position
Current 15 A
Number of Poles 1 Pole
Indicator Light On with Load Off
Operating Cycles 10k
Sub Brand Switches and Lighting Controls
Standard Fed. Spec. W-S-896
Environmental Conditions Indoor Dry unless protected by additional means
Action DPDT
