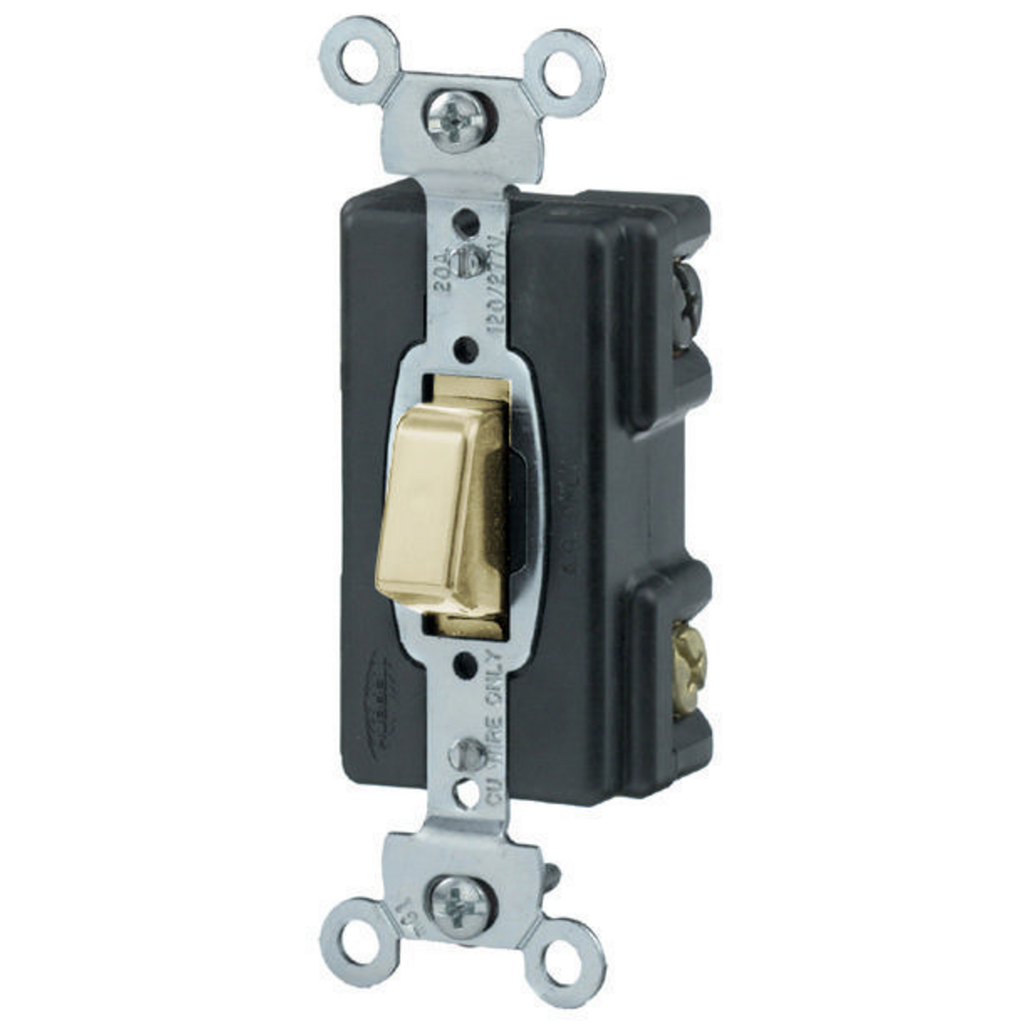

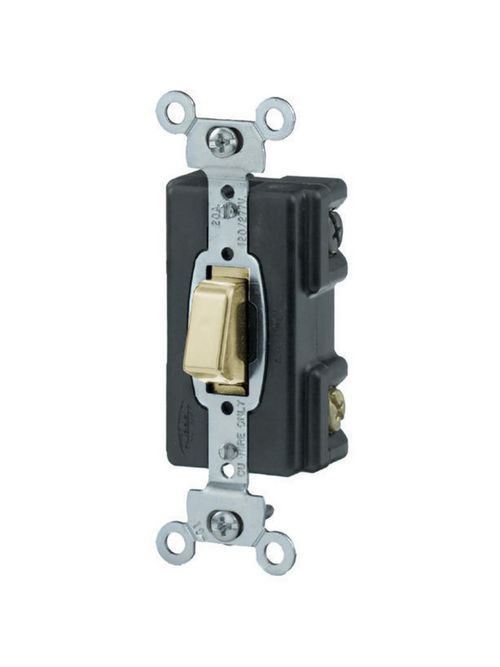

Hubbell Wiring Devices HBL1281I 20 Amp 120/277 VAC 1-Pole Ivory Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$48.98/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1281I
North Coast Part # 18837

Features

  • Large brass binding head screws with deep slots
  • Thread cleaning captive mounting screw
  • Strip gauge for accurate wiring

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.28 in x 1.5 in x 1.45 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 1.45 in
  • Industry Standard(s): UL Listed
  • Length: 3.28 in
  • Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
  • Show Add To ProjectList: Yes
  • Temperature Rise - Max.: 30°C maximum at rated current
  • Amperage Rating: 20 A
  • Color: Brown
  • Number of Poles: Single Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 3.28 in x 1.5 in x 1.45 in
  • Standard: UL Listed
  • Voltage Rating: 120-277 VAC
  • Voltage Rating Description: 120-277 VAC
  • Width: 1.5 in

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358501682
Item Long Description Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Single Pole, 20A 120/277V AC, Screw Terminals, Ivory
GTiN 00783585016825
Length 3.28 in
Width 1.5 in
Size 3.28 in x 1.5 in x 1.45 in
Color Ivory
Operating Temperature Maximum continuous 75C and minimum -40C without Impact
Voltage 120-277 Volt
Type General Purpose, Standard, Heavy Duty, 2-Position
Product Series General Purpose
Applications Heavy Duty Industrial
Height 1.45 in
Grade Industrial
Weight 0.2 lb
Wattage 5540 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Terminal Screws
Actuator Push Button
Contact Configuration Two Position
Current 20 A
Number of Poles 1 Pole
Operating Cycles 10000
Sub Brand PresSwitch
Standard UL
Environmental Conditions Indoor Dry unless protected by additional means
Action Snap
