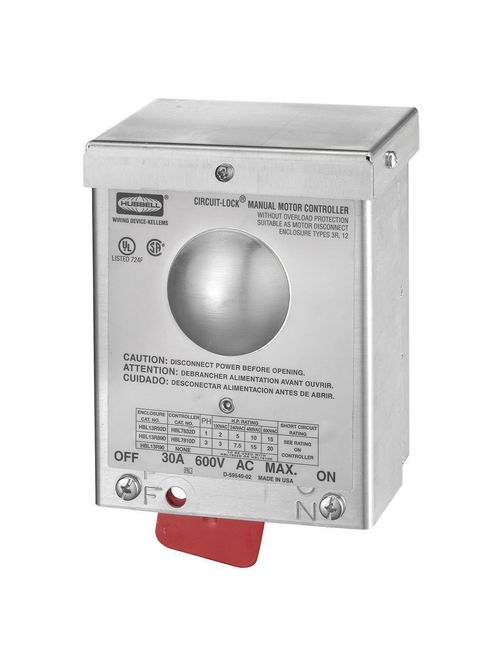

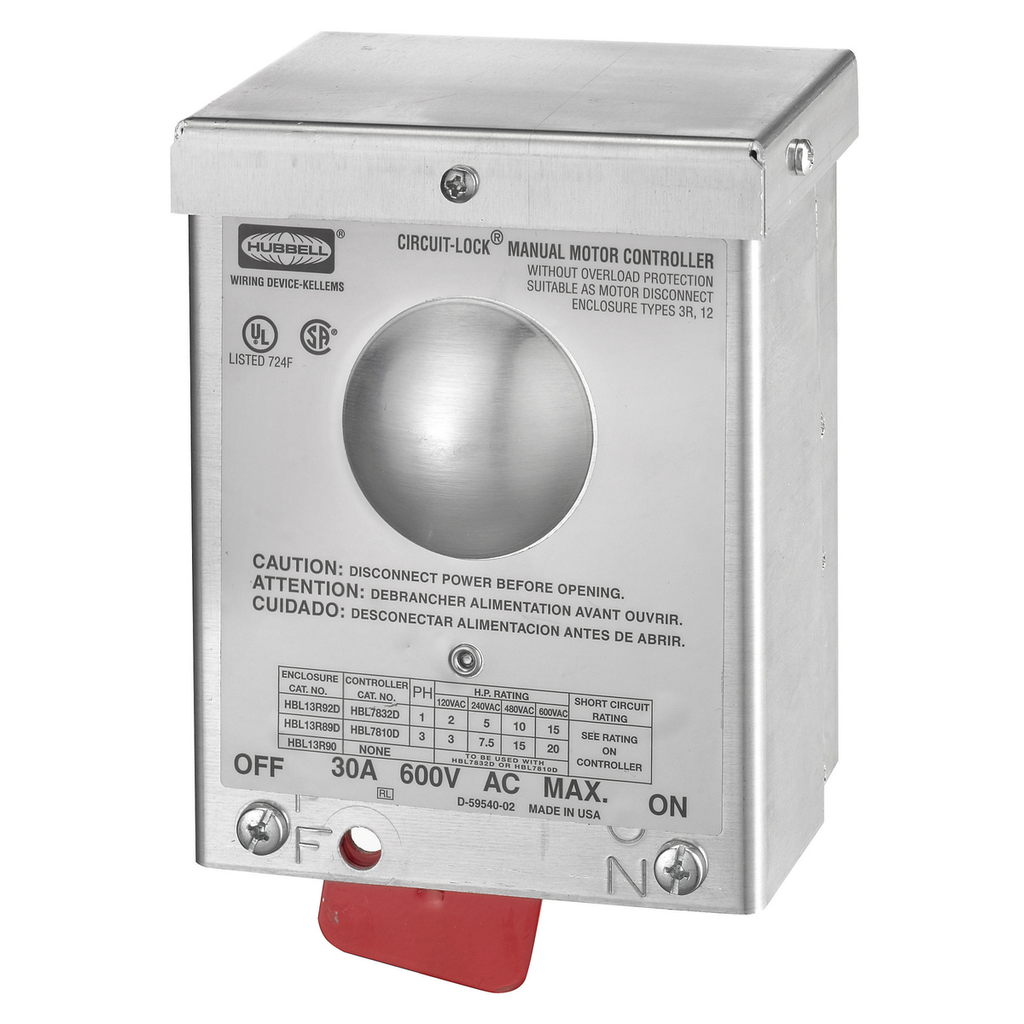

Hubbell Wiring Devices HBL13R92D 30 Amp 600 VAC 2-Pole NEMA 3R Non-Metallic Disconnect Switch Enclosure
$108.40/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL13R92D
North Coast Part # 270707

Features

  • Hubbell Wiring Devices, Switches and Lighting Controls, IndustrialGrade, Toggle Switches, Motor Disconnects, Double Pole, 30A 600V AC,Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch

Specifications

General

  • Application: Red Slide
  • Enclosure Type: NEMA 3R
  • Environmental Conditions: Indoor and Outdoor
  • Horsepower - Maximum: 15
  • Load Capacity: Inductive
  • Material - Mounting Hardware: Screw Mounting
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Cycles: 10,000 Cycles Minimum
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Non-Fused
  • Style: Standard Duty
  • Type: Disconnect Switches
  • UPC: 783585202709

Dimensions

  • Dimensions: 5.52 in x 4.4 in x 3.3 in
  • Display Size: Standard Sized Product
  • Height: 3.3 in
  • Length: 5.52 in
  • Weight: 1.45 lb
  • Width: 4.4 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Phase: Single Phase
  • Wattage: 18000

Logistics

  • Carton Quantity: 4

Overview

UPC 78358520270
GTiN 00783585202709
Length 5.52 in
Width 4.4 in
Size Standard Sized Product
Type Enclosed, Standard
Product Series Fused,Non
Applications For Motor Starting Without Overload Protection
Mounting Type Screw
Height 3.3 in
Weight 1.45 lb
Connection Type Pressure Screw Terminal
Wattage 18000 W
Temperature Rating -40 C
Family Brand Name Hubbell Wiring Device Kellems
Number of Phases Single
Enclosure Type Metallic NEMA 3R
Carton Qty 4
Power Rating 18,000 W
TC Connection Pressure Screw Terminals
Current 30 A
Blade Dimensions 111.8 mm W x 140.2 mm H
Number of Poles 2 Pole
Sub Brand Manual Motor Controllers
Voltage null
