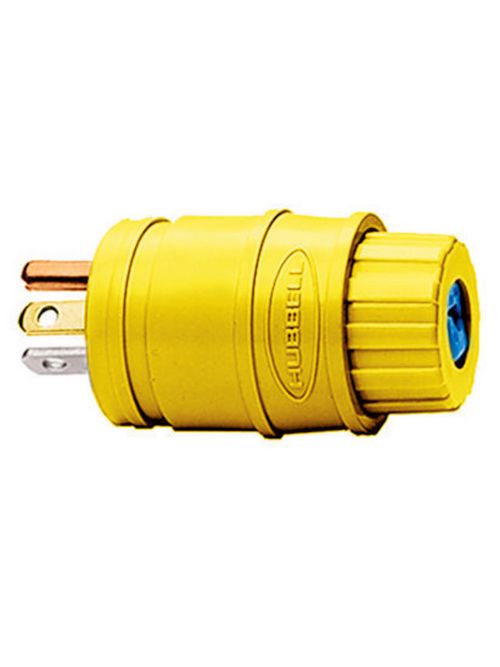

Hubbell Wiring Devices HBL14W33 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20P Yellow Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
$37.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL14W33
North Coast Part # 65619

Features

  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord

Specifications

General

  • Application: Industrial/Commercial Grade
  • Color: Yellow
  • Horsepower - Maximum: 0.50
  • Item Type: Elastogrip
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical:Current Interrupting Certified for current interrupting at full rated current,Dielectric Voltage Withstands 2,000V minimum | MechanicalProduct Identification Ratings are a permanent part of the device | Terminal Accommodation #18-#12 AWG. Stranded copper wire only. | Terminal Identification:Terminals identified in accordance with UL 498 and CSA | Environmental:Flammability UL 94 V-2,IP Suitability IP55,Operating Temperatures: Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Elastogrip
  • Style: Standard
  • Type: Plugs
  • UPC: 783585013329

Dimensions

  • Dimensions: 2.67 in x 1.55 in x 2.67 in
  • Display Size: Standard Sized Product
  • Height: 2.67 in
  • Length: 2.67 in
  • Weight: 0.3 lb
  • Width: 1.55 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280 | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-20P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501332
GTiN 00783585013329
Length 2.67 in
Width 1.55 in
Size 2.67 in x 1.55 in x 2.67 in
Color Yellow
Voltage 125 Volt
Type Elasto-Grip
Material Composite
Conductor Size 14 - 10 AWG
Product Series Elastogrip
Cord Type All Portable
Applications Industrial/Commercial
Mounting Type Cord
Height 2.67 in
Weight 0.3 lb
Wire Size 18-12 AWG
Wattage 2000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Grounding Grounding
TC Connection Terminal Screws
Current 20 A
Environmental Conditions Weather-Resistant, Watertight
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade Devices
Standard C22.2 No. 42 File 280,CSA,NEMA WD-6,UL,UL498 File E1706
