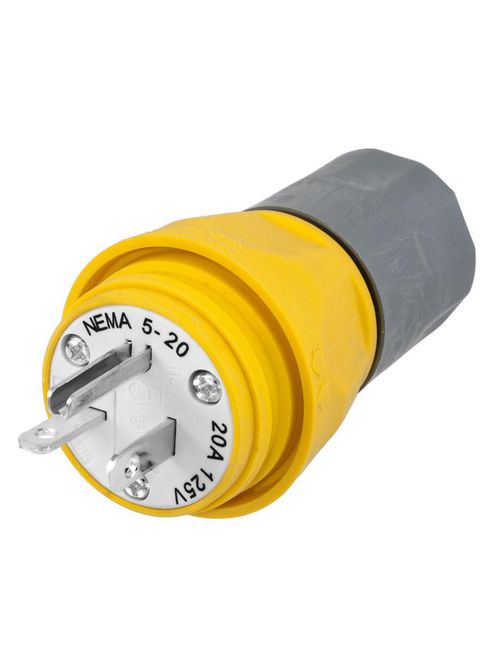

Hubbell Wiring Devices HBL14W33A 20 Amp 125 Volt 2-Pole 3-Wire Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
$41.83/ea
In Stock | 5 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL14W33A
North Coast Part # 1094186

Features

  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points

Specifications

General

  • Color: Yellow
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: -40°C (without impact) to +60°C continuous
  • Performance: Electrical:Current Interrupting Rated for current interruption per UL498 | Dielectric Voltage: 2500V AC | Max Working Voltage As marked | Temperature Rise: 30°C max per UL498 at rated current | Mechanical:Cord Accomodation: 0.375"-0.625" (9.5-15.9) | Environmental:Moisture Resistance UL Listed 4, 4X, 12, 6, 6P | Operating temperatures -40°C (without impact) to +60°C continuous | UV resistance All exposed materials are UV stabilized
  • Series: Watertight Devices
  • Temperature Rating: -40°C (without impact) to +60°C continuous
  • Type: Plugs
  • UPC: 783585131184

Dimensions

  • Weight: 0.2 lb

Electrical Ratings

  • Amperage Rating: 20 A
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3-Wire

Certifications and Compliance

  • Industry Standard(s): IP69K rating | Listed to UL498 | Certified to CSA C22.2 No. 42 | Meets NEMA WD-1, WD-6 And ANSI Standards | UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P
  • Nema Rating: 5-20P

Logistics

  • Carton Quantity: 25

Overview

UPC 78358513118
GTiN 00783585131184
Length 9.000 in
Width 1.400 in
Size Standard Sized
Color Yellow
Voltage 125 Volt
Type Standard, Watertight
Material Thermoplastic Elastomer
Conductor Size 14-12 AWG
Product Series Watertight Devices
Cord Type Portable
Applications For Industrial/Commercial
Mounting Type Surface, Cord
Height 10.625 in
Weight 0.2 lb
Wire Size 14-12 AWG
Wattage 2500 Watt
Temperature Rating -40 to 60 C Continuous
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
Grounding Yes
TC Connection Screw Terminals
Dielectric Strength 2500 VAC
Current 20 A
Blade Dimensions 3.16 in L
Cord Size 3/8 - 5/8 in
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Watertight
Standard 12,4X,6,6P,ANSI Standards,CSA,CSA C22.2 No. 42,IP69K Rating,Meets NEMA WD-1,Type 4,UL,UL498,WD-6
Environmental Conditions Watertight
