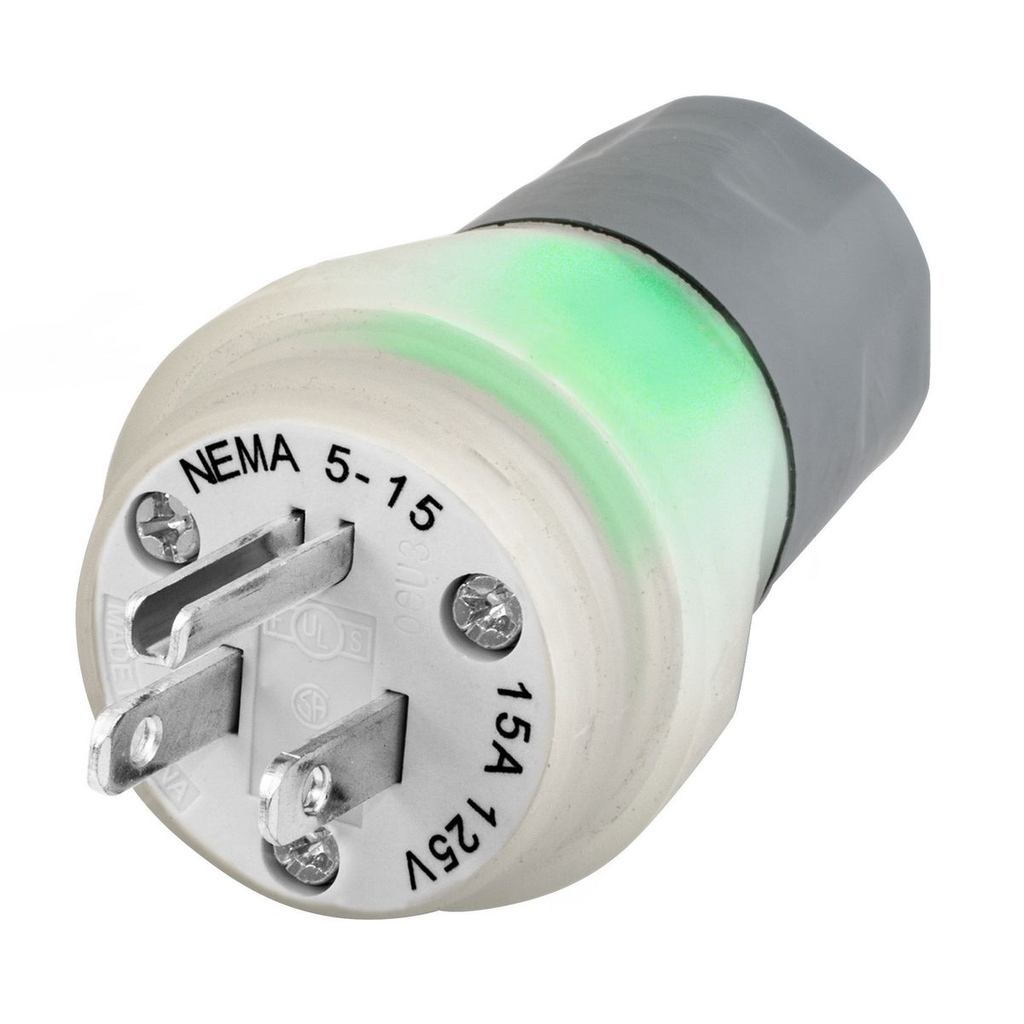

HWDK HBL14W47AWC PLUG, W/TIGHT 5-15
$92.08/ea
In Stock | 10 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL14W47AWC
North Coast Part # 1834143

Features

  • Power indicating LED also confirms wiring condition of the device
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection

Specifications

General

  • Color: Clear
  • Number Of Poles: 2 Pole
  • Performance: Electrical: Current Interrupting- Rated for current interruption per UL498 | Electrical: Dielectric Voltage- 2500V AC | Electrical: Max Working Voltage- As marked | Electrical: Temperature Rise- 30°C max per UL498 at rated current | Mechanical: Cord Accomodation- 0.375"-0.625" (9.5-15.9) | Environmental: Moisture Resistance- UL Listed 4, 4X, 12, 6, 6P | Environmental: Operating Temperature- -40°C (without impact) to +60°C continuous | Environmental: UV resistance- All exposed materials are UV stabilized
  • Series: Watertight
  • Type: PLUG
  • UPC: 783585580586

Electrical Ratings

  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Number Of Wires: 3 Wire

Certifications and Compliance

  • Industry Standard(s): Meets NEMA WD-1, WD-6 And ANSI Standards

Logistics

  • Carton Quantity: 25

Overview

UPC 78358558058
GTiN 00783585580586
Length 11.000 in
Width 6.000 in
Color Colorless
Voltage 125 Volt
Type PLUG
Product Series Watertight
Height 2.000 in
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Size Standard Sized
Material Elastomeric/Composite
Cord Type All Portable
Applications Wet and Moist Environments
Wire Size 14-12 AWG
Standard ANSI Standards,Meets NEMA WD-1,WD-6
Wattage 2,500 Watt
TC Connection Screw Terminals
Sub Brand Watertight Devices
Environmental Conditions Watertight
