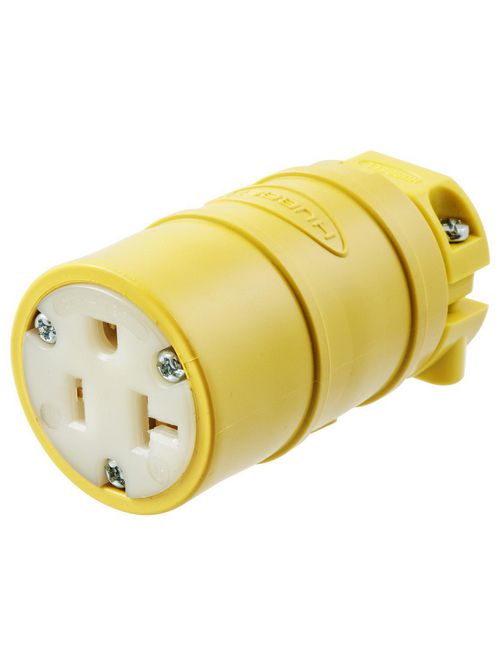

Hubbell Wiring Devices HBL1533 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Yellow Straight Blade Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$29.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL1533
North Coast Part # 774

Features

  • Thermoplastic elastomer housing
  • Dust and moisture seal around cord
  • Dust-Tight

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 3.00 in x 1.61 in x 3.00 in
  • Each - Height: 1.660 in
  • Each - Length: 4.160 in
  • Each - Width: 1.910 in
  • Height: 3.00 in
  • Horsepower - Maximum: 1.00
  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
  • Length: 3.00 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Industrial/Commercial
  • Color: Yellow
  • Conductor Range: #18 AWG to #12 AWG
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • NEMA Rating: 5-20R
  • Number of Poles: 2-Pole
  • Size: 3.00 in x 1.61 in x 3.00 in
  • Special Features: Dust-Tight
  • Standard: CSA Certified to C22.2 No. 42 File 280C; NEMA® WD-6 Compliant; UL Listed to UL498 File E1706
  • Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Type: Connector Body
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Width: 1.61 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358501335
Item Long Description Straight Blade Devices, Female Connector Body, Elasto-Grip Dust Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Yellow, Single Pack.
GTiN 00783585013350
Length 3.00 in
Width 1.61 in
Size 3.00 in x 1.61 in x 3.00 in
Color Yellow
Voltage 125 Volt
Type Standard, Insulated, 2-Pole
Material Composite
Number of Conductors 3
Conductor Size 14 - 12 AWG
Product Series Elastogrip
Applications Industrial/Commercial
Height 3.00 in
Weight 0.15 lb
Connection Type Screw Terminal
Temperature Rating 75 C Maximum Continuous, -40 C Minimum Without Impact
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Screw Terminals
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Elastogrip
Standard C22.2 No. 42 File 280C,CSA,NEMA WD-6,UL,UL498 File E1706
Environmental Conditions Indoor Dry Unless Protected By Additional Means
