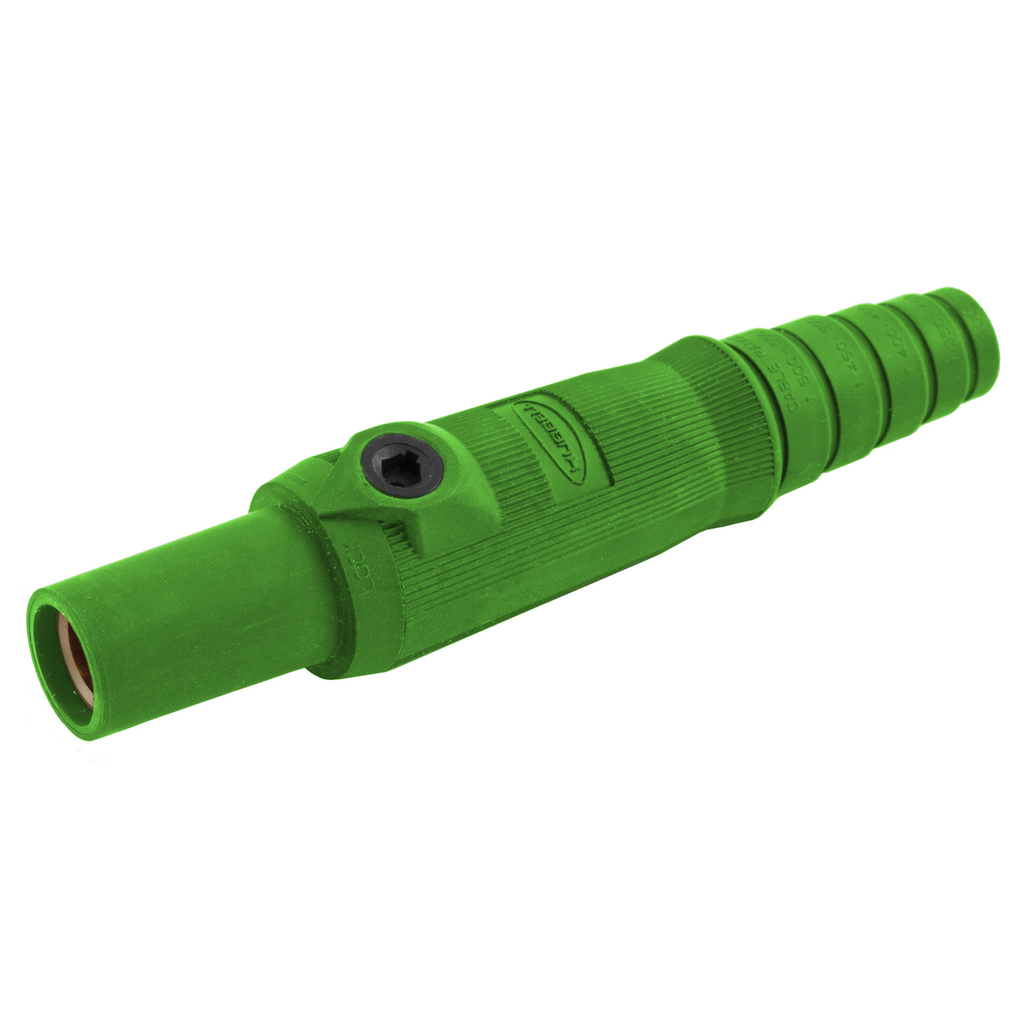

HWDK HBL15FGN SINGLE POLE SER 15 FE
$28.22/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL15FGN
North Coast Part # 1099126

Features

  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
  • Easily Identifiable Cable with cut off points for secure fit

Specifications

General

  • Application: Temporary Electrical Power
  • Color: Green
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: Female Plug
  • Material: Brass and Non-Metallic
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 1-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Performance: Electrical - Amperage Rating - 150A Maximum | Electrical - Voltage Ratings - 600V AC Maximum | 250V DC Maximum | Mechanical - Product Identification - Ratings are a permanent part of device | Mechanical - Terminal Accommodation - #8 to #2 AWG
  • Series: Series 15
  • Style: Female
  • Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
  • Type: Plugs
  • UPC: 783585458410

Dimensions

  • Display Size: Standard

Electrical Ratings

  • Amperage Rating: 150 A
  • Connectivity: Set Screw
  • Current / Amperage Rating: 150 A
  • Current Rating: 150 A
  • Voltage Rating Description: 600V AC/DC

Conductor Related

  • Conductor Range: #8 AWG to #2 AWG SC/PPC Wire
  • Number Of Conductors: 1 Conductor

Certifications and Compliance

  • Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70 | UL and cUL Listed | UL Enclosure Types 3R, 4X, 12
  • Nema Rating: Non-NEMA

Logistics

  • Carton Quantity: 25

Overview

UPC 78358545841
GTiN 00783585458410
Length 8.000 in
Width 6.000 in
Size Standard
Color Green
Type Female Plug
Material Brass,Non-Metallic
Number of Conductors 1 Conductor
Product Series Series 15
Applications Temporary Electrical Power
Height 1.500 in
Temperature Rating -40 to 75/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 25
TC Connection Set Screw
Current 150 A
Number of Poles 1 Pole
Sub Brand Single Pin
Standard 12,4X,ANSI,CUL,NFPA 70,National Electric Code (NEC),UL,UL Enclosure Types 3R
Voltage null
