HWDK HBL15MGN SINGLE POLE SER 15 MA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$31.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL15MGN
North Coast Part # 1164659

Features

  • Insulgrip┬« Style Housing for Superior Gripping
  • Non-Conductive Retaining Screw locks contacts in place
  • Large Raised Alignment Arrow aids in the mating of devices

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 150 A
  • Each - Height: 0.400 in
  • Each - Length: 8.000 in
  • Each - Width: 6.000 in
  • Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
  • Performance: Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG
  • Show Add To ProjectList: Yes
  • Amperage Rating: 150 A
  • Color: Green
  • Standard: National Electric Code (NEC), ANSI/NFPA 70; UL and cUL Listed; UL Enclosure Types 3R, 4X, 12
  • Type: Plugs
  • Voltage Rating Description: 600V AC/DC

Certifications

  • EU RoHS Indicator: Contact Manufacturer

Overview

UPC 78358545836

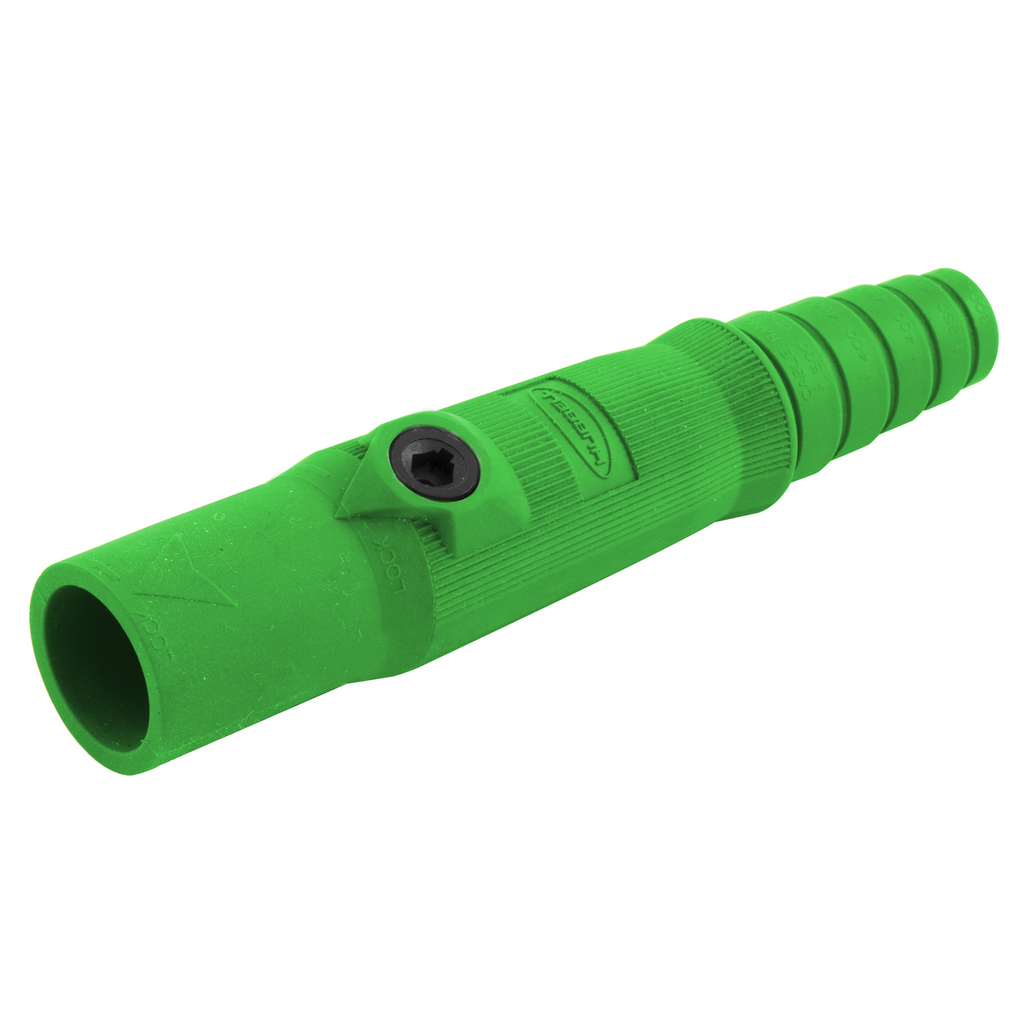

Item Long Description Single Pole Products, Male Plug, 150 Amp Series, Green
GTiN 00783585458366
Size Standard Sized
Color Green
Type Plugs
Material Brass and Elastomer
Cord Type SC/PPC
Applications High Ampacity Connections
Style Male
Wire Size 8-2 AWG
Wattage 90k Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Set Screw
Amperage 150 Amp
Number of Poles 1 Pole
Sub Brand Single Pole Products
Voltage 600 VAC
Environmental Conditions Indoor Dry unless protected by additional means
Number of Wires None
