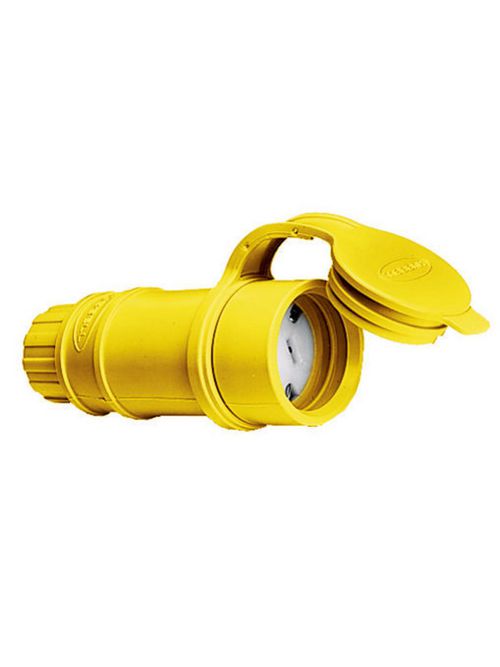

Hubbell Wiring Devices HBL15W47 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Straight Blade Connector
Product image thumbnail 0
Product image thumbnail 1
$47.89/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL15W47
North Coast Part # 74307

Features

  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord

Specifications

General

  • Application: Industrial/Commercial
  • Cord Range: 0.250"-0.655" (6.4-16.6)
  • Environmental Conditions: Watertight
  • Horsepower - Maximum: 0.50
  • Insulation: Insulated Body
  • Item Type: Elastogrip
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical: Current Interrupting: Certified for current interrupting at full rated current | Dielectric Voltage: Withstands 2,000V minimum | Mechanical: Product Identification:Terminal Accommodation: #18-#12 AWG. Stranded copper wire only. Terminal Identification: Terminals identified in accordance with UL 498 and CSA | Environmental: Flammability UL 94 HB or better | IP Suitability: IP55 | Operating Temperatures: Maximum continuous 75°C | minimum -40°C (w/o impact)
  • Series: Elastogrip
  • Style: Standard
  • Temperature Rating: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Type: Connector Body
  • UPC: 783585013022

Dimensions

  • Dimensions: 4.03 in x 1.76 in x 4.03 in
  • Display Size: Standard
  • Height: 4.03 in
  • Length: 4.03 in
  • Weight: 0.35 lb
  • Width: 1.76 in

Electrical Ratings

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related

  • Conductor Range: #18 AWG to #12 AWG
  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #12 AWG

Certifications and Compliance

  • Industry Standard(s): CSA Certified to C22.2 No. 42 File 280C | NEMA® WD-6 Compliant | UL Listed to UL498 File E1706
  • Nema Rating: 5-15R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501302
GTiN 00783585013022
Length 4.03 in
Width 1.76 in
Size 4.03 in x 1.76 in x 4.03 in
Color Yellow
Voltage 125 Volt
Type Standard
Material Composite
Number of Conductors 3
Conductor Size 14-12 AWG
Product Series Elastogrip
Applications Industrial/Commercial
Height 4.03 in
Weight 0.35 lb
Connection Type Screw Terminal
Temperature Rating -40 to 75 C without Impact
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
Number of Ports 2
TC Connection Screw Terminals
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Elastogrip
Standard C22.2 No. 42 File 280C,CSA,NEMA WD-6,UL,UL498 File E1706
Environmental Conditions Watertight
