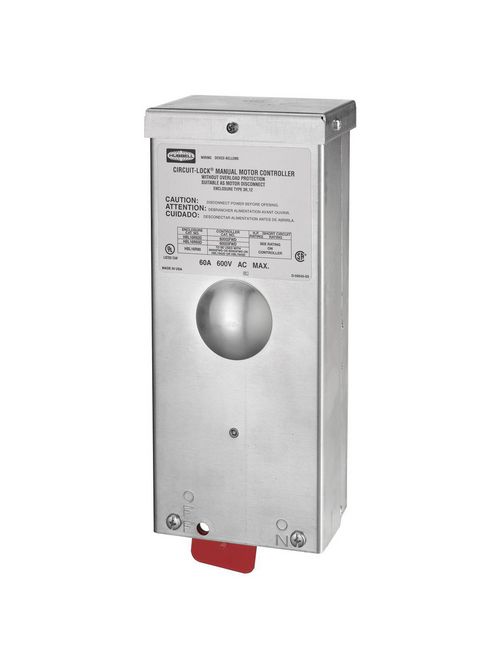

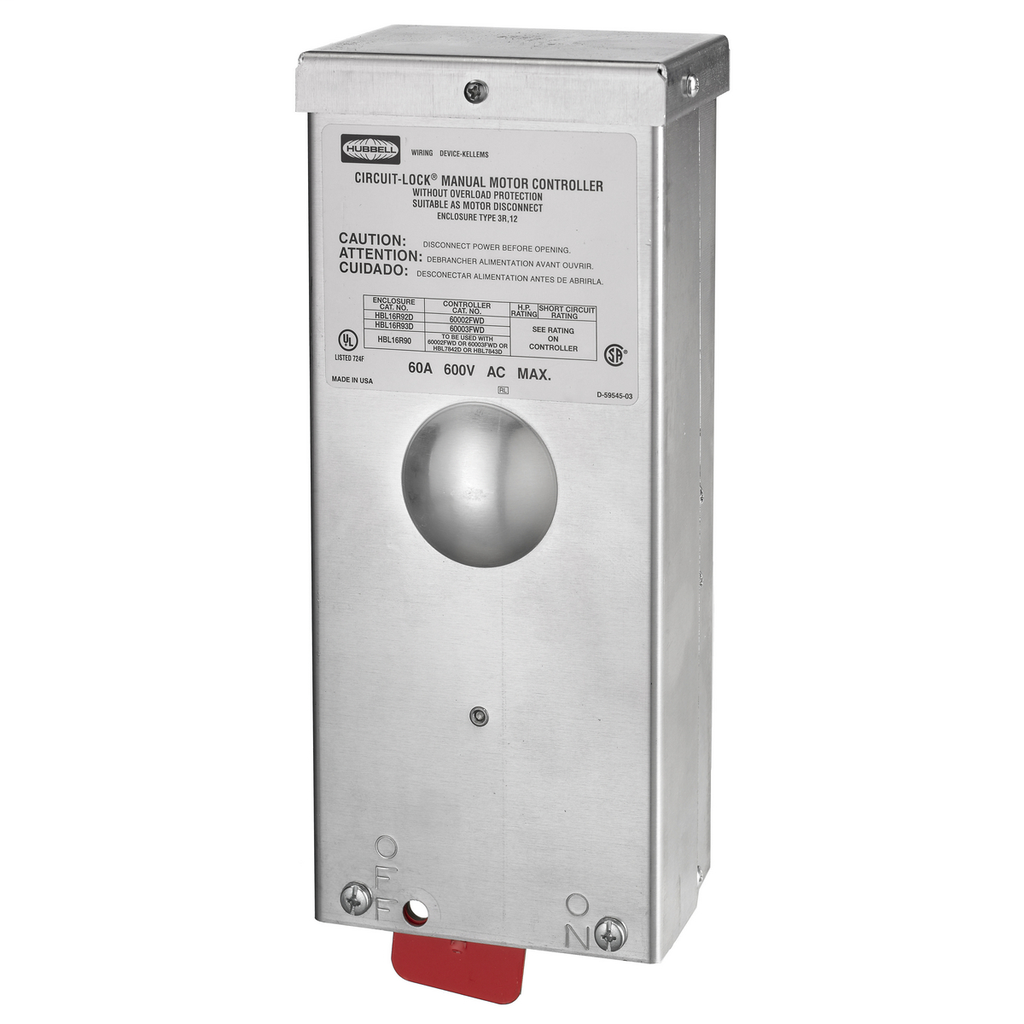

HWDK HBL16R92D 60A 600V 2P DISC SW
$257.53/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL16R92D
North Coast Part # 663896

Features

  • Front and back wiring with steel screws and copper terminals
  • Recessed wiring wells for finger safe environments
  • Thermoset body withstands high temperatures

Specifications

General

  • Application: Red Slide
  • Enclosure Type: NEMA 3R
  • Environmental Conditions: Indoor and Outdoor
  • Horsepower - Maximum: 20
  • Load Capacity: Inductive
  • Material - Mounting Hardware: Screw Mounting
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Cycles: 10,000 Cycles Minimum
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute | Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - UL94HB/VO | Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact | Mechanical - Mechanical Life - Min. 10,000 minimum cycles | Mechanical - Switch Rating - 25 inch pounds | Mechanical - Terminal Accommodations - #10 AWG Max | Mechanical - Terminal Torque - 20 inch pounds | Mechanical - Wire Type - Solid and stranded copper wire only
  • Series: Non-Fused
  • Style: Standard Duty
  • Type: Disconnect Switches
  • UPC: 783585202754

Dimensions

  • Dimensions: 10.11 in x 4.4 in x 3.3 in
  • Display Size: Standard Sized Product
  • Height: 3.3 in
  • Length: 10.11 in
  • Weight: 2.2 lb
  • Width: 4.4 in

Electrical Ratings

  • Amperage Rating: 60 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: 2,200V AC minimum for 1 minute
  • Phase: Single Phase
  • Wattage: 36000

Certifications and Compliance

  • Industry Standard(s): CSA-C22.2 No.14 Industrial Control File LR-46186 | UL 508, Industrial Control File #E70402

Logistics

  • Carton Quantity: 4

Overview

UPC 78358520275
GTiN 00783585202754
Length 10.11 in
Width 4.4 in
Size Standard Sized Product
Type General Duty, Enclosed, Standard
Product Series Non,Fused
Applications For Motor Starting Without Overload Protection
Mounting Type Screw
Height 3.3 in
Weight 2.2 lb
Connection Type Pressure Screw Terminal
Wattage 36000 W
Temperature Rating -40 C
Family Brand Name Hubbell Wiring Device Kellems
Number of Phases Single
Enclosure Type Metallic NEMA 3R
Carton Qty 4
Power Rating 36,000 W
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 2 Pole
Sub Brand Manual Motor Controllers
Standard Industrial Control File #E70402,CSA-C22.2 No.14 Industrial Control File LR-46186,UL 508
Voltage null
