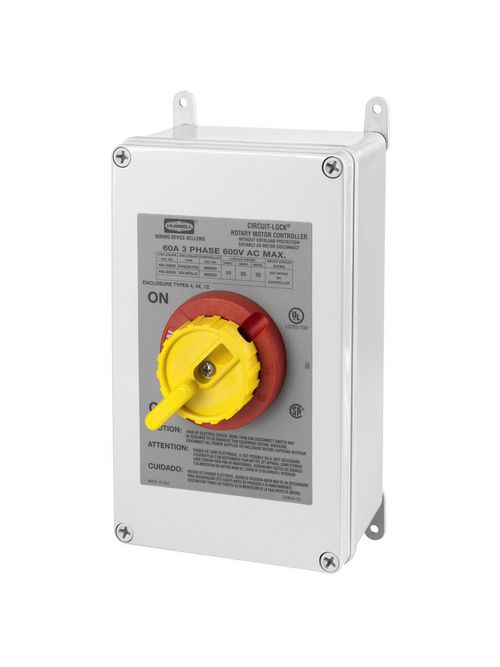

HCI HBL16X63D 60A 600V 3P RTRY DISC
$469.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL16X63D
North Coast Part # 668244

Features

  • Front and back wiring with steel screws and copper terminals
  • Recessed wiring wells for finger safe environments
  • Thermoset body withstands high temperatures

Specifications

General

  • Application: Rotary
  • Enclosure Type: NEMA 4X
  • Environmental Conditions: Indoor and Outdoor
  • Load Capacity: Inductive
  • Material - Mounting Hardware: Screw Mounting
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Cycles: 10,000 Cycles Minimum
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute | Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load | Electrical - Max. Working Voltage - 600V AC RMS | Environmental - Flammability - UL94HB/VO | Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact | Mechanical - Mechanical Life - Min. 10,000 minimum cycles | Mechanical - Switch Rating - 25 inch pounds | Mechanical - Terminal Accommodations - #10 AWG Max | Mechanical - Terminal Torque - 20 inch pounds | Mechanical - Wire Type - Solid and stranded copper wire only
  • Series: Non-Fused
  • Style: Standard Duty
  • Type: Disconnect Switches
  • UPC: 783585202785

Dimensions

  • Display Size: Standard Sized Product

Electrical Ratings

  • Amperage Rating: 60 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 60 A
  • Current Rating: 60 A
  • Dielectric Strength: 2,200V AC minimum for 1 minute
  • Phase: Three Phase
  • Wattage: 36000

Certifications and Compliance

  • Industry Standard(s): CSA-C22.2 No.14 Industrial Control File LR-46186 | UL 508, Industrial Control File #E70402

Overview

UPC 78358520278
GTiN 00783585202785
Length 10.400 in
Width 8.500 in
Size Standard Sized Product
Type Enclosed, Standard, Rotary
Product Series Fused,Non
Applications For Motor Starting Without Overload Protection
Mounting Type Screw
Height 6.300 in
Connection Type Pressure Screw Terminal
Wattage 36000 W
Temperature Rating -40 C
Family Brand Name Hubbell Wiring Device Kellems
Number of Phases Three
Enclosure Type Non-Metallic NEMA 4X
Housing Material Plastic
Power Rating 36,000 W
TC Connection Pressure Screw Terminals
Current 60 A
Number of Poles 3 Pole
Sub Brand Manual Motor Controllers
Standard UL 508,Industrial Control File #E70402,CSA-C22.2 No.14 Industrial Control File LR-46186
Voltage null
