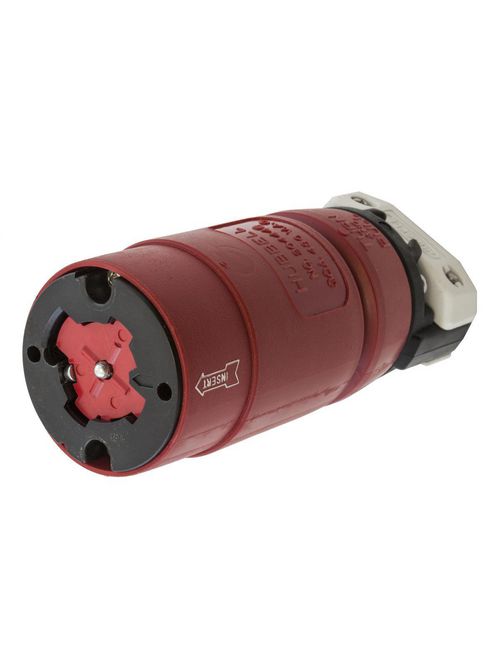

Hubbell Wiring Devices HBL20444B 30 Amp 480 Volt 3-Pole 4-Wire Red Locking Connector Body
Product image thumbnail 0
Product image thumbnail 1
$299.44/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL20444B
North Coast Part # 210851

Features

  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust

Specifications

General

  • Application: Heavy Duty Industrial
  • Color: Red
  • Cord Range: 0.70"-1.20" (17.78-30.5)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Item Type: 30A Grounding Hubbellock® Female Connector
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage Withstand - 2,000V minimum | Environmental - Flammability - UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors | Environmental - Moisture Resistance - IP30 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #10 AWG - #6 AWG stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Connector Body
  • UPC: 783585017433

Dimensions

  • Dimensions: 6 in x 2.44 in x 2.44 in
  • Display Size: Standard
  • Height: 2.44 in
  • Length: 6 in
  • Weight: 1.05 lb
  • Width: 2.44 in

Electrical Ratings

  • Amperage Rating: 30 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 30 A
  • Current Rating: 30 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Voltage Rating: 480 VAC
  • Voltage Rating Description: 480 VAC

Conductor Related

  • Cable Range: 0.700 - 1.200 in
  • Number Of Wires: 4-Wire
  • Wire Size: #10 AWG to #6 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Listed to UL 498

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501743
GTiN 00783585017433
Length 6 in
Width 2.44 in
Size 6 in x 2.44 in x 2.44 in
Color Red
Voltage 480 Volt
Type Standard, Non-Grounding
Material Nylon
Number of Conductors 3
Applications For Heavy Duty Industrial
Height 2.44 in
Weight 1.05 lb
Temperature Rating -40 to 75 C/-25 to 75 C
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Pressure Screw Terminal
Current 30 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Hubbell-Lock
Conductor Size 12-8 AWG
Standard CSA C22.2 No.42,UL 498
Connection Type Pressure Screw Terminal
Number of Ports 3
Environmental Conditions Indoor Dry Unless Protected By Additional Means
