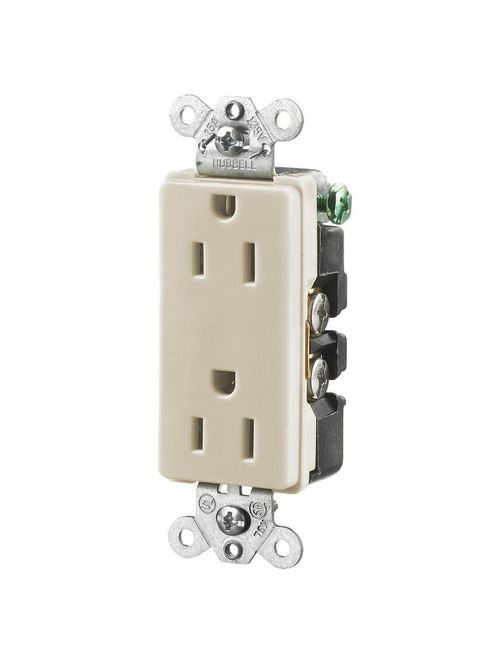

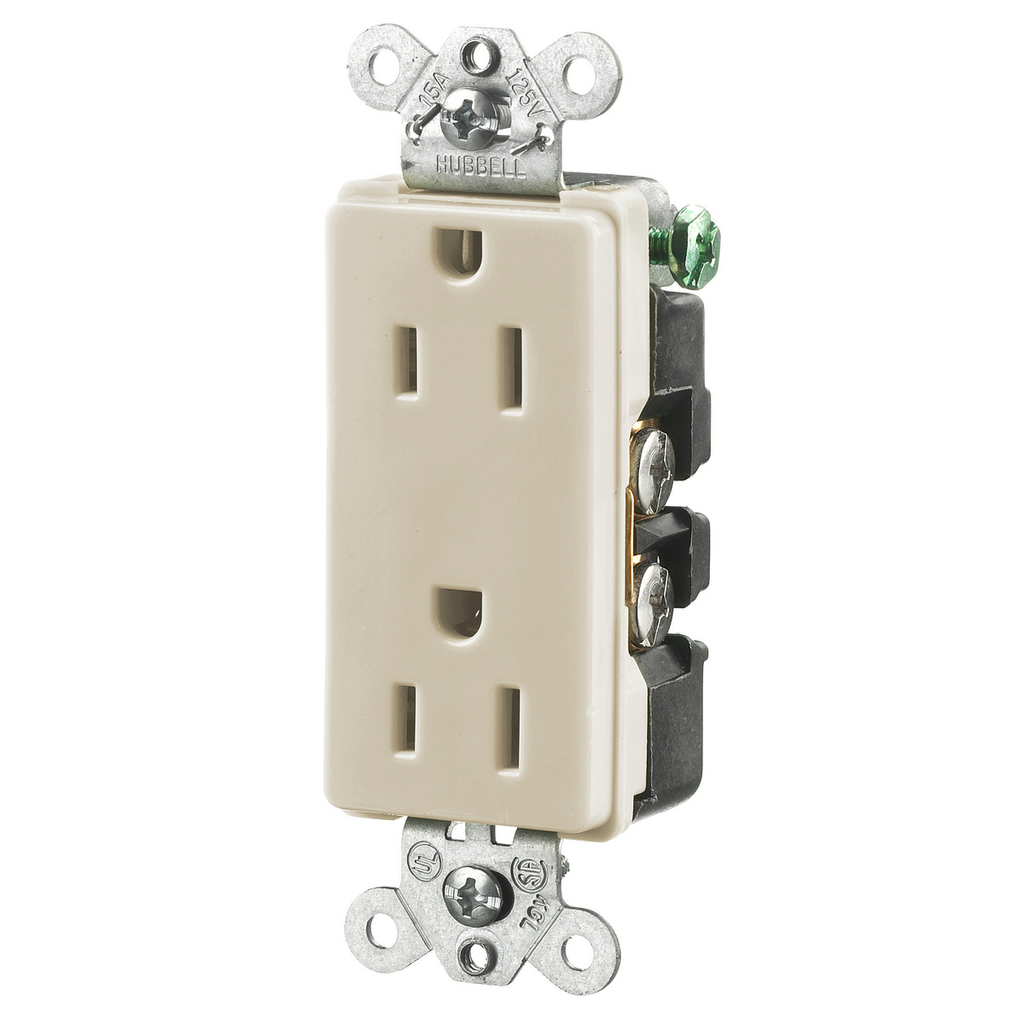

HWDK HBL2152AL RECEP 15A 120V STYLE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$20.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2152AL
North Coast Part # 68435

Features

  • Aesthetic Style Line decorator design
  • Triple wipe contacts
  • 15A
  • 125V
  • 2 Pole
  • 3 Wire Grounding

Specifications

  • Product Type: Flush-receptacles
  • Color: Almond
  • Receptacle Style: Duplex
  • Face Shape: Rectangular
  • Standard: NEMA
  • Amperage: 15A
  • Voltage: 125V
  • Poles and Wires: 2 Pole, 3-Wire Grounding
  • Wiring Method: Back and Side
  • Hospital Grade ?: No
  • Receptacle Grade: Style Line
  • Face Style: Smooth
  • Other Available Colors: Brown, Almond, Black, Gray, Ivory, Office White, White
  • NEMA No.: 5-15R
  • Horsepower: 0.5
  • Type: 2 Pole, 3 Wire, Grounding
  • Rating: 15A, 125V
  • Certification: UL Listed, File E2186, Guide RTRT, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
  • Terminal Screw Material: #8-32 Brass /Ni plated for neutral
  • Ground Screw Material: #8-32 Brass, Multiple Drive (Green)
  • Top Material: Nylon
  • Base Material: Reinforced PET
  • Power Contacts Material: .037" (.9) Phosphor Bronze
  • Mounting Strap Material: .050" (1.3) Steel Galvanized
  • Auto Ground Clip Material: Stainless Steel
  • Mounting Screw Material: Steel-Zinc Plated
  • Dielectric Voltage: Withstands 2,000V minimum.
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Temperature Rise: Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
  • Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
  • Product Identification: Ratings are a permanent part of the device.
  • Flammability: Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
  • Operating Temperatures: Maximum continuous 75°C, minimum -40°C (w/o impact).
  • Weight in LBs: 0.400

NEMA Configuration

Color

Product Type

Ordering Information

  • Device Color: Almond

Listings

  • UL Listed to UL498 File No. E2186
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA WD-6 Compliant

Performance

Electrical

  • Current Interrupting: Certified for current interrupting at full rated current
  • Dielectric Voltage: Withstands 2,000V minimum

Mechanical

  • Product Identification: Ratings are a permanent part of the device
  • Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only
  • Terminal Identification: Terminals identified in accordance with UL 498 and CSA

Environmental

  • Flammability: Top: UL 94V-2, Base: UL 94V-0
  • Operating Temperatures: Maximum continuous 75°C; minimum -40°C (w/o impact)

Product Drawings / Installation Instructions

Instructions

Product

Drawings

Overview

UPC 78358552095
Item Long Description Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial /Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Almond, Single Pack.
GTiN 00783585520957
Length 3.28 in
Width 1.36 in
Size Standard
Color Almond
Operating Temperature -40 C
Voltage 125 Volt
Type Decorator
Material Thermoplastic
Applications For Heavy Duty Applications
Height 1.03 in
Weight 0.4 lb
Style Style Line Decorator
Wire Size 14-10 AWG
Wattage 1875 Watt
Family Brand Name Hubbell Wiring Device Kellems
NEMA 5-15R
Number of Phases 1 Phase
TC Connection Back and Side Wired
Amperage 15 Amp
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Straight Blade
Conductor Size 14-12 AWG
Mounting Type Screw
Grade Commercial/Industrial
Connection Type Back and Side Wired
Grounding Self
Base Material PBT
Face Material Nylon
Wire Count 3
