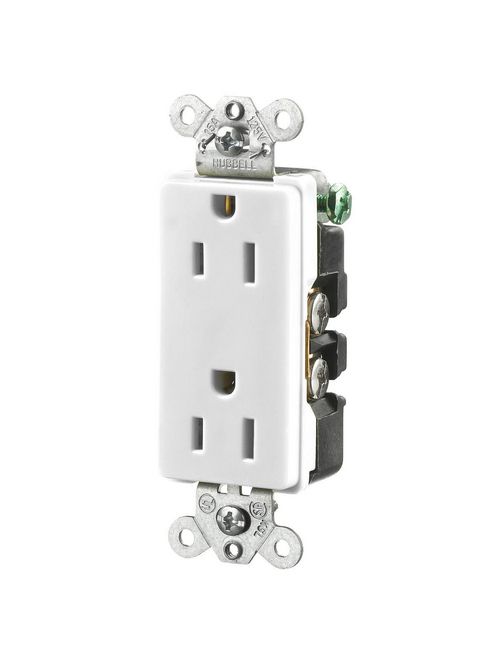

HWDK HBL2152WA STYLE DUP RCPT, 15A

Features

• Aesthetic Style Line® decorator design
• Triple wipe contacts

Specifications

General

• Application: Heavy Duty Style Line Decorator Duplex
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 0.5
• Item Type: Style Line Decorator Duplex
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 | Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) | Mechanical - Product Identification - Ratings are a permanent part of the device | Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Series: Heavy Duty
• Style: Style Line Decorator
• Type: Standard Duplex
• UPC: 783585060408

Dimensions

• Dimensions: 3.28 in x 1.36 in x 1.03 in
• Display Size: Standard Sized Product
• Height: 1.03 in
• Length: 3.28 in
• Weight: 0.2 lb
• Width: 1.36 in

Electrical Ratings

• Amperage Rating: 15 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related

• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #10 AWG

Certifications and Compliance

• Industry Standard(s): Certified to CSA 22.2, No. 42 File 285 | Fed. Spec. W-C-596 | NEMA® WD-6 Compliant | UL Listed to UL498 File No. E2186
• Nema Rating: 5-15R

Logistics

• Carton Quantity: 10
