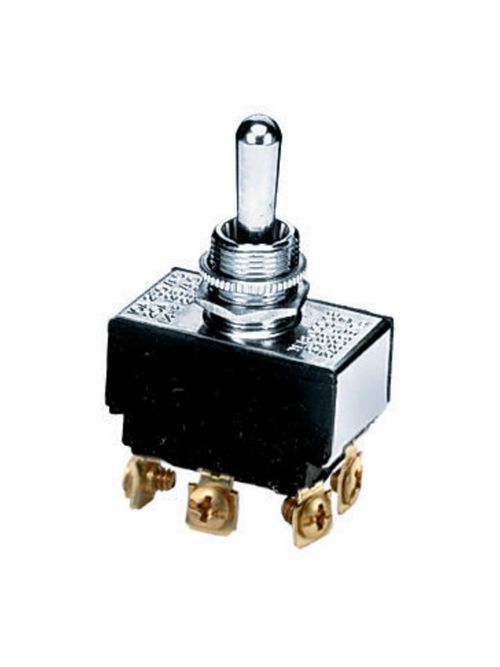

Hubbell Wiring Devices HBL223 1-1/2 Hp 20 Amp 125 VAC DPDT Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
$15.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL223
North Coast Part # 161126

Features

  • Nickel Plated for Corrosion Resistance

Specifications

General

  • Action: DPDT
  • Color: Metallic
  • Horsepower - Maximum: 1.5
  • Item Type: Panel Mount and Bat Handle Switch
  • Mounting Method: Panel Mount
  • Number Of Poles: Double Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
  • Series: Double Pole/Double Throw
  • Style: Screw Terminal
  • Type: General Purpose
  • UPC: 783585017136

Dimensions

  • Dimensions: 2.27 in x 0.76 in x 1.3 in
  • Height: 1.3 in
  • Length: 2.27 in
  • Weight: 0.1 lb
  • Width: 0.76 in

Electrical Ratings

  • Amperage Rating: 10/20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 10/20 A
  • Voltage Rating: 250/125 VAC

Certifications and Compliance

  • Industry Standard(s): UL Listed

Logistics

  • Carton Quantity: 10

Overview

UPC 78358501713
GTiN 00783585017136
Length 2.27 in
Width 0.76 in
Size Standard Sized
Color Brown Housing, Chrome Element
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 125 Volt
Type Bat Handle
Material Thermoplastic
Product Series Double Pole/Double Throw
Applications 2-Circuit On/Off/On
Height 1.3 in
Weight 0.1 lb
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Screw Terminal
Actuator Toggle
Contact Configuration DPDT
Current 10/20 A
Contact Rating As Indicated
Number of Poles 2 Pole
Interrupt Rating 10A 250V AC, 20A 125V AC
Indicator Comes with Indicator Plate
Action Center Off
Sub Brand Panel Mount Switches
Standard UL
