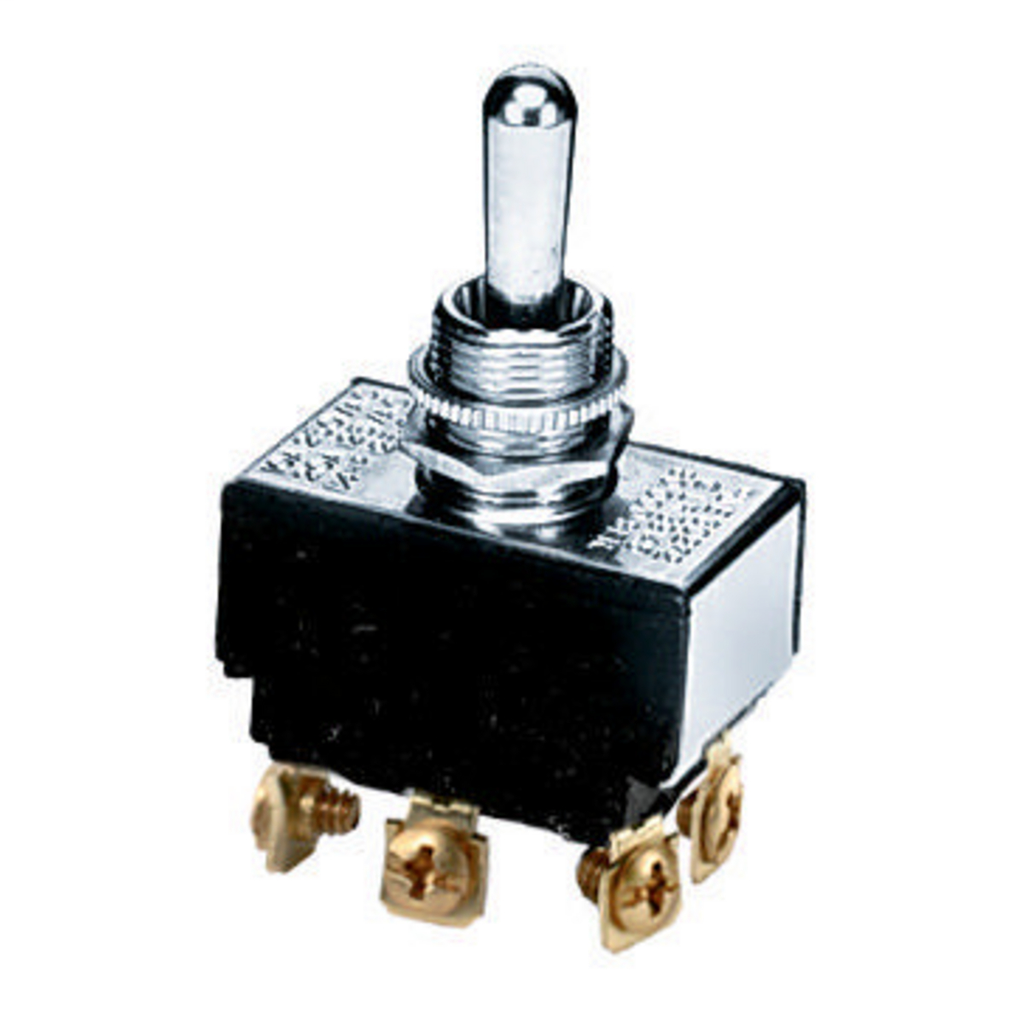

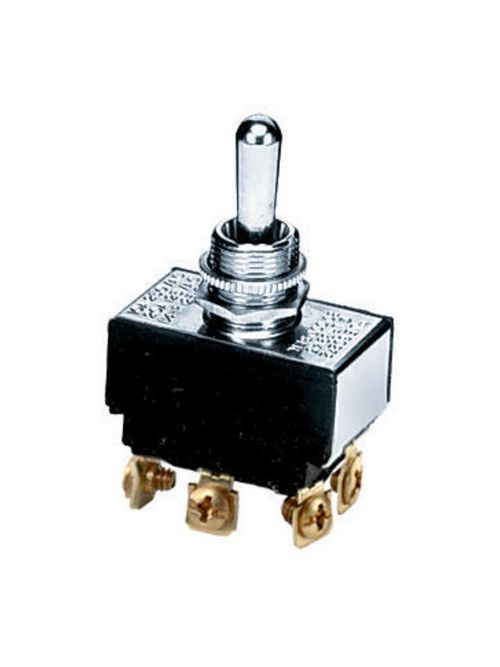

HCI HBL223SP PANEL SW, DPDT, CTR OF
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL223SP
North Coast Part # 1272528

Features

  • Nickel Plated for Corrosion Resistance

Specifications

  • Country of Origin: CN
  • Current / Amperage Rating: 10/20 A
  • Dimensions: 2.27 in x 0.76 in x 1.3 in
  • Each - Height: 4.000 in
  • Each - Length: 4.120 in
  • Each - Width: 1.620 in
  • Height: 1.3 in
  • Horsepower - Maximum: 1.5
  • Industry Standard(s): UL Listed
  • Length: 2.27 in
  • Mounting Method: Panel Mount
  • Performance: Environmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
  • Show Add To ProjectList: Yes
  • Amperage Rating: 10/20 A
  • Color: Metallic
  • Number of Poles: Double Pole
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Size: 2.27 in x 0.76 in x 1.3 in
  • Standard: UL Listed
  • Type: General Purpose
  • Voltage Rating: 250/125 VAC
  • Width: 0.76 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358501714
Item Long Description Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Double Pole Double Throw Center Off 10A 250V/10A 125V, Spade
GTiN 00783585017143
Length 2.27 in
Width 0.76 in
Size Standard Sized
Color Metallic
Operating Temperature Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage 125 Volt
Type Standard, 3-Way, 3-Position
Material Metallic Handle, Thermoplastic
Product Series Double Pole/Double Throw
Applications 2-Circuit On/Off/On
Height 1.3 in
Grade Commercial
Weight 0.1 lb
Wattage 2500 Watt
Family Brand Name Hubbell Wiring Device Kellems
TC Connection Spade Terminal
Actuator Bat Handle
Contact Configuration Three Position
Current 10/20 A
Blade Dimensions 20.3 mm D
Contact Rating As Indicated
Number of Poles 2 Pole
Interrupt Rating 10A 250V AC, 20A 125V AC
Indicator Comes with Indicator Plate
Action 2-Circuit On/Off/On
Sub Brand Panel Mount Switches
Standard UL
