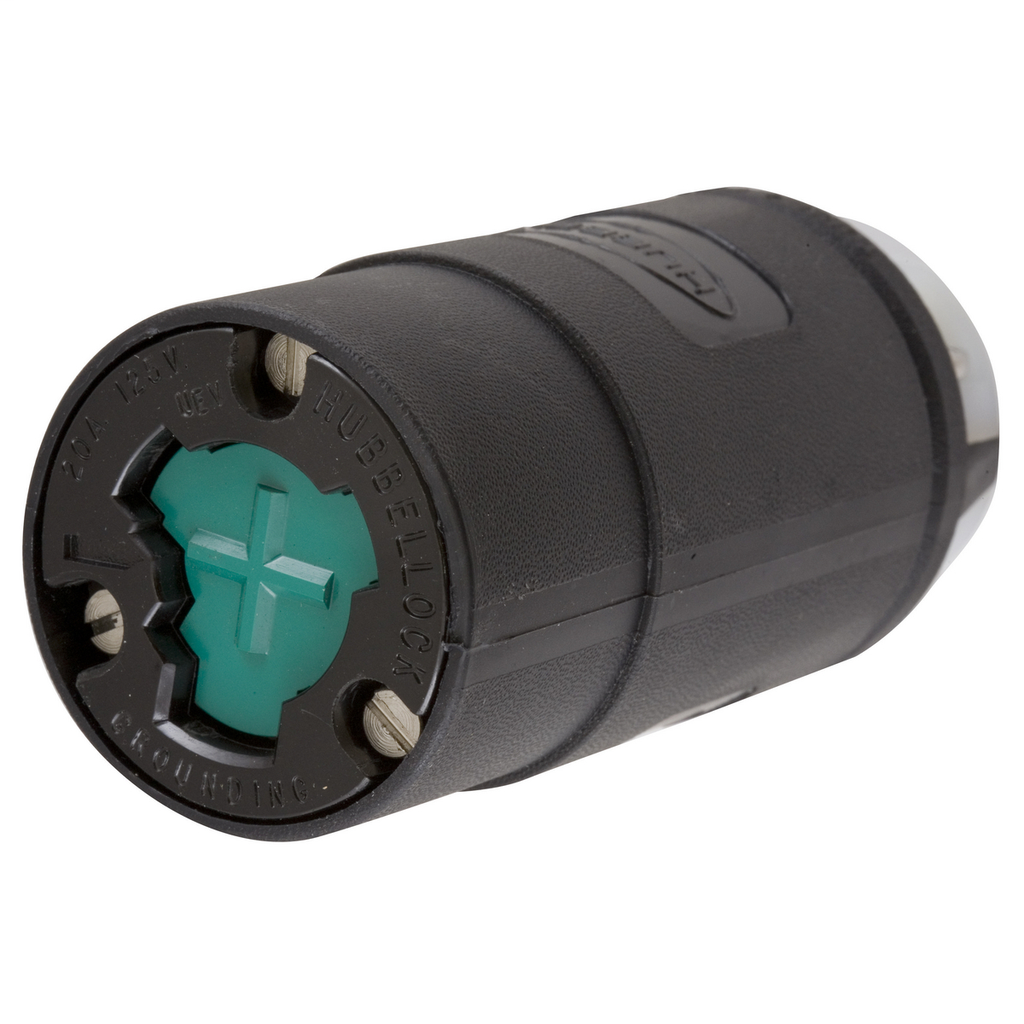

HWDK HBL23032B H/LOCK CONN, 2P3W, 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$195.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL23032B
North Coast Part # 339611

Features

  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
  • Standard Product

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 20 A
  • Dimensions: 1.63 in x 1.72 in x 3.56 in
  • Each - Height: 1.920 in
  • Each - Length: 3.850 in
  • Each - Width: 2.170 in
  • Height: 3.56 in
  • Industry Standard(s): Certified to CSA C22.2 No.42;Listed to UL 498
  • Length: 1.63 in
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage Withstand - 2,000V minimum;Environmental - Flammability - HB or better;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #12 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Show Add To ProjectList: Yes
  • Amperage Rating: 20 A
  • Application: Heavy Duty Industrial
  • Color: Black
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Insulation: Insulated Body
  • Number of Poles: 2-Pole
  • Size: 1.63 in x 1.72 in x 3.56 in
  • Special Features: Standard Product
  • Standard: Certified to CSA C22.2 No.42; Listed to UL 498
  • Type: Connector Body
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V
  • Width: 1.72 in

Certifications

  • EU RoHS Indicator: No

Overview

UPC 78358501755
Item Long Description Locking Devices, Hubbellock, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, Nylon housing, Thermoset interior, Non-NEMA, Screw Terminal, Black and White
GTiN 00783585017556
Length 1.63 in
Width 1.72 in
Size 1.63 in x 1.72 in x 3.56 in
Color Black
Voltage 125 Volt
Type Connector Body
Material Thermoplastic Interior
Number of Conductors 3-Wire Grounding
Conductor Size 14-12 AWG
Applications Heavy Duty Industrial
Mounting Type Cord
Height 3.56 in
Weight 0.35 lb
Temperature Rating -40 to 75 C without Impact, -25 to 75 C with Impact
Family Brand Name Hubbell Wiring Device Kellems
Grounding Grounding
TC Connection Pressure Screw Terminal
Current 20 A
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Hubbell-Lock
Standard CSA C22.2 No.42,UL 498
Environmental Conditions Indoor Dry Unless Protected By Additional Means
