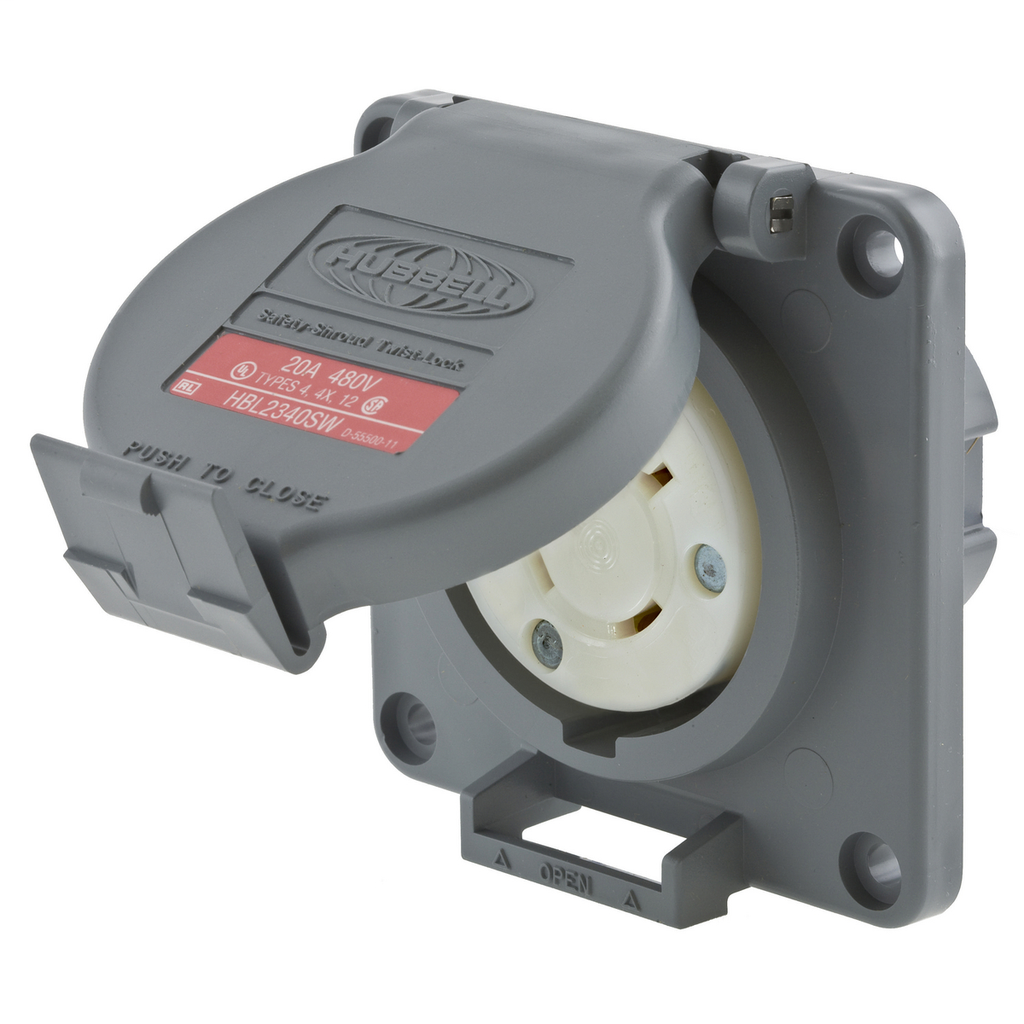

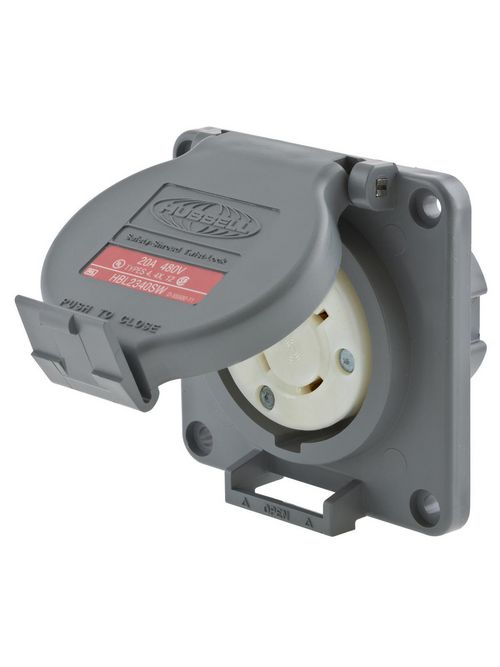

Hubbell Wiring Devices HBL2340SW Watertight Safety-Shroud 20 Amp 480 Volt Gray L8-20R Locking Device Receptacle
Product image thumbnail 0
Product image thumbnail 1
$151.87/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2340SW
North Coast Part # 214386

Features

  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use

Specifications

General

  • Application: Heavy Duty Industrial Shrouded Watertight
  • Color: Gray
  • Environmental Conditions: Watertight
  • Item Type: 20A Watertight Safety-Shroud® Receptacle
  • Listings: UL 498 | Fed.Spec. W-C-596 | CSA C22.2 No.42 | UL Listed | CSA Certified to Type 4, 4X and Type 12
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical-Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 | Environmental - Flammability - V0 per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C | Minimum -40°C (w/o impact)
  • UPC: 783585313146

Dimensions

  • Dimensions: 3.75 in x 3.75 in x 2.6 in
  • Display Size: Standard Sized Product
  • Height: 2.6 in
  • Length: 3.75 in
  • Width: 3.75 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 480 VAC
  • Wattage: 9600 W

Conductor Related

  • Number Of Wires: 3-Wire Grounding
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): UL Listed, CSA Certified To Type 4, 4X And Type 12
  • Nema Rating: L8-20R

Logistics

  • Carton Quantity: 5

Categories

Overview

UPC 78358531314
GTiN 00783585313146
Length 3.75 in
Width 3.75 in
Size 3.75 in x 3.75 in x 2.6 in
Color Gray
Voltage 480 Volt
Type Shrouded, Heavy Duty
Material Thermoplastic
Conductor Size 12-10 AWG
Applications Heavy Duty Industrial
Mounting Type Screw
Height 2.6 in
Grade Industrial
Wire Size 16 AWG-8 AWG
Wattage 9600 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 5
TC Connection Screw Terminals
Current 20 A
Environmental Conditions Watertight
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Twist-Lock
Standard 4X,CSA,Type 12,Type 4,UL
Dielectric Strength Withstands 2,000V minimum
