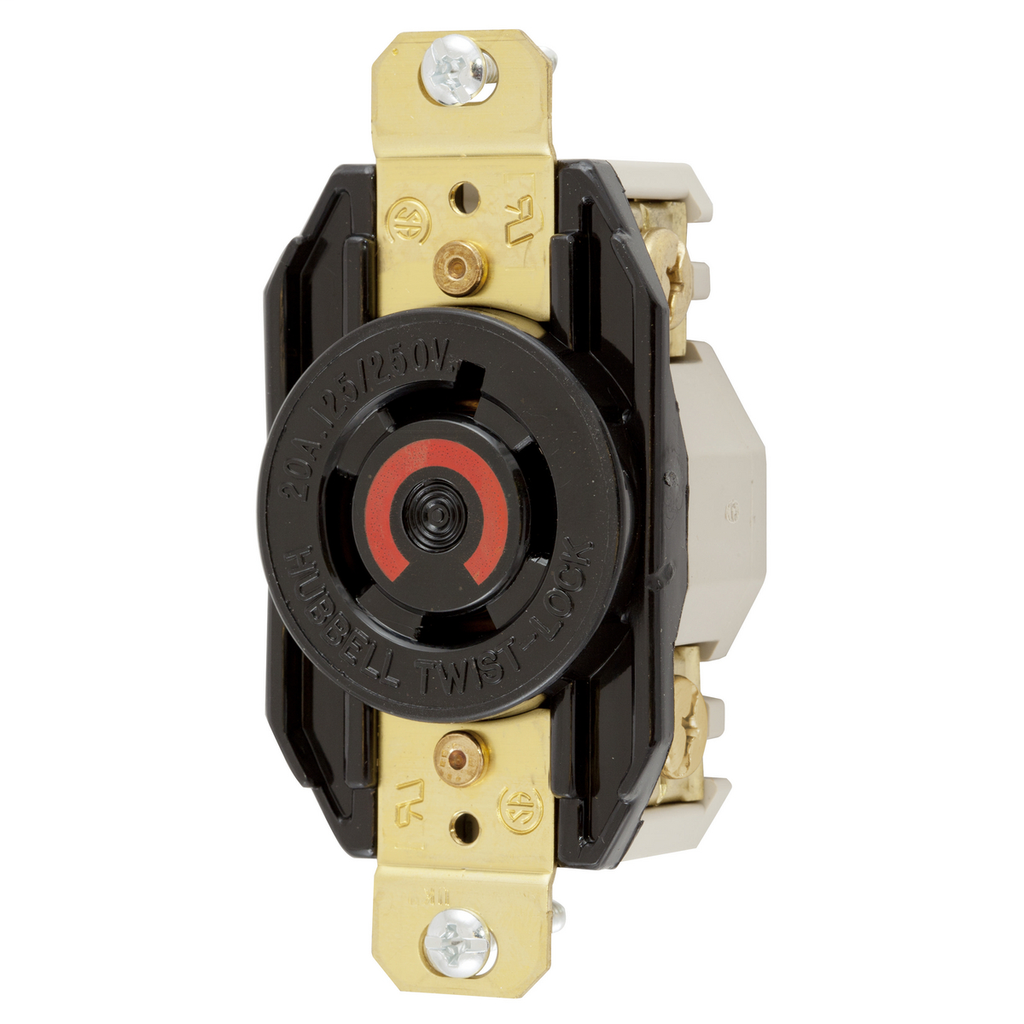

HWDK HBL2410RT CAT#HBL2410, MOD RIN
$63.28/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL2410RT
North Coast Part # 550886

Features

  • Accepts ring terminals
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

Specifications

General

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 2 (1)
  • Item Type: 20A Single Flush Receptacles
  • Material: Nylon
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Single Flush Receptacle
  • UPC: 783585234434

Dimensions

  • Dimensions: 3.28 in x 1.7 in x 1.23 in
  • Display Size: Standard Sized Product
  • Height: 1.23 in
  • Length: 3.28 in
  • Weight: 0.30 lb
  • Width: 1.7 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Ring Terminal
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC
  • Wattage: 5000 W

Conductor Related

  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Certified to CSA C22.2 No.42 | Fed.Spec. W-C-596 | Listed to UL 498
  • Nema Rating: L14-20R

Logistics

  • Carton Quantity: 10

Overview

UPC 78358523443
GTiN 00783585234434
Length 3.28 in
Width 1.7 in
Size 3.28 in x 1.7 in x 1.23 in
Color Black
Voltage 125 Volt
Type Single Flush Receptacle
Material Nylon
Applications Heavy Duty Industrial
Height 1.23 in
Weight 0.30 lb
Wire Size 16 AWG-8 AWG
Wattage 5,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Ring Terminal
Current 20 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock Devices
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Dielectric Strength Withstands 2,000V minimum
Environmental Conditions Indoor Dry Unless Protected By Additional Means
