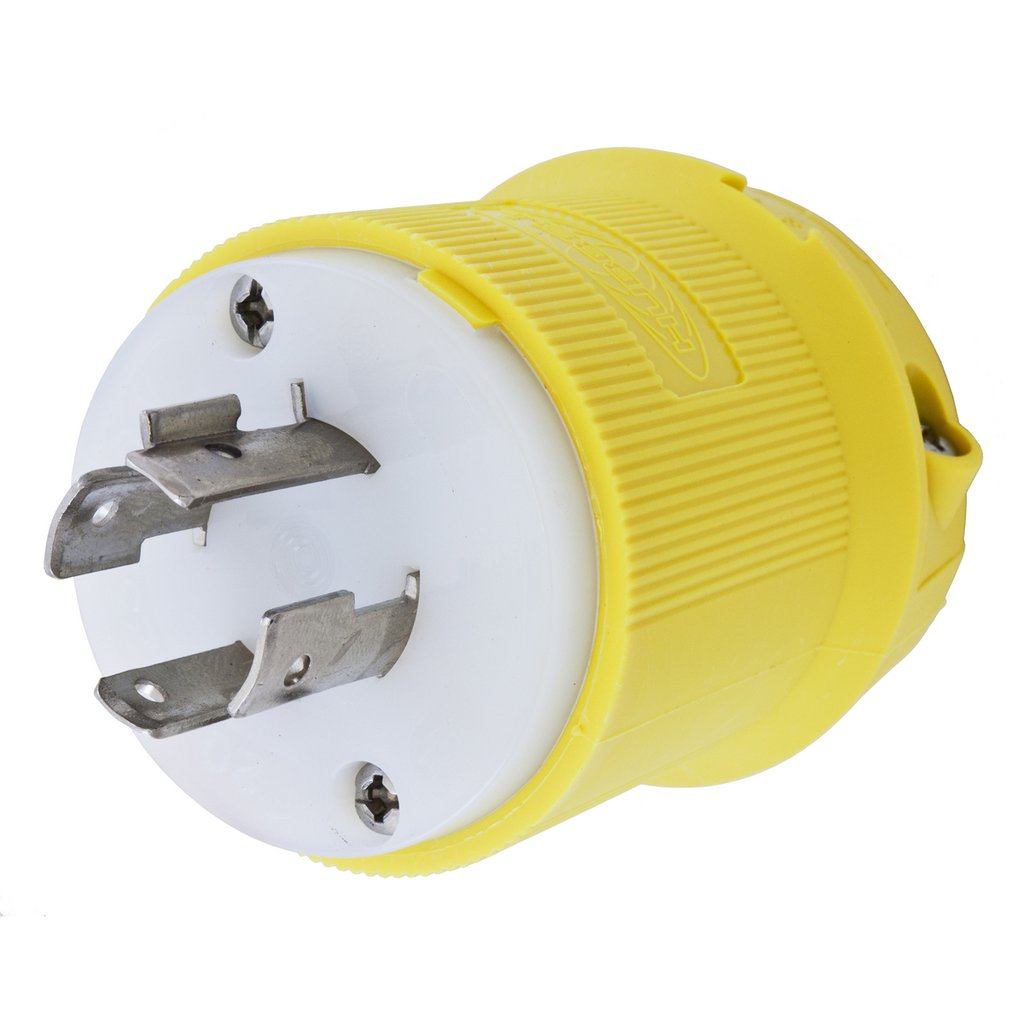

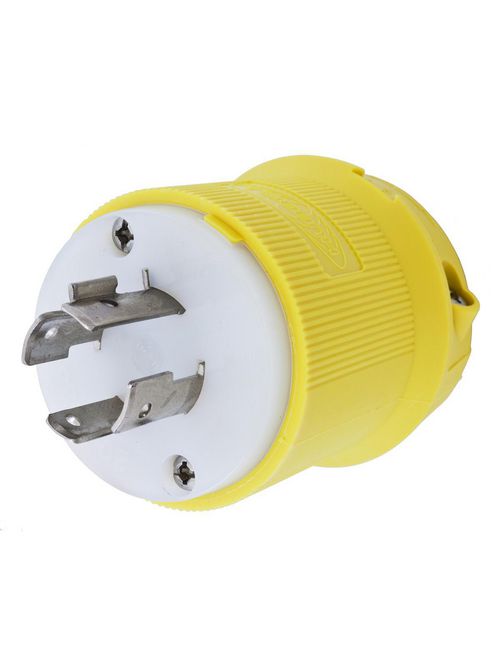

HCI HBL24CM11 LKG PLUG, CM, 20A 125
$46.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell / Kellems
Mfg Catalog # HBL24CM11
North Coast Part # 210449

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.

Specifications

General

  • Application: Extra Heavy Duty Industrial
  • Color: Yellow
  • Cord Range: 0.350"-1.150" (9-29)
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 2 (1)
  • Item Type: 20A Corrosion Resistant Insulgrip® Plug
  • Material: Nylon
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 3-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current | Electrical - Dielectric Voltage - Withstands 2,000V minimum | Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 | Environmental - Moisture Resistance - IP20 Suitability | Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) | Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only | Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Type: Plugs
  • UPC: 783585038476

Dimensions

  • Dimensions: 2.33 in x 2.33 in x 2.75 in
  • Display Size: Standard Sized
  • Height: 2.75 in
  • Length: 2.33 in
  • Weight: 0.30 lb
  • Width: 2.33 in

Electrical Ratings

  • Amperage Rating: 20 A
  • Connectivity: Pressure Terminal Screws
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125/250 VAC
  • Voltage Rating Description: 125/250 VAC
  • Wattage: 5000 W

Conductor Related

  • Cable Range: 0.350 - 1.150 in
  • Cord Type: All Listed Portables
  • Number Of Wires: 4-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications and Compliance

  • Industry Standard(s): Listed to UL 498 | Fed.Spec. W-C-596 | Certified to CSA C22.2 No.42
  • Nema Rating: L14-20P

Logistics

  • Carton Quantity: 10

Overview

UPC 78358503847
GTiN 00783585038476
Length 2.33 in
Width 2.33 in
Size Standard Sized Product
Color Yellow
Voltage 250 Volt
Type Male
Material Nylon
Cord Type Portable
Applications Power Connection
Height 2.75 in
Weight 0.30 lb
Wire Size 14-10 AWG
Wattage 5,000 Watt
Family Brand Name Hubbell Wiring Device Kellems
Carton Qty 10
TC Connection Terminal Screws
Current 20 A
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Twist-Lock
Conductor Size 14-10 AWG
Mounting Type Cord
Standard CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Environmental Conditions Corrosion-Resistant
